In-Sight 3800 Utilities
| Utility Button | Utility Name | Description | Minimum User Access Level |
|---|---|---|---|
|
|

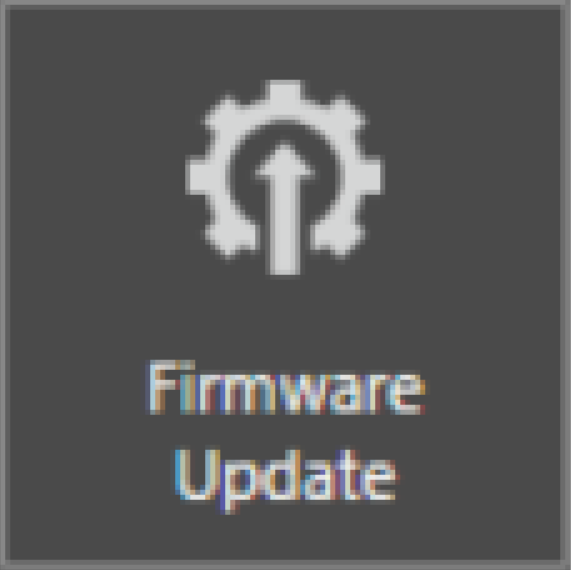

Firmware Update | The Firmware Update utility helps you through the firmware update process. For more information, see Firmware Update. | Full |
|
|

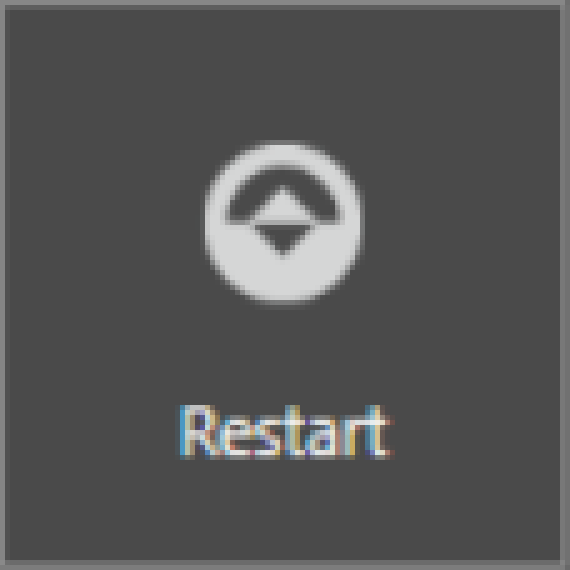

Restart | The Restart utility remotely restarts an In-Sight vision system. For more information, see Restart. | Elevated |
|
|

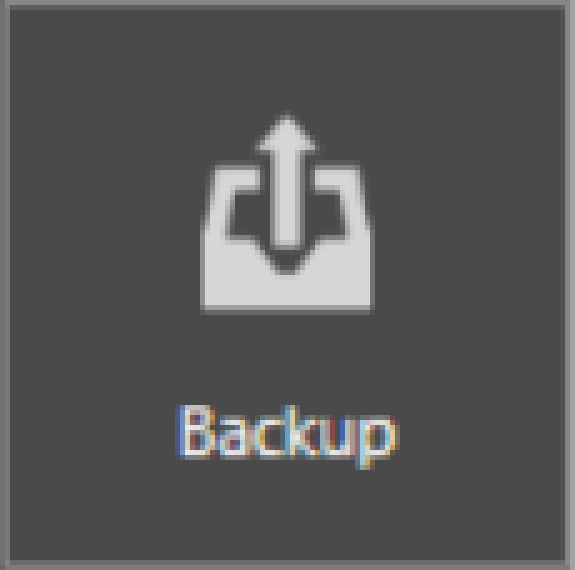

Backup | The Backup utility backs up the selected vision system(s). For more information, see Backup. | Elevated |
|
|

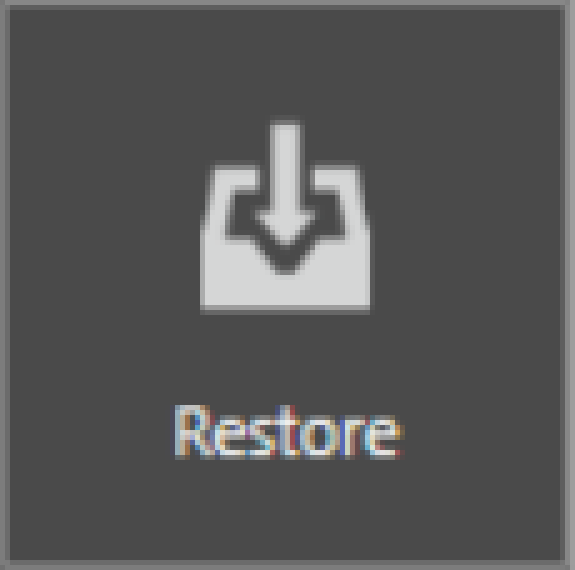

Restore | The Restore utility restores the selected In-Sight vision system. For more information, see Restore. | Full |
|
|

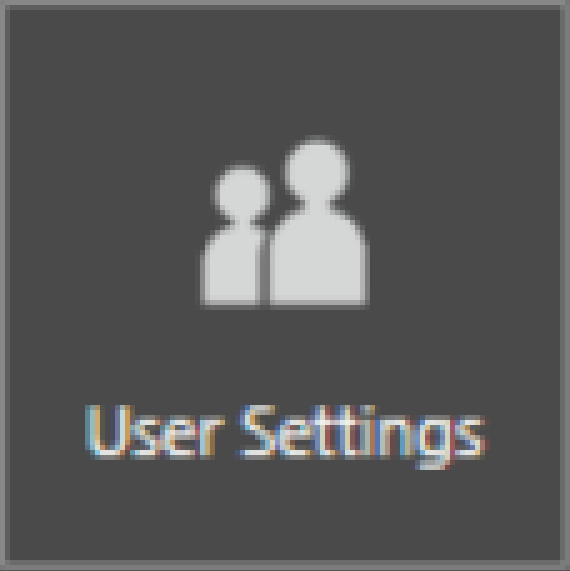

User Settings | The User Settings utility allows you to configure users and their access capabilities on an In-Sight vision system. For more information, see User Settings. | Full |
|
|

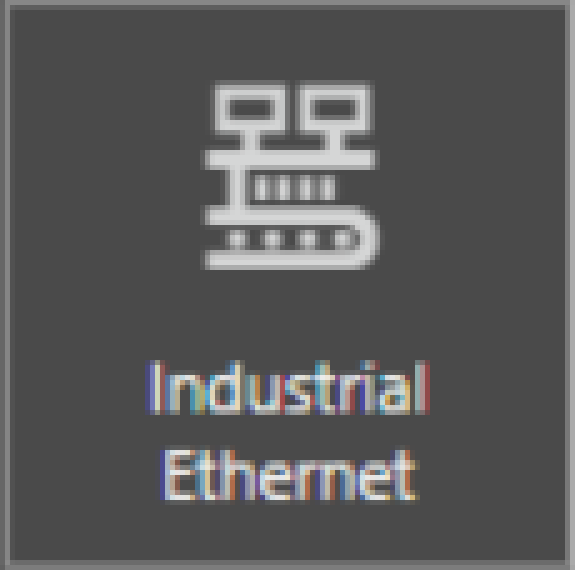

Industrial Ethernet | The Industrial Ethernet utility selects and configures an Industrial Communications protocol for the vision system. For more information, see Industrial Ethernet. | Elevated |
|
|

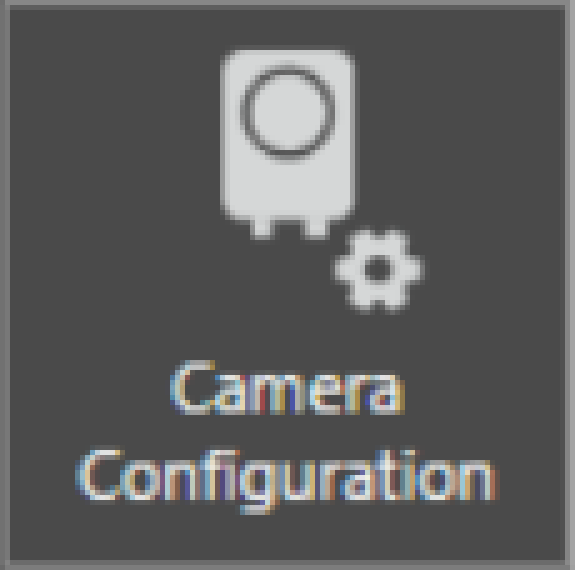

Camera Configuration | The Camera Configuration utility allows you to configure the resolution for the vision system. For more information, see Camera Configuration. |
Elevated |
|
|

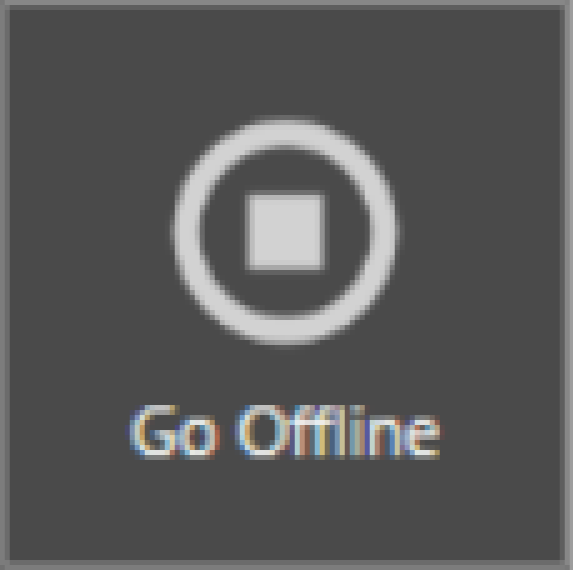

Go Offline | The Go Offline utility sets an Online job Offline on an In-Sight vision system. For more information, see Go Offline. | Elevated |
|
|

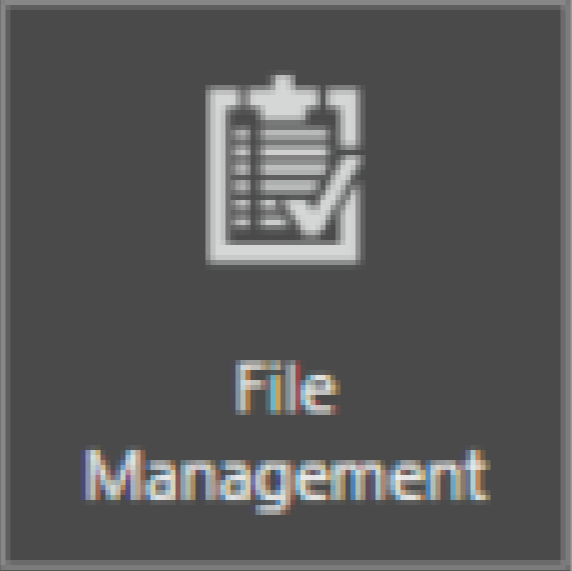

File Management | The File Management utility allows you to view, copy, move, or delete files on the In-Sight vision system. For more information, see File Management. | Elevated |
|
|

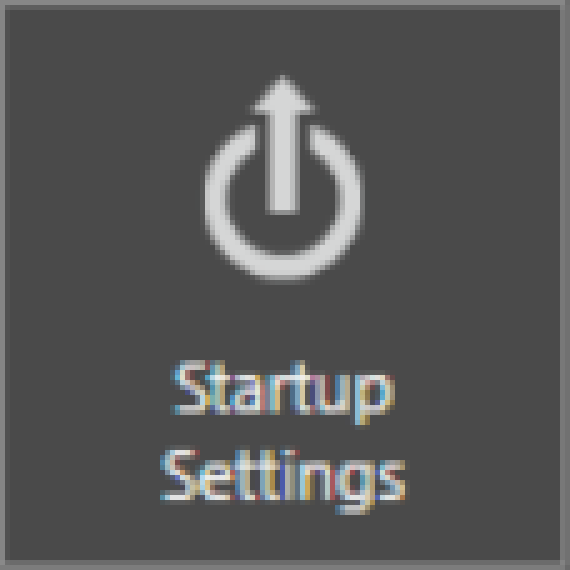

Startup Settings | The Startup Settings utility configures a startup job for the In-Sight vision system. For more information, see Startup Settings. | Elevated |
|
|

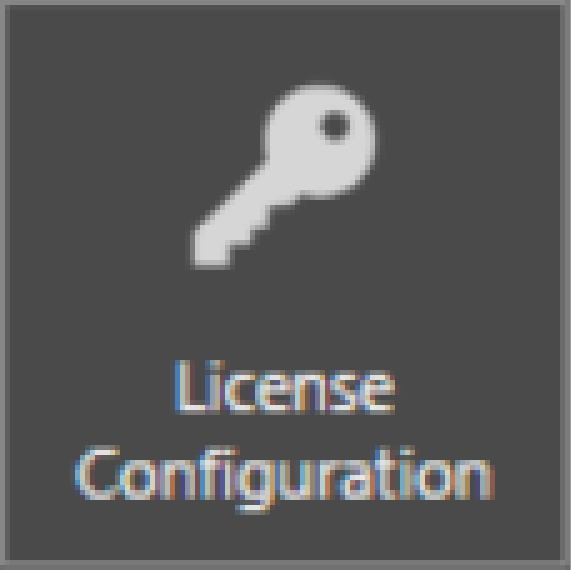

License Configuration | The License Configuration utility updates the existing product license of your In-Sight vision system on the Cognex Security Dongle. For more information, see License Configuration. | Full |
|
|

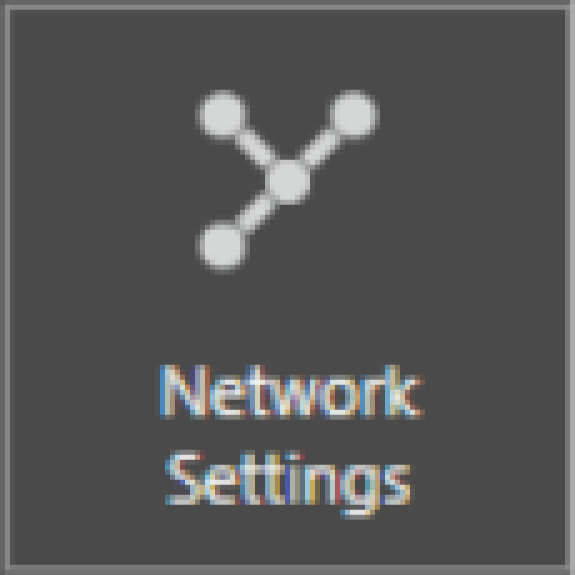

Network Settings | The Network Settings utility configures the network settings of an In-Sight vision system. For more information, see Network Settings. | Elevated |
|
Time Settings |
The Time Settings utility is used to configure the date and time settings of an In-Sight vision system. For more information, see Time Settings. |
Elevated |
|
|

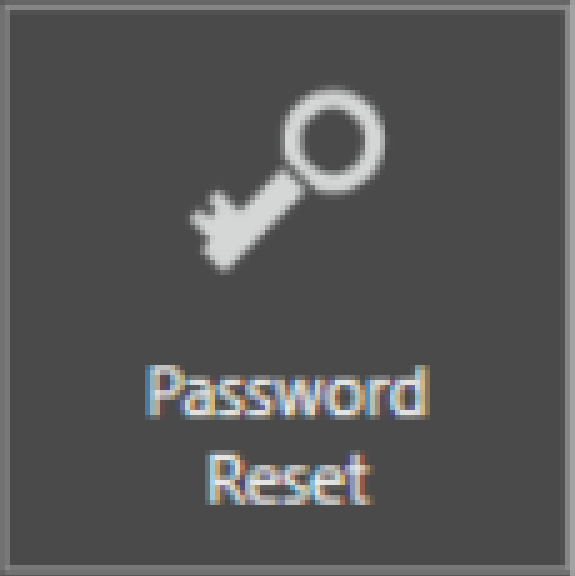

Password Reset | The Password Reset utility resets the password of the default admin user on the selected In-Sight vision system(s). For more information, see Password Reset. | None |
|
|

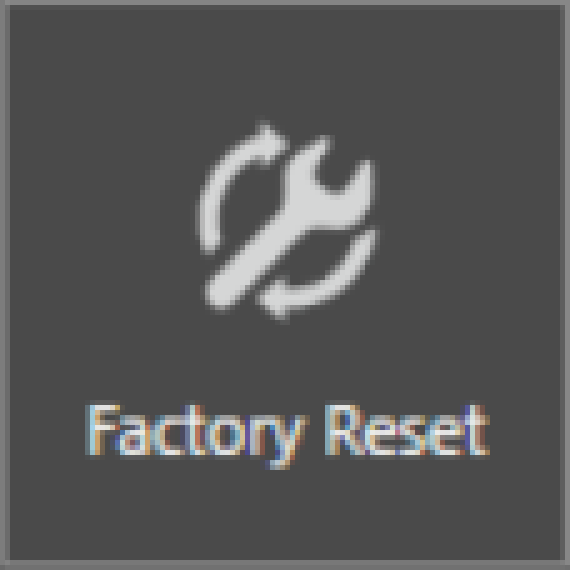

Factory Reset | The Factory Reset utility restores an In-Sight vision system to its factory default settings. For more information, see Factory Reset. | Full |
|
|

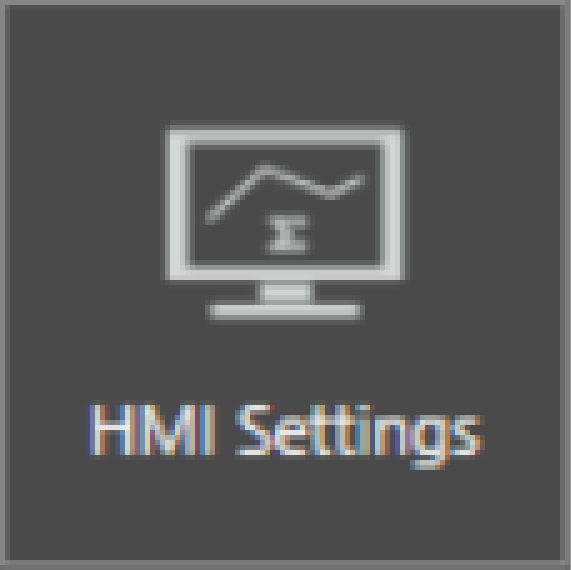

HMI Settings |
The HMI Settings utility allows you to configure the HMI window. For more information, see HMI Settings. |
Elevated |
|
Audit Logging |
The Audit Logging utility allows you to create audit logs, download the log, or forward the log to a remote server. For more information, see Audit Logging. |
Full |
|
System Validation |
The System Validation utility allows you to verify the current state of the vision system and configure system changes that can invalidate it. For more information, see System Validation. |
Full |
|
|

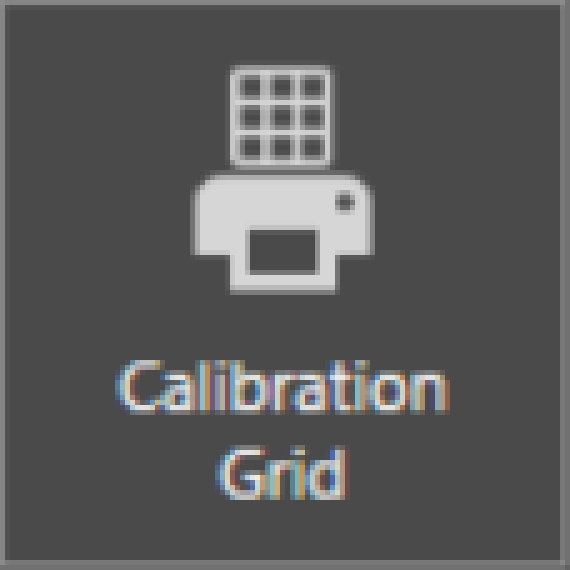

Calibration Grid |
The Calibration Grid utility prints out a calibration grid paper to assist in calibrating between pixel and real-world coordinates. For more information, see Calibration Grid. |
None |
|
|

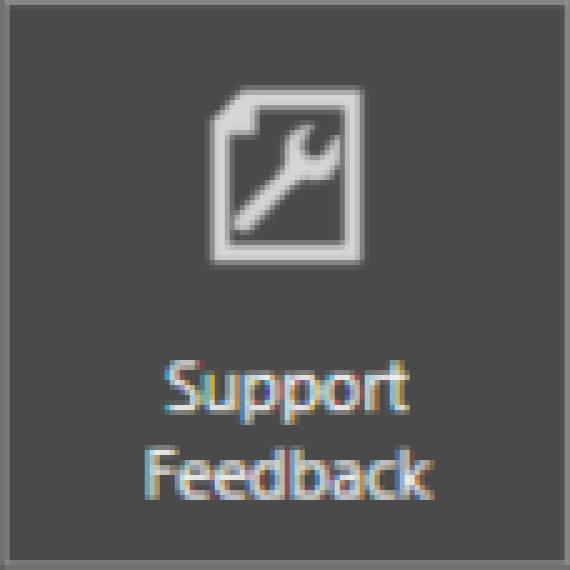

Support Feedback | The Support Feedback utility (also known as the Report a Problem utility) prepares error reports for potential issues. For more information, see Support Feedback. | Elevated |
|
|
Serial Configuration |
The Serial Configuration utility allows you to configure the serial port of the vision system. For more information, see Serial Configuration. |
Elevated |
|

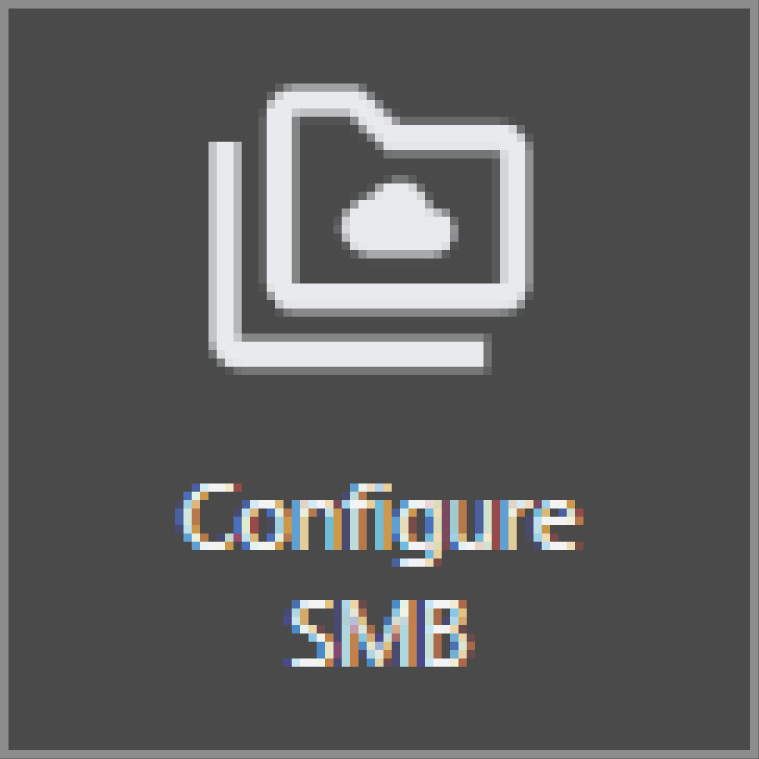

Configure SMB |
The Configure SMB utility configures the Server Message Block (SMB) protocol settings of your In-Sight vision system. For more information, see Configure SMB. |
Elevated |
|
|
IP Licensing |
The IP Licensing utility adds job licenses to your In-Sight vision system. For more information, see IP Licensing. |
Full |
|
|
Secure Connection |
The Secure Connection utility allows you to encrypt HMI communications. For more information, see Secure Connection. |
Full |
