In-Sight D900 Utilities
| Utility Button | Utility Name | Description |
|---|---|---|
|
|

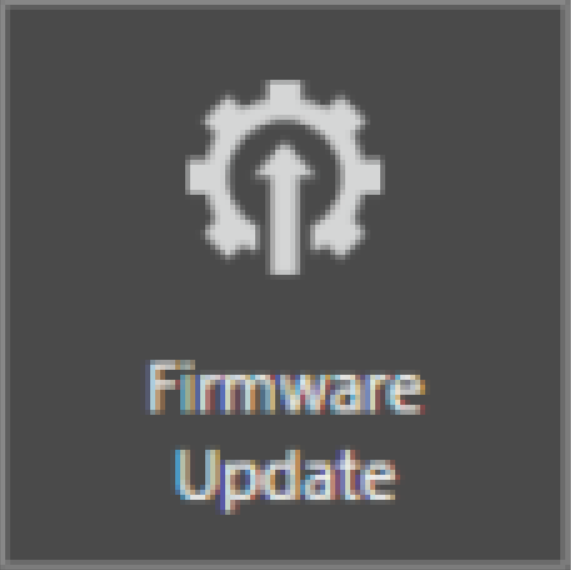

Firmware Update | The Firmware Update utility helps you through the firmware update process. For more information, see Firmware Update. |
|
|
Restart | The Restart utility remotely restarts an In-Sight vision system. For more information, see Restart. |
|
|
Backup | The Backup utility creates and stores a digital archive of your In-Sight vision system to protect against loss from hardware failure, accidental deletion, and other unplanned events. For more information, see Backup. |
|
|
Restore | The Restore utility restores the selected In-Sight vision system. For more information, see Restore. |
|
|
User Settings | The User Settings utility allows you to configure users and their access capabilities on an In-Sight vision system. For more information, see User Settings. |
|
|
Industrial Ethernet | The Industrial Ethernet utility selects and configures an Industrial Communications protocol for the vision system. For more information, see Industrial Ethernet. |
|
|

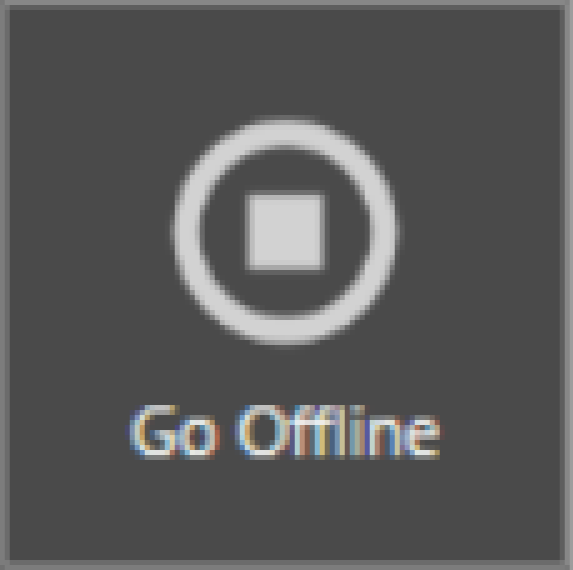

Go Offline | The Go Offline utility sets an Online job Offline on an In-Sight vision system. For more information, see Go Offline. |
|
|

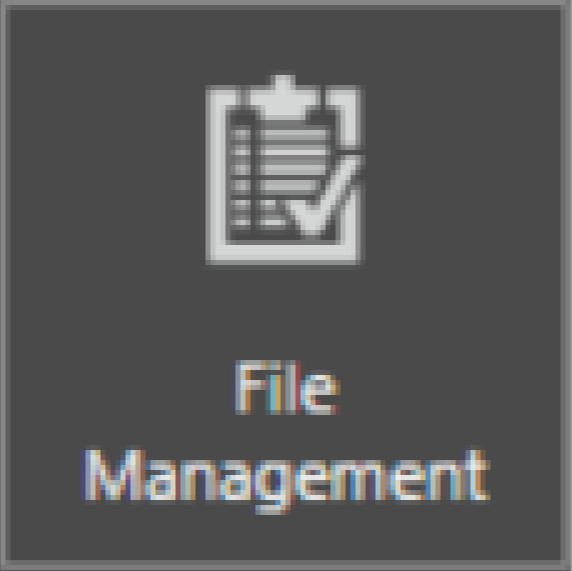

File Management | The File Management utility allows you to view, copy, move, or delete files on the In-Sight vision system. For more information, see File Management. |
|
|
Startup Settings | The Startup Settings utility configures a startup job for the In-Sight vision system. For more information, see Startup Settings. |
|
|
License Configuration | The License Configuration utility updates the existing product license of your In-Sight vision system on the Cognex Security Dongle. For more information, see License Configuration. |
|
|

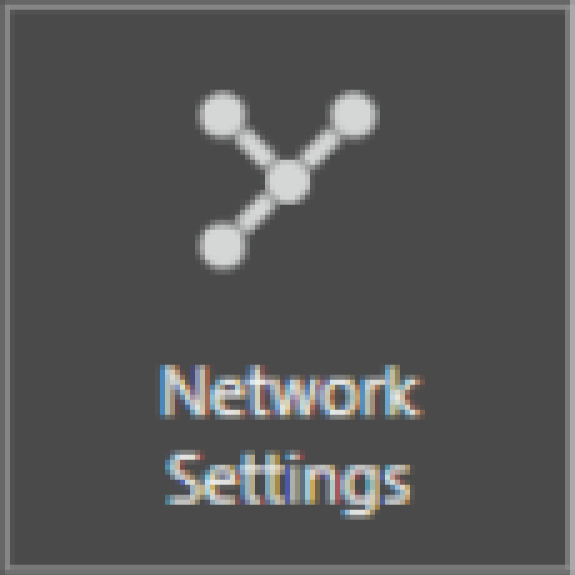

Network Settings | The Network Settings utility configures the network settings of an In-Sight vision system. For more information, see Network Settings. |
|
|
Time Settings |
The Time Settings utility is used to configure the date and time settings of an In-Sight vision system. For more information, see Time Settings. |
|
|
Password Reset | The Password Reset utility resets the password of the default admin user on the selected In-Sight vision system(s). For more information, see Password Reset. |
|
|
Factory Reset | The Factory Reset utility restores an In-Sight vision system to its factory default settings. For more information, see Factory Reset. |
|
|

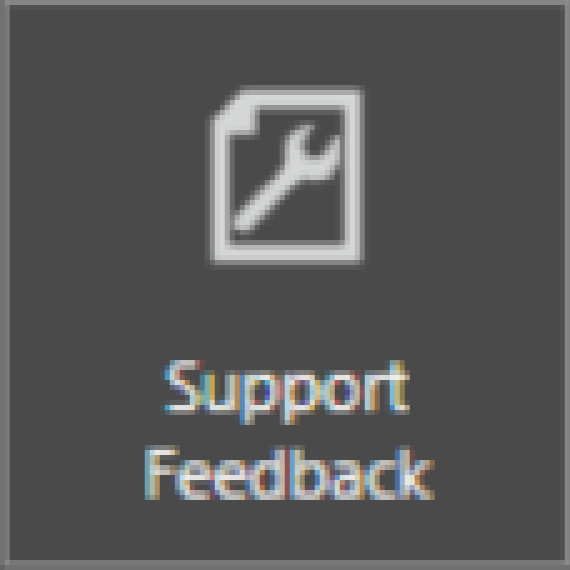

Support Feedback | The Support Feedback utility (also known as the Report a Problem utility) prepares error reports for potential issues. For more information, see Support Feedback. |
|
|
Identify |
The Identify utility helps you to find an In-Sight vision system by making the LEDs of the vision system flash continuously. For more information, see Identify. |
|
|
Secure Connection |
The Secure Connection utility allows you to encrypt HMI communications. For more information, see Secure Connection. |
