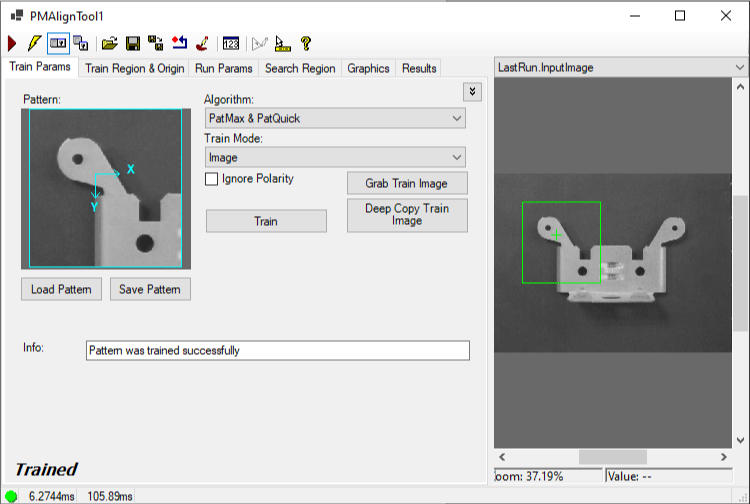

The PMAlign edit control provides a graphical user interface to the PMAlignTool, which allows you to train a pattern to locate in your run-time images. The search can be constrained by an optional search region within the input image. The following figure shows an example PMAlign edit control:
See the topic Control Reference for a description of the buttons along the top of the edit control. The PMAlign tool edit control supports the following image buffers:
- The Current.InputImage contains the input image to the PMAlign tool.
- The Current.TrainImage contains image used to train the features used by this PMAlign tool. .
- The LastRun.InputImage buffer displays the last image on which the tool most recently ran. Use the Graphics tab to highlight the search area and the results of the search.
See the following sections for more information:
