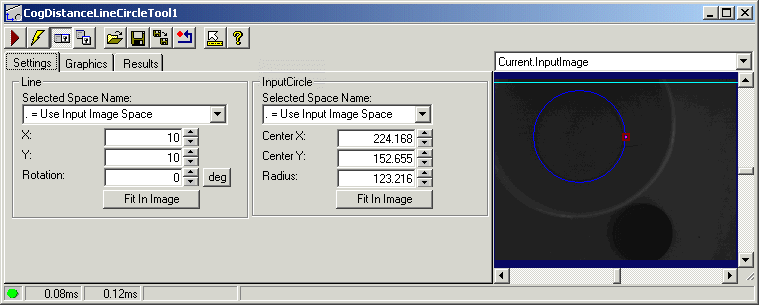

The Distance Line Circle edit control provides a graphical user interface to the DistanceLineCircle method, which returns the shortest distance from Line to Circle. The edit control allows you to configure the line and the circle, dictate which graphics appear as the tool executes, and view tool results. The following figure shows the Distance Line Circle edit control:

The edit control offers the following features:

• A row of control buttons at the top left
• A set of function tabs to define the line and the circle, choose what graphics the tool will use, and view results
• An image display window for displaying tool images and graphics

You can experiment with the edit control by using QuickBuild to create a CogDistanceLineCircleTool tool. A new CogDistanceLineCircleTool tool appears as shown in the following figure:

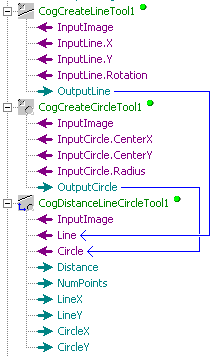

The line and circle parameters can either be specified directly from within the edit control or accepted as the result of other shape-generating vision tools. For example, the following figure shows how a Distance Line Circle tool accepts the Line and Circle generated as output from a Create Line and Create Circle tools:

To include the edit control in your custom vision application, you must first add it to your Visual Studio.NET development environment. See Using Edit Controls in Your Custom Vision Applications for more information.

The following table describes the function of each button:

Table 1. Control buttons

Button	Description	Function
	Run	Measures the distance between the line and circle
	Electric mode	Toggles electric mode, where the Distance Line Circle tool executes automatically when particular configuration parameters change. In electric mode, a lightning bolt appears next to every electric property
	Local image display	Opens or closes the local image display window. A Distance Line Circle tool supports the following image buffers: The Current.InputImage buffer contains the current image and the input line and input circle The LastRun.InputImage buffer contains the results of the tool after it measures the distance between the line and the circle
	Floating image display	Opens one or more floating image windows, which support the same image buffers as the local image display window
	Open	Opens a VisionPro persistence (.vpp) file that contains a set of saved properties for this vision tool object type. VisionPro reports an error if you try to open a .vpp file for another object type.
	Save	Saves the current properties of the vision tool to a VisionPro persistence (.vpp) file. The edit control allows you to choose between saving the vision tool with or without its image buffers and tool results.
	Save As	Saves the current properties of the vision tool to a new VisionPro persistence (.vpp) file
	Reset	Resets the vision tool to its default state.
	Show ToolTips	Enables or disables the display of tooltips for individual items in the edit control
	Help	Opens this VisionPro online help file

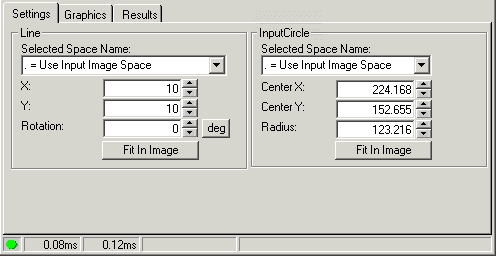

Use the Settings tab to define Line and Circle, or use the tab to confirm that the existing shapes correspond to the correct input parameters generated by another tool. The following figure shows the Settings tab:

The Settings tab offers the following features to define the Line parameter:

The Settings tab offers the following features to define the Circle parameter:

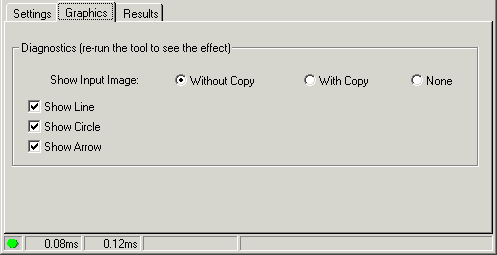

Use the Graphics tab to control which graphics the Distance Line Circle tool generates and displays. The following figure shows the Graphics tab:

The Graphics tab offers the following features:

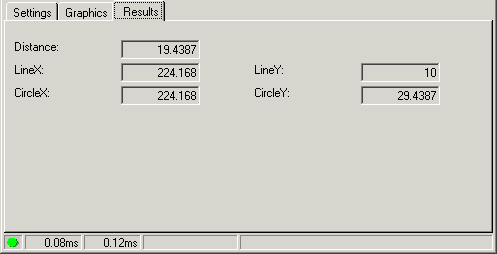

Use the Results tab to view the relationship between Line and Circle as determined by the Distance Line Circle tool. The following figure shows the Results tab:

The Results tab offers the following features:
