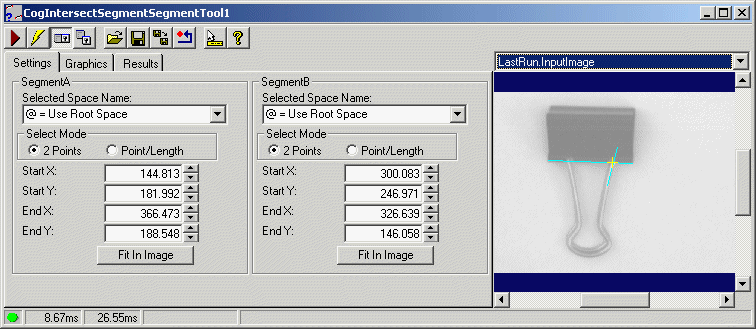

The Intersect Segment Segment edit control provides a graphical user interface to the IntersectSegmentSegment method, which determines whether SegmentA and SegmentB intersect, and depending on the relationship of the two shapes, the points of intersection. The edit control allows you to configure the two segments, dictate which graphics appear as the tool executes, and view tool results. The following figure shows the Intersect Segment Segment edit control:
The edit control offers the following features:
- A row of control buttons at the top left
- A set of function tabs to define the two line segments, choose what graphics the tool will use, and view results
- An image display window for displaying tool images and graphics
You can experiment with the edit control by using QuickBuild to create a CogIntersectSegmentSegment tool. A new CogIntersectSegmentSegment tool appears as shown in the following figure:
To include the edit control in your custom vision application, you must first add it to your Visual Studio.NET development environment. See Using Edit Controls in Your Custom Vision Applications for more information.
The following table describes the function of each button:
| Button | Description | Function |
 | Run | Determines whether the two line segments intersect |
 | Electric mode | Toggles electric mode, where the Intersect Segment Segment tool executes automatically when particular configuration parameters change. In electric mode, a lightning bolt appears next to every electric property |
 | Local image display | Opens or closes the local image display window. A Intersect Segment Segment tool supports the following image buffers:
|
 | Floating image display | Opens one or more floating image windows, which support the same image buffers as the local image display window |
 | Open | Opens a VisionPro persistence (.vpp) file that contains a set of saved properties for this vision tool object type. VisionPro reports an error if you try to open a .vpp file for another object type. |
 | Save | Saves the current properties of the vision tool to a VisionPro persistence (.vpp) file. The edit control allows you to choose between saving the vision tool with or without its image buffers and tool results. |
 | Save As | Saves the current properties of the vision tool to a new VisionPro persistence (.vpp) file |
 | Reset | Resets the vision tool to its default state. |
 | Show ToolTips | Enables or disables the display of tooltips for individual items in the edit control |
 | Help | Opens this VisionPro online help file |

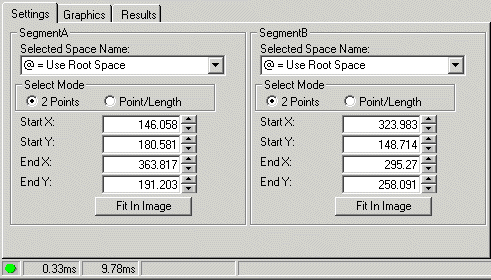

Use the Settings tab to define SegmentA and SegmentB, or use the tab to confirm that the existing shapes correspond to the correct input parameters generated by another tool. The following figure shows the Settings tab:
The Settings tab offers identical features for defining both SegmentA and SegmentB parameters:
| Feature | Description |
| SelectedSpaceName | Names the coordinate space for the line segment |
| Select Mode | Determines whether the line segment is determined by the 2 Points option (two [x, y] coordinates) or by the Point/Length option (a starting [x, y] coordinate followed by a line length and a measure of rotation). |
| StartX and StartY | Names the starting (x, y) coordinate of the line segment |
| EndX and EndY | Names the ending (x, y) coordinate of the line segment when using the 2 Points option. |
| Length and Rotation | Controls the length and angle of rotation of the line segment when using the Point/Length option. |
| FitToImage | Centers the line segment within the Current.InputImage |

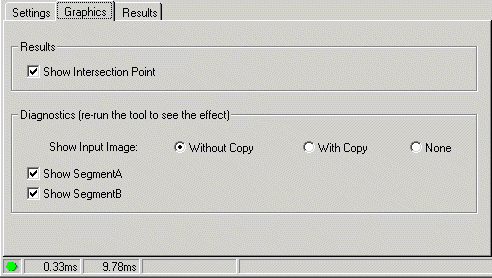

Use the Graphics tab to control which graphics the Intersect Segment Segment tool generates and displays. The following figure shows the Graphics tab:
The Graphics tab offers the following features:
| Feature | Description |
| Show Intersection Point | Show the point where the shapes intersect in the LastRun.InputImage buffer |
| Show Input Image | Determines whether or not the input image is recorded as part of the diagnostic record, and whether the image is copied to the record or saved in the record as a reference |
| Show SegmentA | Show SegmentA in the LastRun.InputImage buffer |
| Show SegmentB | Show SegmentB in the LastRun.InputImage buffer |

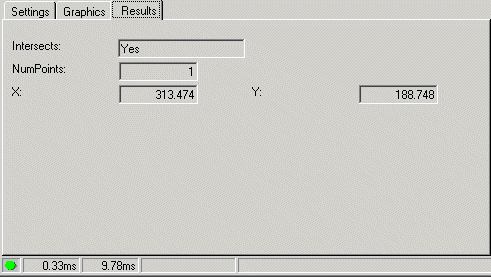

Use the Results tab to view the relationship between SegmentA and SegmentB as determined by the Intersect Segment Segment tool. The following figure shows the Results tab:
The Results tab offers the following features:
| Feature | Description |
| Intersects | Indicates whether the shapes intersect |
| NumPoints | An indication of the relationship between the shapes SegmentA and SegmentB, as described in the IntersectSegmentSegment method |
| X and Y | The (x, y) coordinate of the point where the shapes intersect |
