Server CodeMeter WebAdmin Configuration

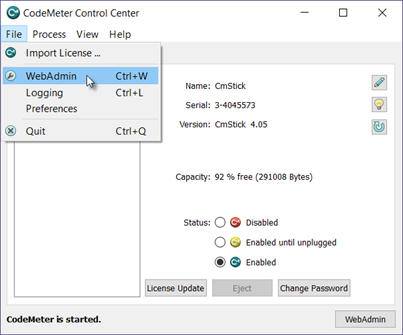

1. On the server device, from the CodeMeter Control Center, open the WebAdmin in your browser.

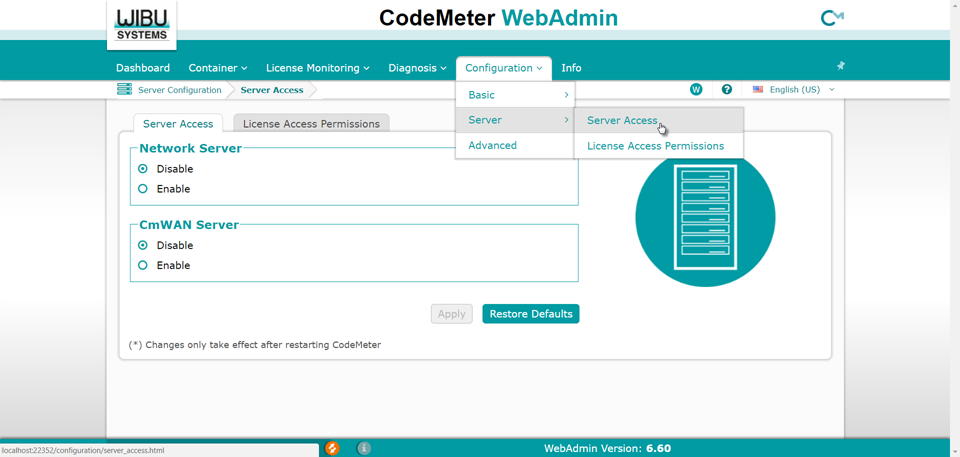

2. From the Configuration drop-down menu, select Server, then Server Access.

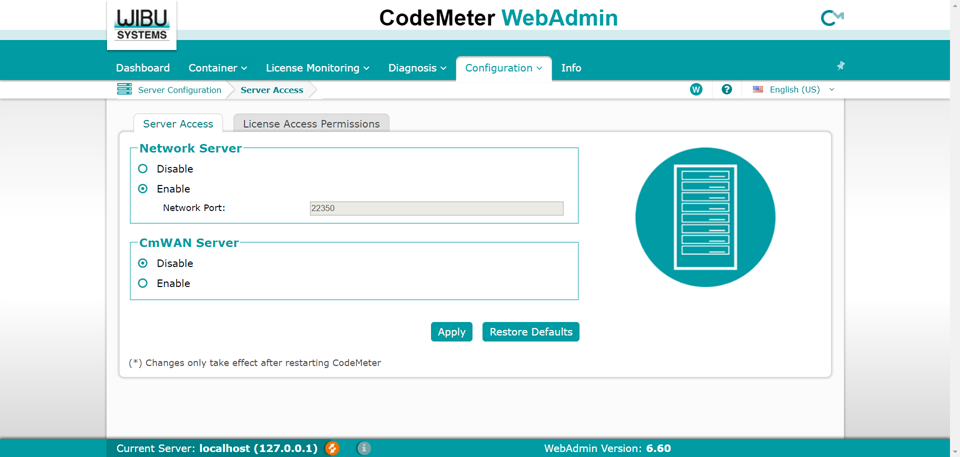

3. Set the Network Server radio button to Enable.



4. The Network Port setting of the CodeMeter Service is automatically set. The default setting is port 22350.

   Note: If you have another application using port 22350 and you need to change the network port setting, see the Change the Server Network Port Setting topic.
5. Press the Apply button.

6. After configuring the server, you will need to launch the ViDi Suite Service application, which will allow the clients to run the inference and training processes.

   Note: The inference and training capabilities are dependent on your license configurations. Please contact your Cognex sales representative for more information.
