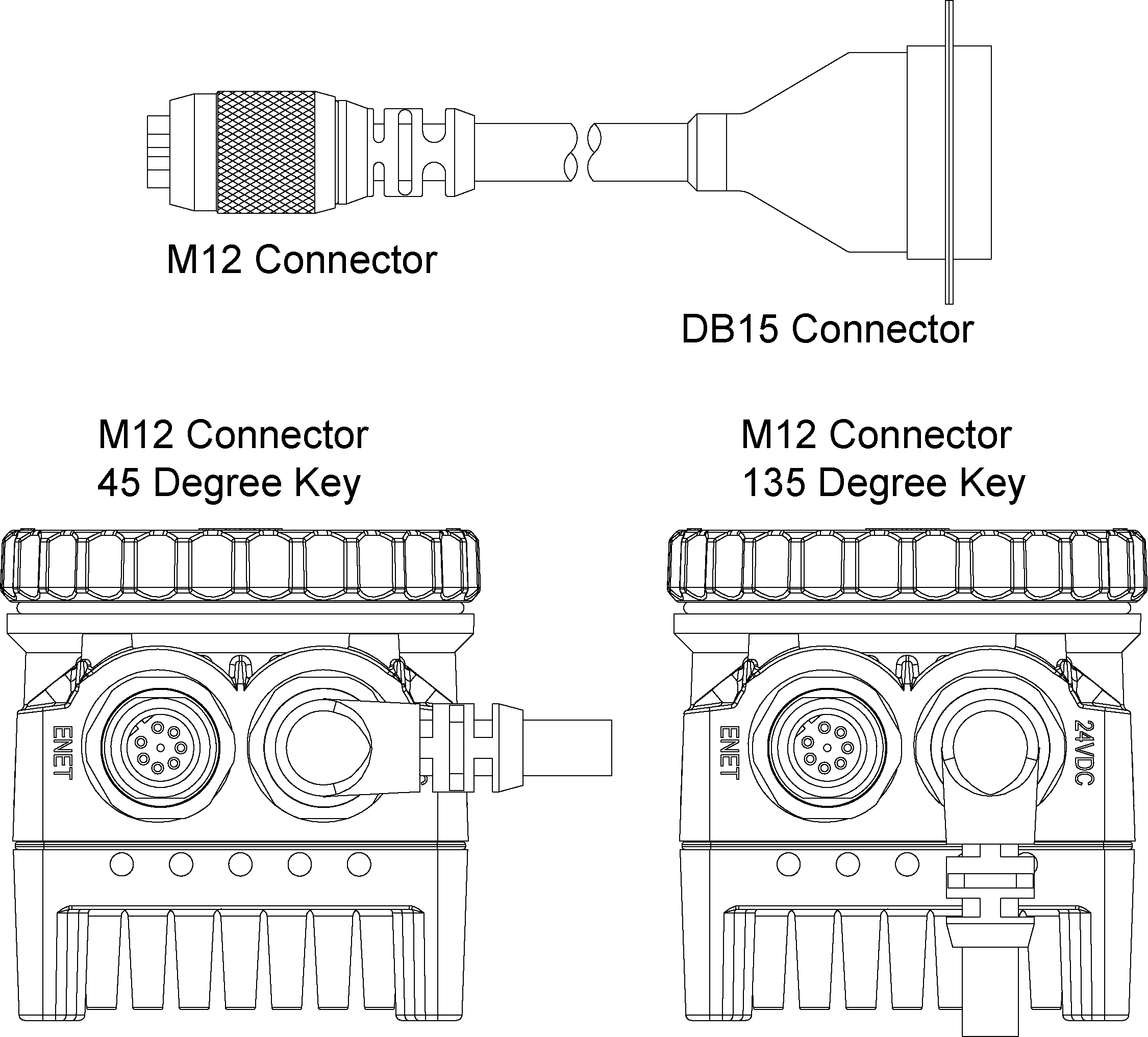

I/O Module Cable
The I/O Module cable connects the vision system directly to a compatible In-Sight I/O module via the DB15 connector. The pin-outs for the cable are listed in the I/O Module Cable Specifications. This cable is available in the lengths listed below.
|
|
|||
|---|---|---|---|
| Length | Standard Part # | 45-Degree Key Right-Angle Part # | 35-Degree Key Right-Angle Part # |
| 2 m | CCB-84901-0901-02 | CCB-84901-4001-02 | CCB-84901-5001-02 |
| 5 m | CCB-84901-0902-05 | CCB-84901-4002-05 | CCB-84901-5002-05 |
| 10 m | CCB-84901-0903-10 | CCB-84901-4003-10 | CCB-84901-5003-10 |
| 15 m | CCB-84901-0904-15 | CCB-84901-4004-15 | CCB-84901-5004-15 |
