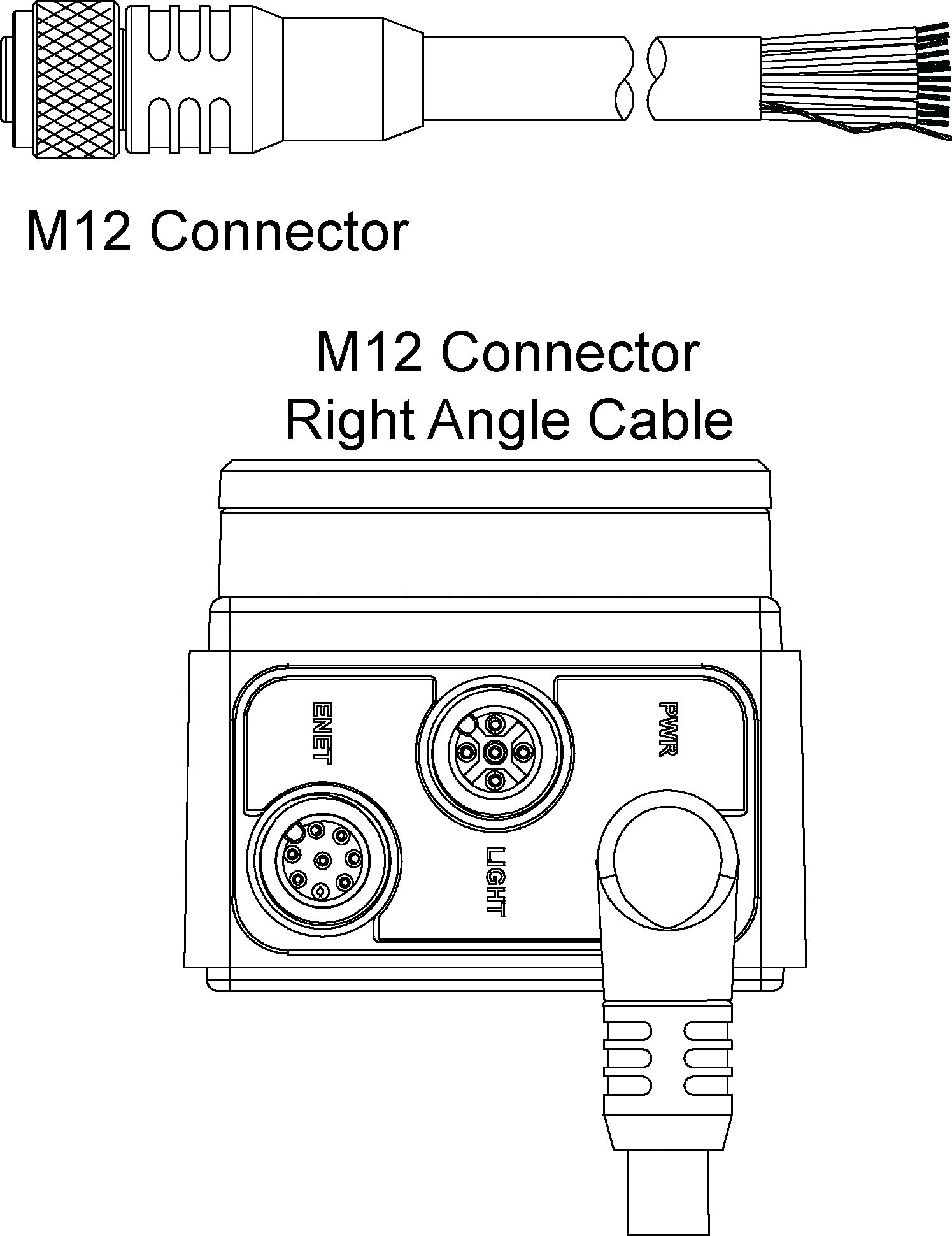

Breakout Cable
The Breakout cable provides connections to an external power supply, the acquisition trigger input, general-purpose inputs, high-speed outputs and RS-232 serial communications. The pin-outs for the cable are listed in the Breakout Cable Specifications. This cable is available in the styles listed below.
|
|
||
|---|---|---|
| Length | Standard Part # | Right-Angle Part # |
| 5 m | CCB-PWRIO-05 | CCB-PWRIO-05R |
| 10 m | CCB-PWRIO-10 | CCB-PWRIO-10R |
| 15 m | CCB-PWRIO-15 | CCB-PWRIO-15R |
