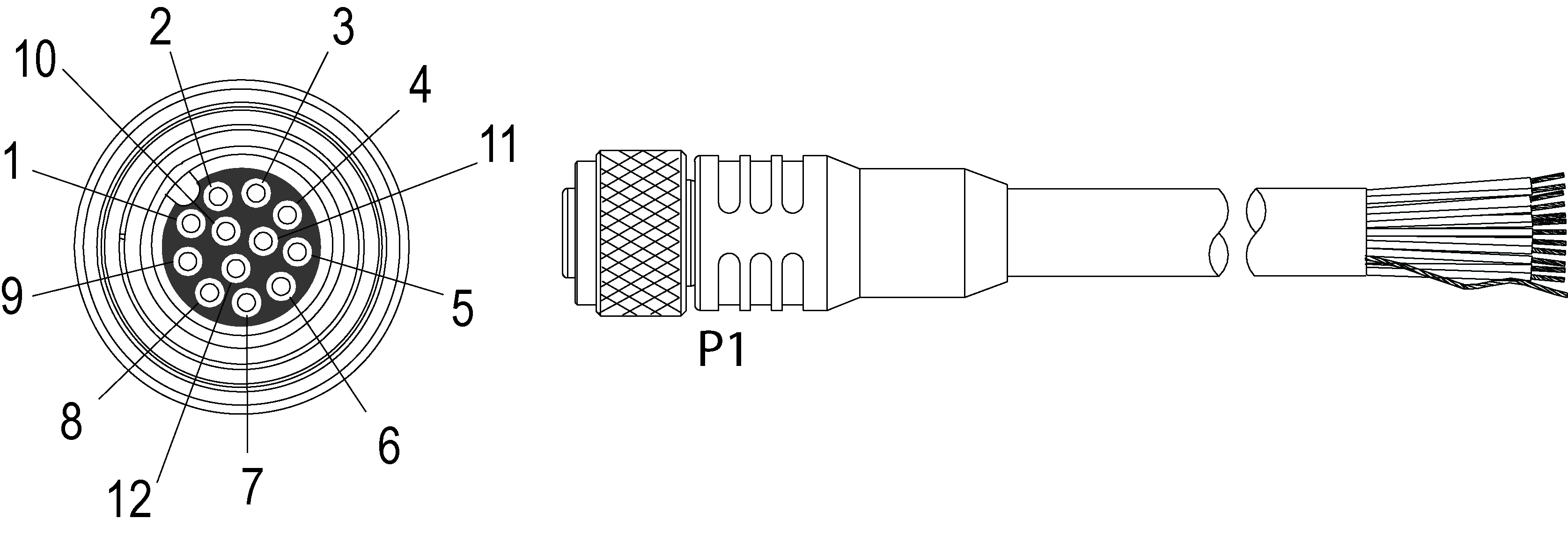

Breakout Cable Specifications
The Breakout cable provides connections to an external power supply, the acquisition trigger input, general-purpose inputs, high-speed outputs and RS-232 serial communications. The Breakout cable is not terminated.
|
||
|---|---|---|
| Pin# | Signal Name (I/O Mode) | Wire Color |
| 1 | IN 2 | Yellow |
| 2 | IN 3 | White/Yellow |
| 3 | HSOUT 2 | Brown |
| 4 | HSOUT 3 | White/Brown |
| 5 | IN 1/ RS-232 RECEIVE1If hardware handshaking is required, an I/O module must be used. | Violet |
| 6 | INPUT COMMON | White/Violet |
| 7 | +24VDC | Red |
| 8 | 24V COMMON | Black |
| 9 | OUTPUT COMMON | Green |
| 10 | TRIGGER | Orange |
| 11 | HSOUT 0 | Blue |
| 12 | HSOUT 1/ RS-232 TRANSMIT2If hardware handshaking is required, an I/O module must be used. | Grey |
| Shell | SHIELD | Bare Wire |
Note:
- Cables are sold separately.
- You can clip unused wires short or use a tie made of non-conductive material to tie them back. Keep bare wires separated from the +24VDC wire.
