Working Distance and Field of View (S-Mount/M12 Lenses)

The working distance is the distance from the vision system lens to the part that needs to be inspected; field of view is what the vision system can see at that distance. As the working distance increases, so does the size of the field of view.

Note:

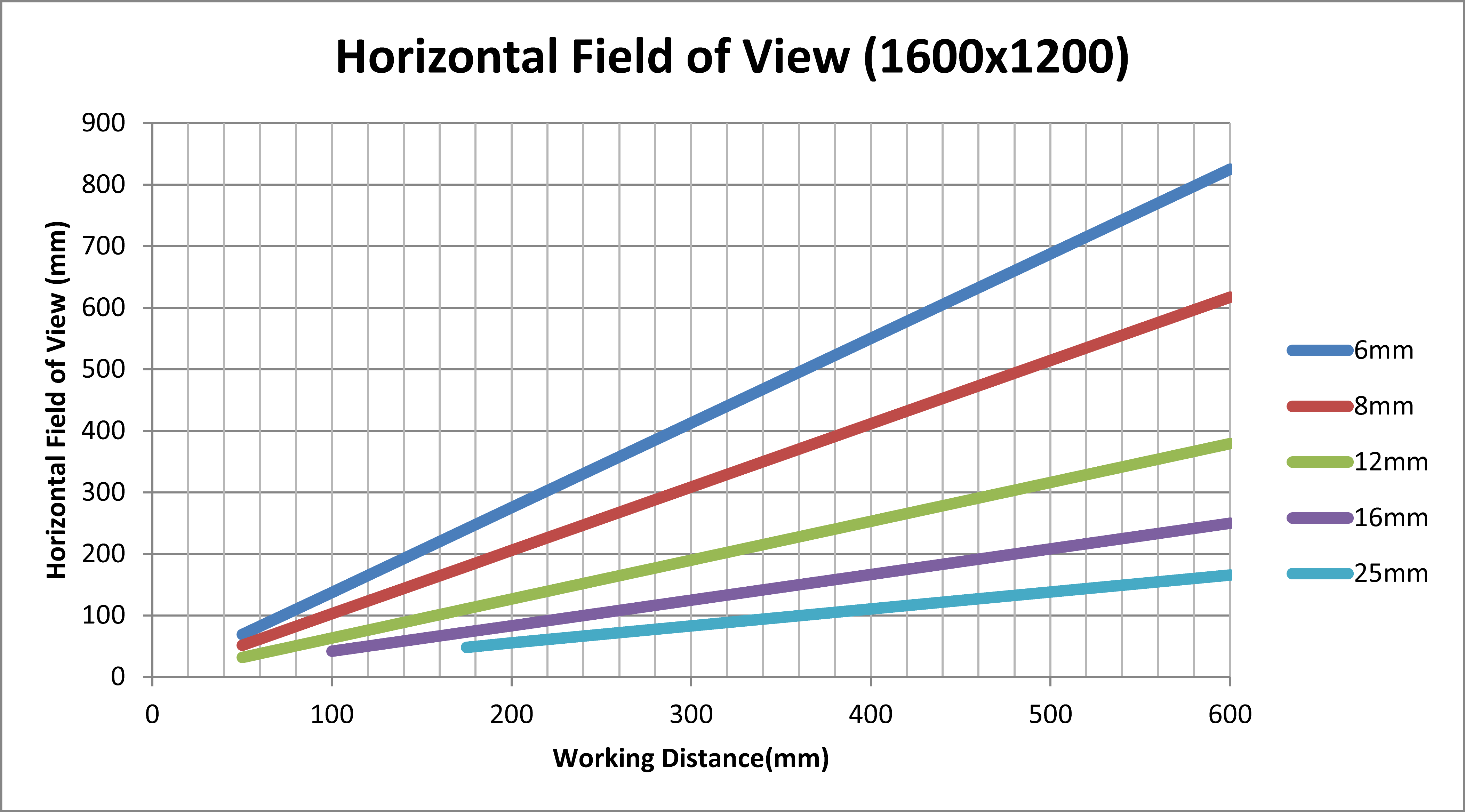

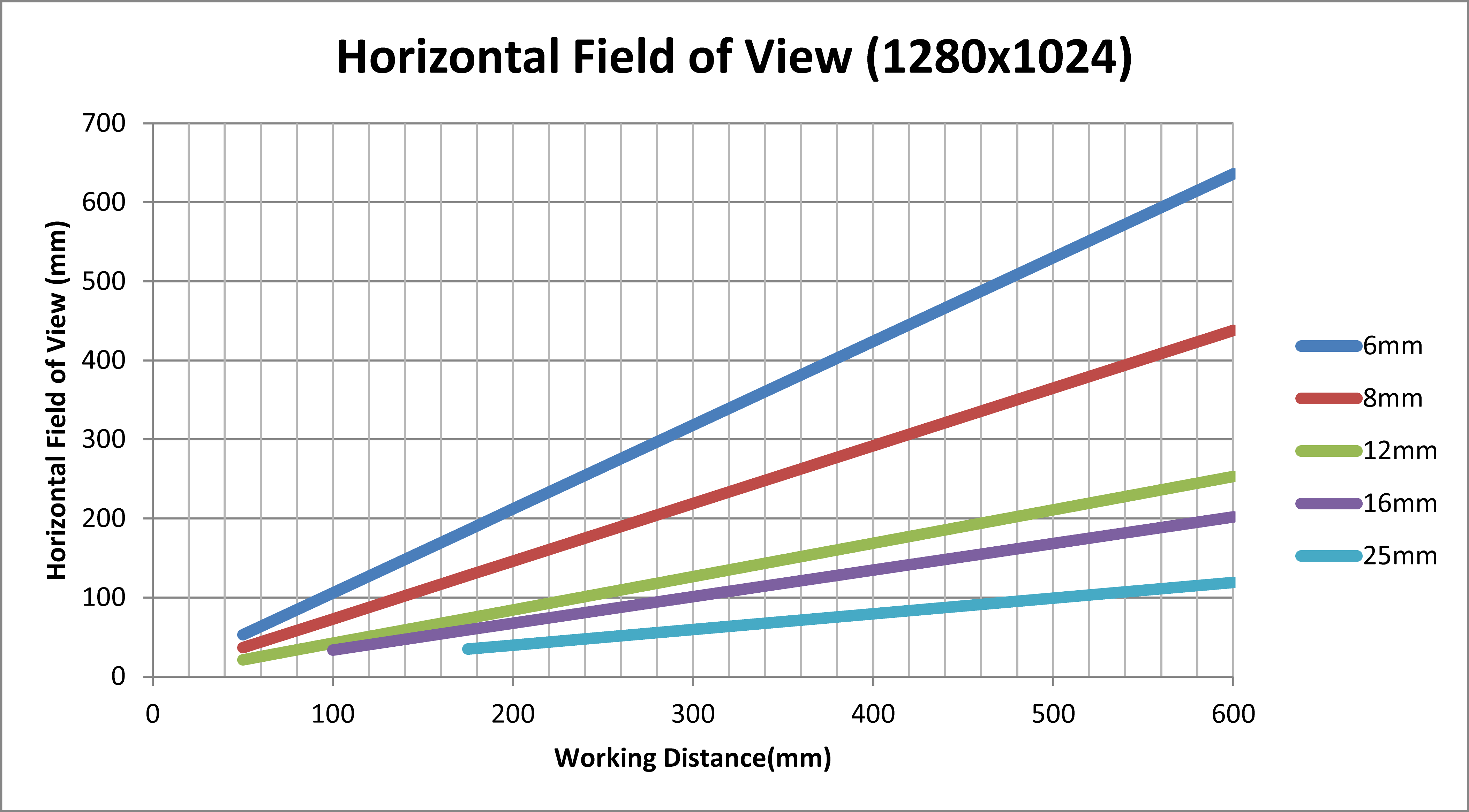

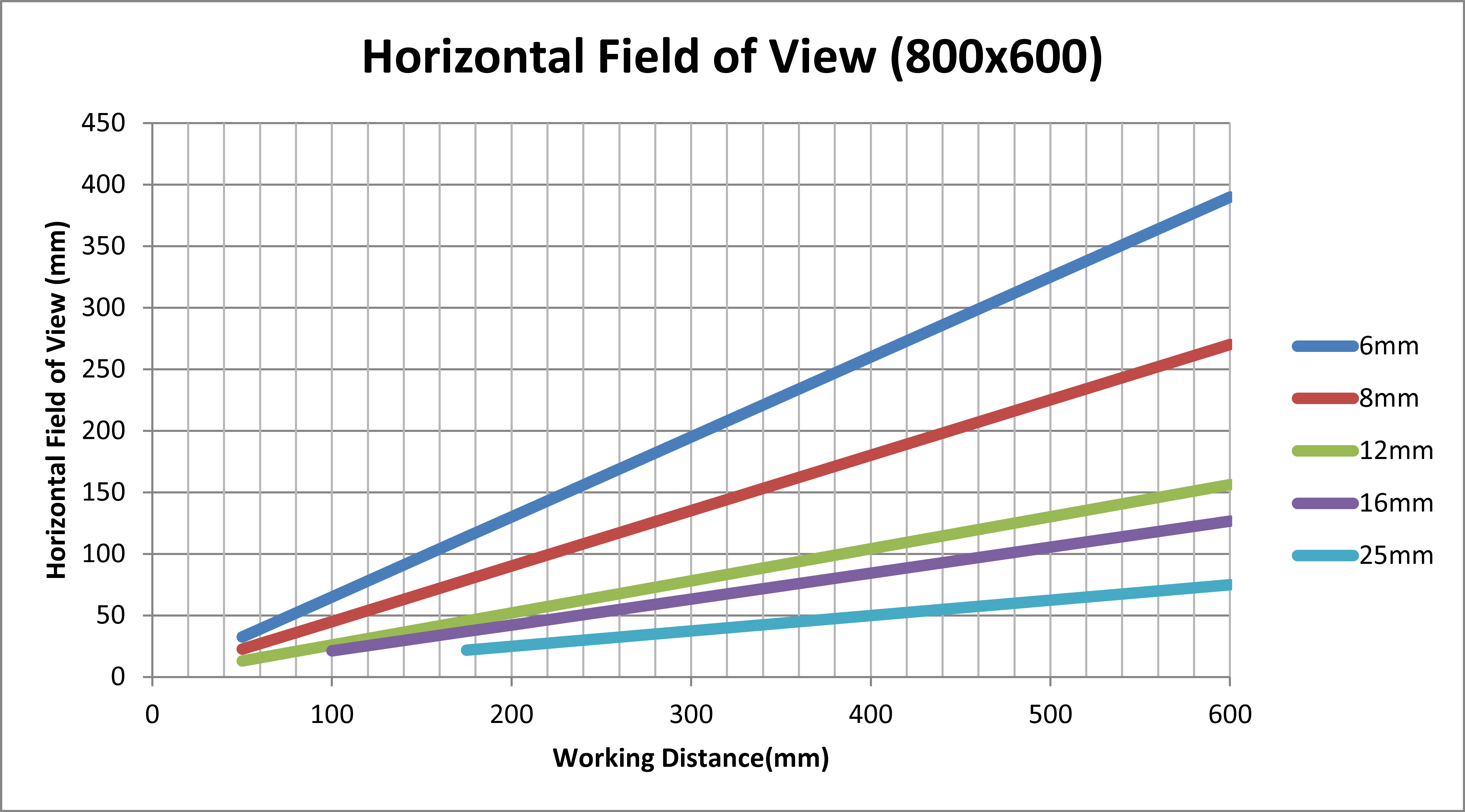

The following charts show the design field of view of the In-Sight S-Mount/M12 accessory lenses and is fully mapped onto the image sensor. Additional field beyond the design field of view may have vignetting. For supported In-Sight lenses, refer to S-Mount/M12 Autofocus Accessories and S-Mount/M12 Manual Focus Accessories.
For the In-Sight 7902P, the S-Mount lens image circle size is slightly smaller than the vision system’s image sensor size, resulting in vignetting in the image. This is most noticeable with the smaller S-Mount 6mm, 8mm and 12mm focal lenses.
The In-Sight 7905 vision system does not support S-Mount/M12 lenses or any accessories that require S-Mount/M12 lenses.
