S-Mount/M12 Manual Focus Accessories
Note:
- The In-Sight 7905 vision system does not support S-Mount/M12 lenses or any accessories that require S-Mount/M12 lenses.
- The DataMan clear cover accessory (DM300-CLCOV) is supported with In-Sight S-Mount/M12 manual focus lenses and provides an IP65 rating. For more information, refer to DataMan Lenses, Lights and Covers.
- The following S-Mount/M12 lenses are supported. If a different lens is used, the following restrictions apply:
- At infinity focus, the back focal length must be greater than 5.5mm.
- Close up, the back focal length of the lens cannot be greater than 13mm.
| S-Mount/M12 Manual Focus Accessories | Part Number | |
|---|---|---|
|
6mm M12 lens |
LM12‑06‑01 |
|
|
8mm M12 lens |
LM12‑08‑01‑F2.2 | |
|
12mm M12 lens |
LM12‑12-01‑F2.3 | |
|
16mm M12 lens |
LM12‑16‑01 | |
| 25mm M12 lens | LM12‑25‑01 | |
|

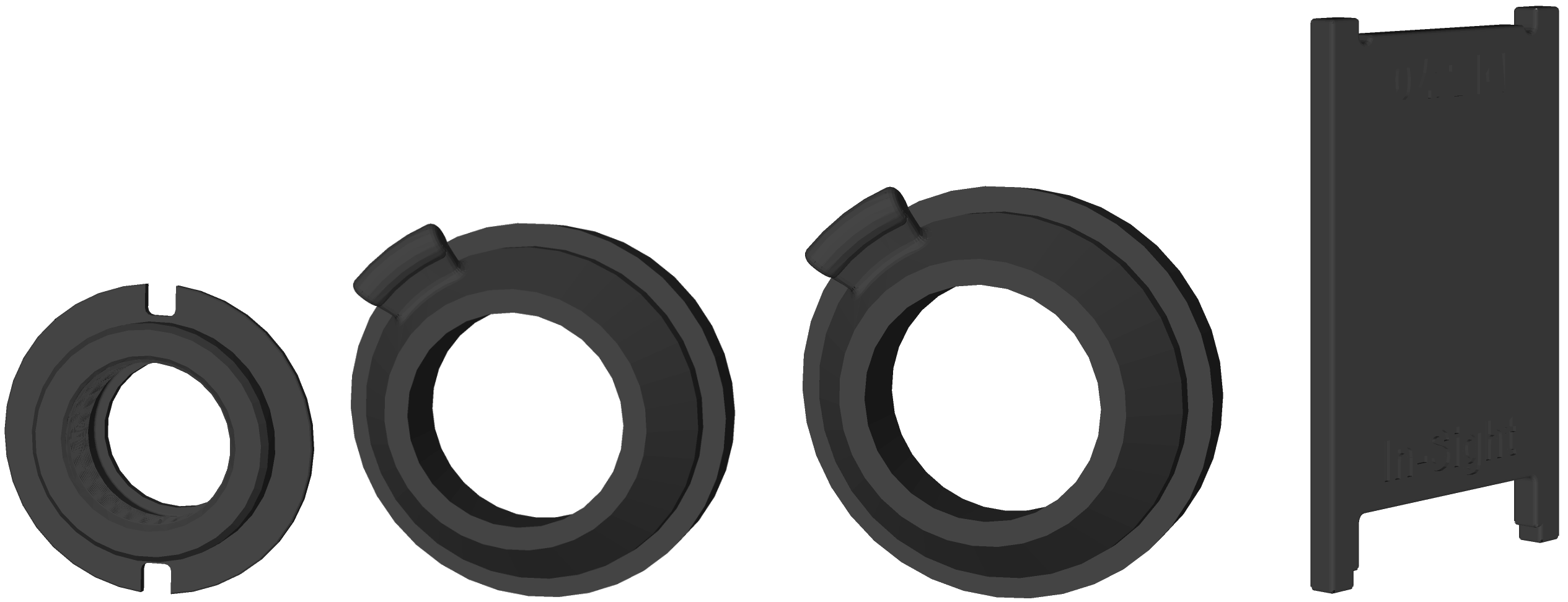

S-Mount/M12 adapter kit:
Note: The S-Mount accessory kit (ISLN-7000-SMNT) is required when installing In‑Sight S-Mount/M12 manual focus lenses.
|
ISLN‑7000‑SMNT |
|
