I/O Module Cable

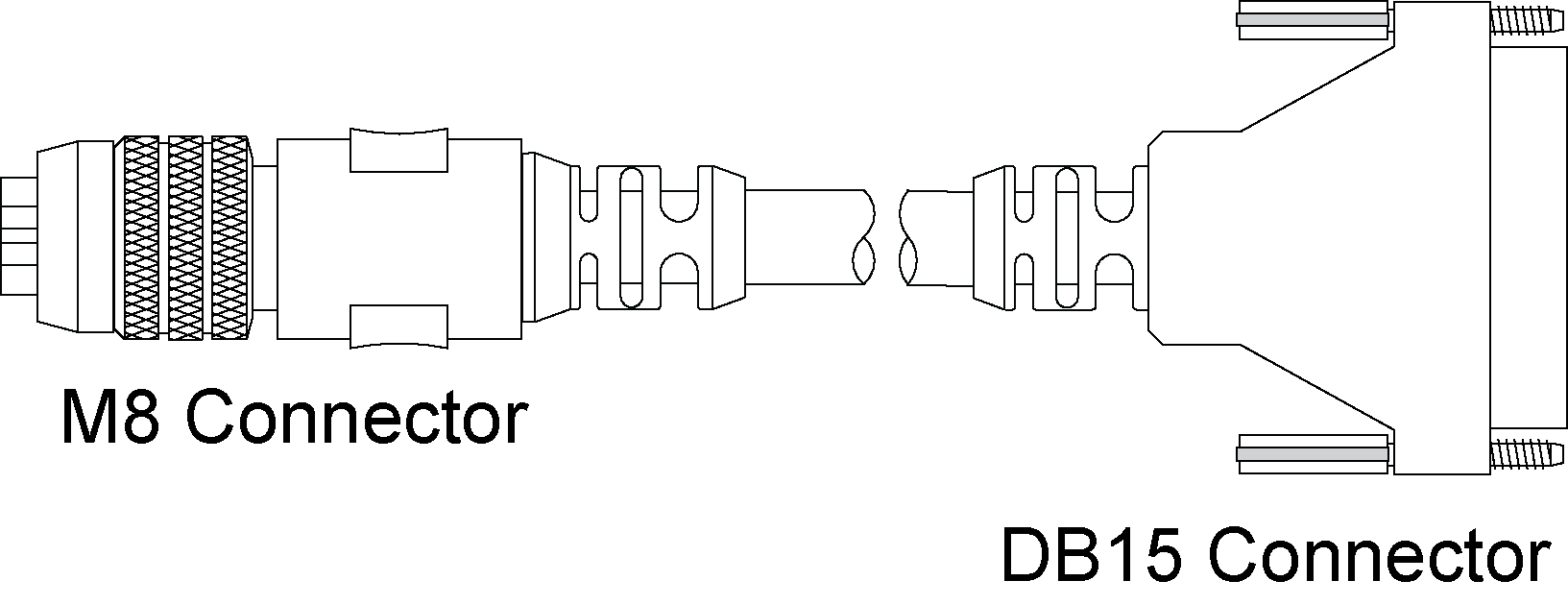

The I/O Module cable is used with the CIO-MICRO. The I/O Module cable connects the vision system directly to the I/O module via the DB15 connector. When connected, the I/O Module cable provides access to the vision system’s trigger and high-speed outputs. The pin-outs for the cable are listed in the I/O Module Cable Specifications. This cable is available in the lengths listed below.
|
|
|---|---|
| Length | Part # |
| 0.7 m | CCB-M8DSIO-00 |
| 2 m | CCB-M8DSIO-02 |
| 5 m | CCB-M8DSIO-05 |
| 10 m | CCB-M8DSIO-10 |
| 15 m | CCB-M8DSIO-15 |
