I/O Module Cable Specifications
The I/O Module cable is used with the CIO-MICRO. The I/O Module cable connects the vision system directly to the I/O module via the DB15 connector. When connected, the I/O Module cable provides access to the vision system’s trigger and high-speed outputs.
|
||
|---|---|---|

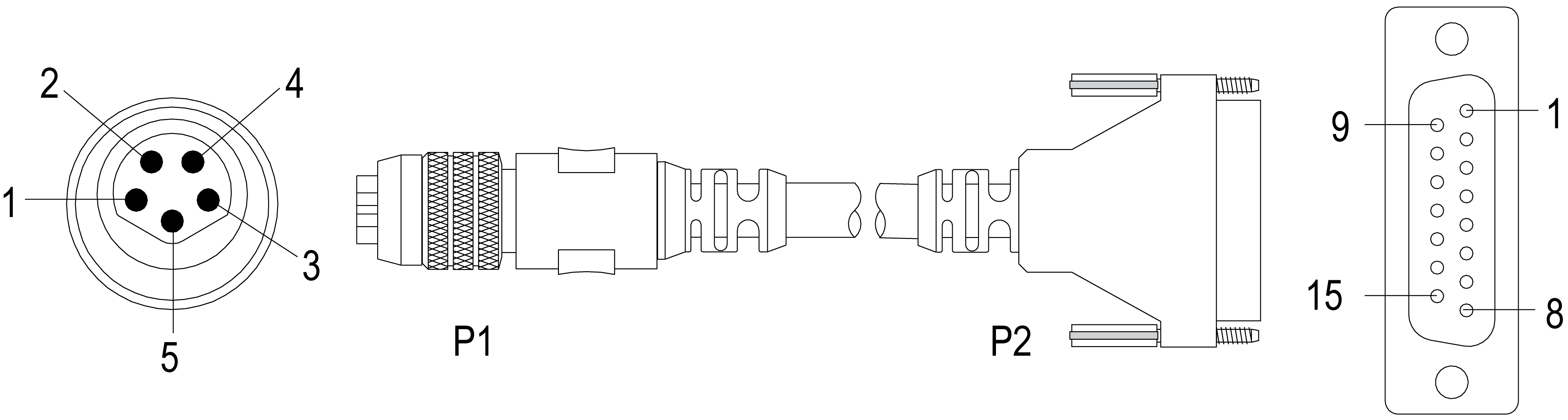

| P1 Pin Number | Signal Name | P2 Pin Number |
| 1 | HS OUT 0 | 4 |
| 2 | HS OUT 1 | 5 |
| 3 | TRIGGER+ | 2 |
| 4 | TRIGGER- | 3 |
| 5 | HS COMMON | 15 |
Note: Cables are sold separately.
