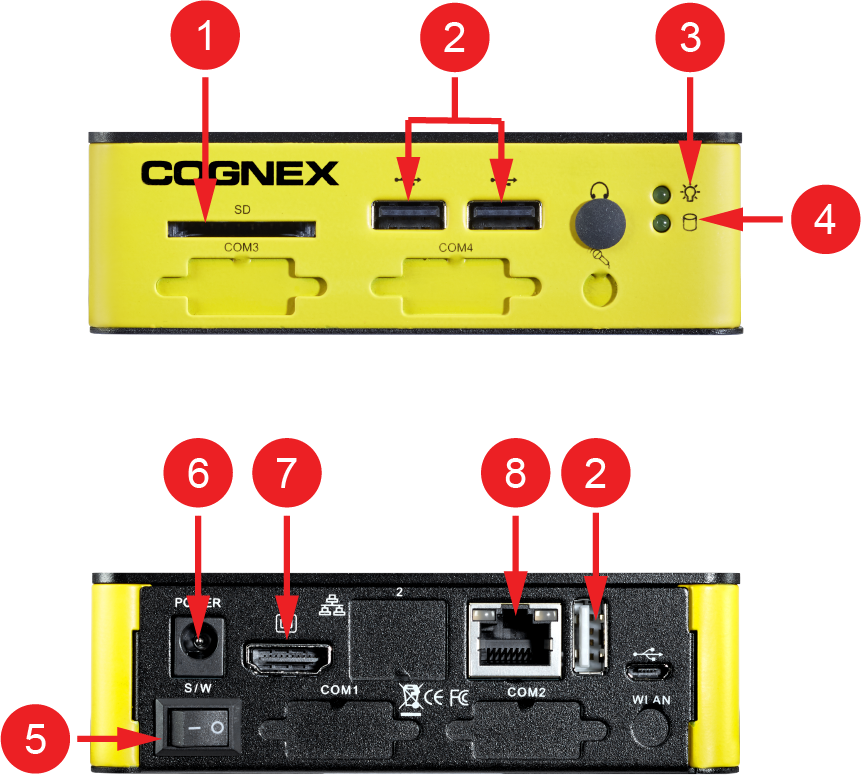

VisionView Web HDMI Layout
The following table shows the layout for the VisionView Web HDMI:
|
|
|
|---|---|
| Element | Description |
| 1 | SD card slot |
| 2 | USB 2.0 ports |
| 3 | Power LED |
| 4 | SD/eMMC LED |
| 5 | Power switch |
| 6 | Power supply (DC +12 V ~ +36 V) |
| 7 | HDMI output port |
| 8 | RJ-45 Ethernet port |
