VisionPro LicensesCognex VisionPro 9.25 SR1

Your Cognex sales representative can provide a USB security key programmed with the desired licenses for your vision application. Attach the key to your computer before you launch any VisionPro application.

See the following sections for more information:

Licenses

Every vision tool requires at least one enabled license on your Cognex USB security key, and some vision tools require multiple licenses. For example, the ID tool requires a combination of the licenses VisionPro.Barcode, VisionPro.Symbol, or VisionPro.SymbolVerifyBasic to locate 1D or 2D symbologies, depending on the needs of your vision application.

The following table lists the VisionPro tools and the licenses they require:

VisionPro ToolLicensesNotes

GigE Vision Acquisition

(AcqFifo Tool and QuickBuild Image Source)

VisionPro.Cam2: Up to 2 cameras
VisionPro.Cam4: Up to 4 cameras
VisionPro.Cam8: Up to 8 cameras
VisionPro.CamMulti: Unlimited number of cameras
VisionPro.SWAcquisition: Up to 8 GigE Vision cameras



VisionPro.SWAcquisition overrides VisionPro.Cam8

Cognex Industrial Cameras (GigE Vision) VisionPro.CamCICGigEMust also include one of the following licenses: VisionPro.Cam2, VisionPro.Cam4, VisionPro.Cam8, VisionPro.CamMulti, or VisionPro.SWAcquisition

Any GigE Vision camera

VisionPro.CamAnyGigE

Includes Cognex Industrial Cameras

Must also include one of the following licenses: VisionPro.Cam2, VisionPro.Cam4, VisionPro.Cam8, VisionPro.CamMulti, or VisionPro.SWAcquisition

3D CAD Import OperatorVisionPro.3DCad
3D Cross Section ToolVisionPro.3DRangeTools | VisionPro.CrossSection
3D Fixture From Plane ScriptVisionPro.3DStitch
3D Fixture ScriptVisionPro.3DStitch
3D Height Calculation ToolVisionPro.3DRangeTools
3D-Locate APIVisionPro.3DLocate
3D PatMax ToolVisionPro.PatMaxF_3D
VisionPro.PatMaxS_3D		The tool operates with the highest performance possible regardless of which license you are using.
3D Plane Estimation ToolVisionPro.3DStitch
3D Vision Data Rerender ToolVisionPro.3DRangeTools
3D Volume Calculation ToolVisionPro.3DRangeTools
AlignPlus 2D Hand-Eye CalibrationVisionPro.HandEyeCalib2D
Bead Inspect ToolVisionPro.BeadInspect
Blob ToolVisionPro.Blob
Caliper ToolVisionPro.Caliper
Checkerboard Calibration ToolVisionPro.CalibOther Cognex Calibration and Fixturing tools do not check the VisionPro.Calib license.
CNLSearch ToolVisionPro.CnlSearch
VisionPro.CnlSearchSM		VisionPro.CnlSearchSM for using search regions smaller than 8x8.
Color Extractor ToolVisionPro.Color
Color Match ToolVisionPro.Color
Color Segmenter ToolVisionPro.Color
Composite ColorMatch ToolVisionPro.Color
Data Analysis ToolVisionPro.DataAnalysis
Dimensioning ToolsVisionPro.DimensioningFind Line/Circle
Fit Line/Circle/Ellipse/Corner
Edge BlobVisionPro.EdgeBlob & VisionPro.Blob
DS Field Calibrator UtilityVisionPro.CamDSGigE: Single-sensor calibration
VisionPro.CamDSGigE | VisionPro.3DStitch: Multiple-sensor calibration
ID ToolVisionPro.Barcode: 1D symbologies
VisionPro.Symbol: 2D symbologies
VisionPro.SymbolVerifyBasic: Data Matrix symbols with any process control metric enabled
Image Processing ToolsVisionPro.GMorph (ICogIPOneImageGreyMorphology only)Other Image Processing tools do not check this license.
LineMax ToolVisionPro.LineMax
VisionPro.LineMaxMulti		VisionPro.LineMaxMulti for multi-line finding and edgelet-only return
Model MakerVisionPro.ModelMakerUsed to create and edit synthetic models for PMAlign.
Multithreading SupportVisionPro.MultithreadEnables optimized code path for multithreading.
OCRMax ToolVisionPro.OCR: 8-bit images
VisionPro.OCR & VisionPro.16BitTools: 16-bit images
VisionPro.OCR & VisionPro.3DRangeTools: 3D range images
OCV ToolVisionPro.OCV
OCVMax ToolVisionPro.OCVMax
PatInspect ToolVisionPro.PatInspect
PMAlign ToolVisionPro.PatMax
VisionPro.PatQuick (PMAlign tool using only the PatQuick algorithm)
VisionPro.SynthPatMax
VisionPro.PatFlex		VisionPro.PatMax includes the PatQuick and Perspective PatMax algorithms
PMAlign Tool
16-bit (PatMax algorithm)		VisionPro.PatMax &
(VisionPro.16BitTools | VisionPro.3DRangeTools)
PMAlign Tool
16-bit (PatQuick algorithm)		VisionPro.PatQuick &
(VisionPro.16BitTools | VisionPro.3DRangeTools)
PMAlignMultiToolVisionPro.PatMax
VisionPro.PatQuick (PMAlign tool using only the PatQuick algorithm)
Point PatMaxVisionPro.PatMax
SearchMax ToolVisionPro.SearchMax
SearchMax (High Accuracy)VisionPro.HighAccuracyCorrelation
SmartLine ToolVProX.LineMax &
VProx.SmartLine &
VProX.VIDiELSegment
SurfaceFX ToolVisionPro.SurfaceFX
Vision Data Stitch ToolVisionPro.3DStitch
ViDiEL Classify ToolVProX.ViDiELClassify
ViDiEL Segment ToolVProX.ViDiELSegment
ViDiEL OCR ToolVProX.ViDiELOCR
Determining Which Licenses are Enabled

You have several options for determining which licenses are enabled on the USB security key.

Using Cogtool to Display Licenses

Use Cogtool, a utility included with your VisionPro installation, to determine which VisionPro licenses are enabled on your security key.

Enter the following in a command prompt window:

Copy to ClipboardPrint
cogtool --print | more

The output will look similar to the following. Your output depends on the vision tool options you licensed through your Cognex sales representative.

Copy to ClipboardPrint
There is 1 Cognex Security device installed.

  Cognex Security Key v8
    Serial Number: 3-4346701
    Device: Wibu CmStick/C, FW 4.05, FAC: 1
            Certified Time: 2018-04-03.00:22:
      Tools Programmed:
          Cognex.Generic
          Designer.Deployment
          Designer.Development
          Designer.Generic
          VisionPro.16BitTools
          VisionPro.3DAlign
          VisionPro.3DCad
          VisionPro.3DLocate
          VisionPro.3DRangeTools
          VisionPro.3DStitch
          VisionPro.BarCode
...
...

          VisionPro.SymbolVerifyBasic
          VisionPro.SynthPatMax

    Runtime Configuration
      version: 6.60 (meets requirement)
      minimum required version: 6.50

There are 0 Cognex Vision boards installed.

Security Service Configuration
  No compatible services detected.
Viewing Licenses in QuickBuild

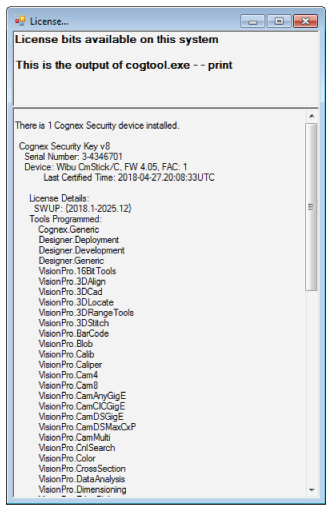

Choose Help->License... from QuickBuild to determine which VisionPro licenses are enabled on your computer. QuickBuild displays a listing similar to the following:

Programming_Tools_Theory_Security_UsingQuickBuild

Using GetLicensedFeatures Method

Use the VisionPro security API and determine which licenses are enabled with the GetLicensedFeatures method within your vision application. The following code example lists each enabled license:

Copy to ClipboardPrint
CogStringCollection licensedFeatures;
licensedFeatures = CogLicense.GetLicensedFeatures(false, false);

foreach (string feature in licensedFeatures)
  System.Console.WriteLine(feature);
