Adding the Edit Control to WinForms Applications

The VisionPro installer includes the SmartLine tool user interface as a Windows Presentation Foundation (WPF) control. Perform the following steps to add this WPF control to your Visual Studio Windows Forms (WinForms) application:

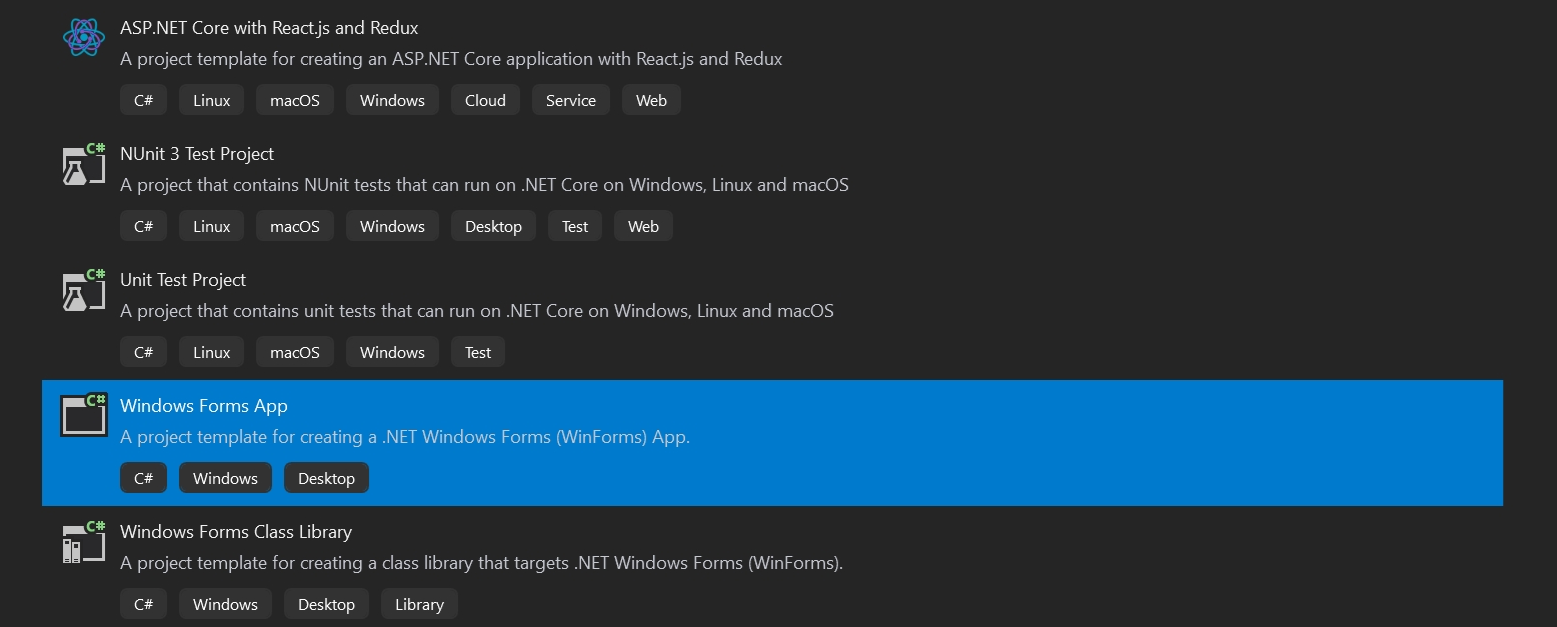

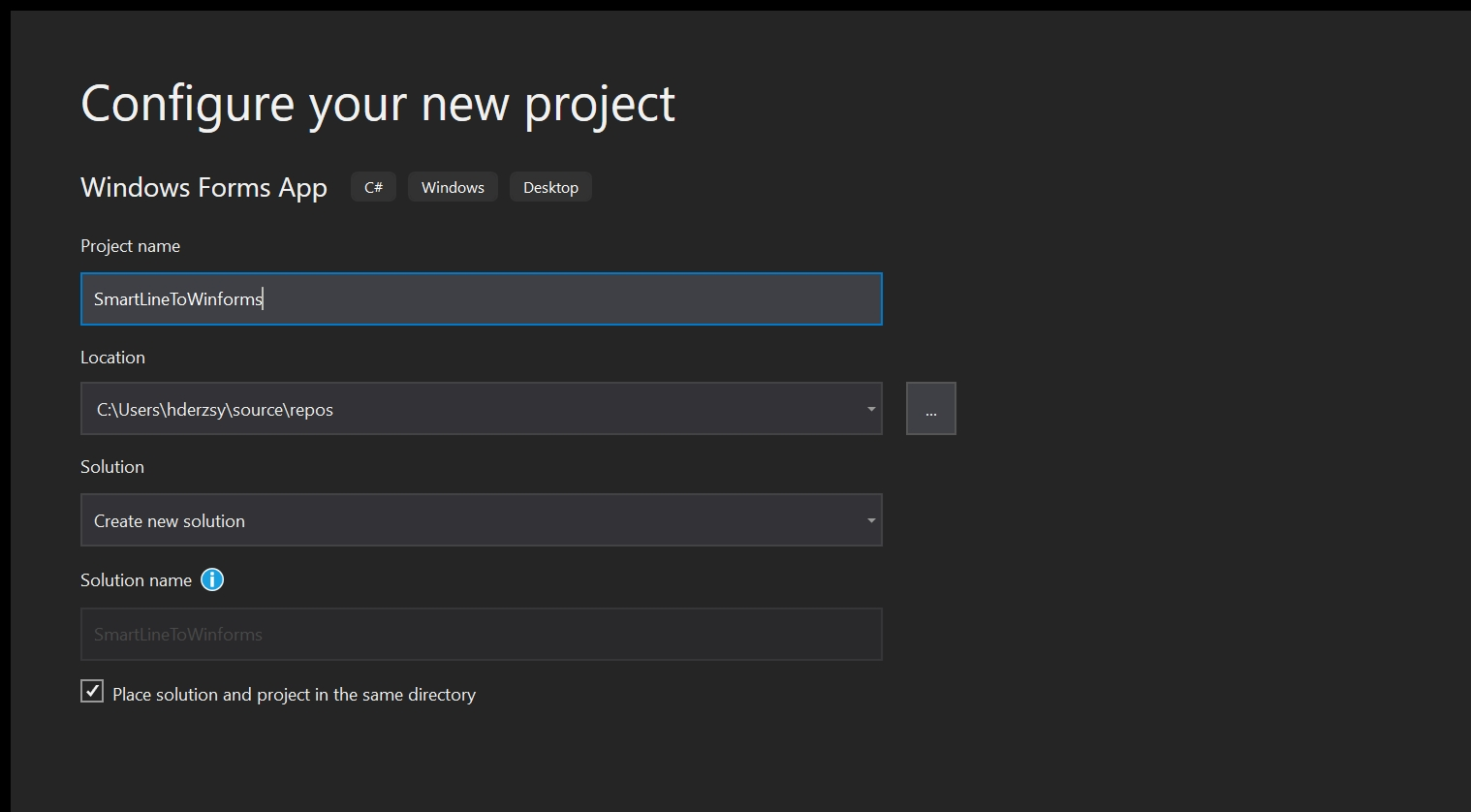

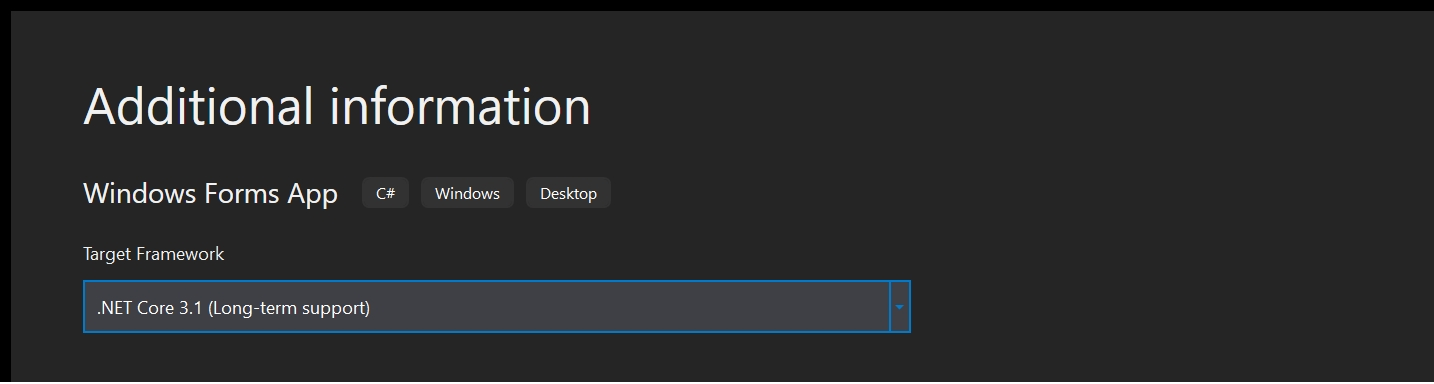

1. Launch Visual Studio and create a Windows Forms App:

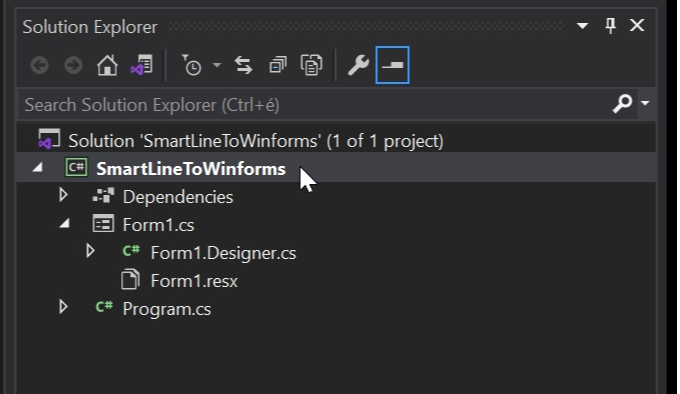

2. Double-click the project file in the Solution Explorer ("SmartLineToWinforms" in this example):

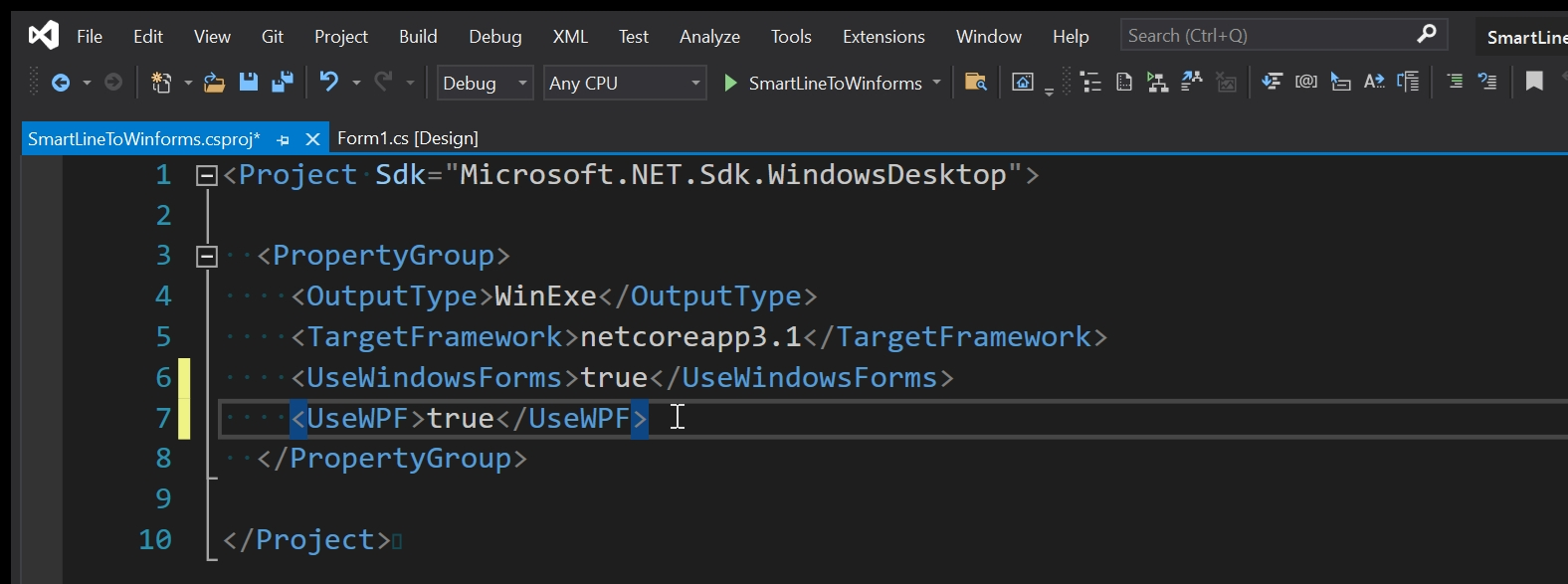

3. Modify the PropertyGroup as shown (use the <UseWPF> line) as shown:

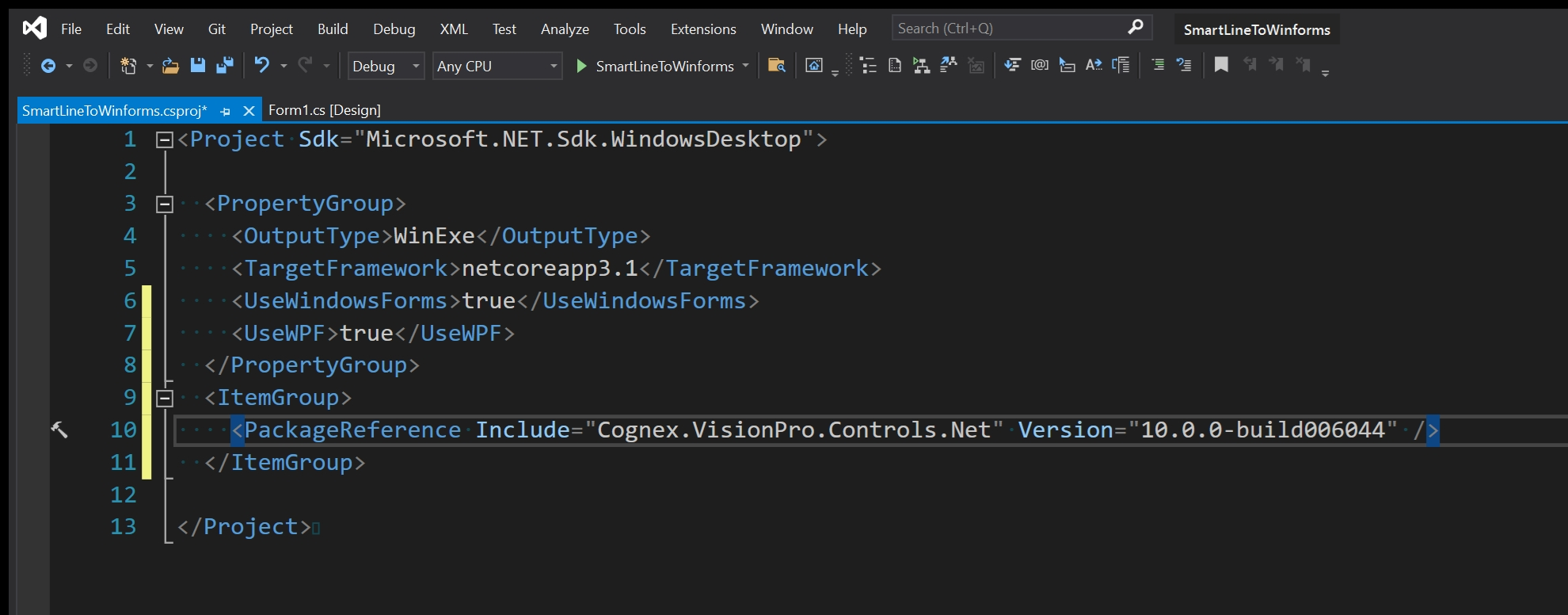

4. Add the reference for the Cognex.VisionPro.Controls.Net package. The following example uses a fixed version but you can specify it with a wildcard (Version="10.0.0-build"):



5. Now click on Build/Build Solution on the toolbar.

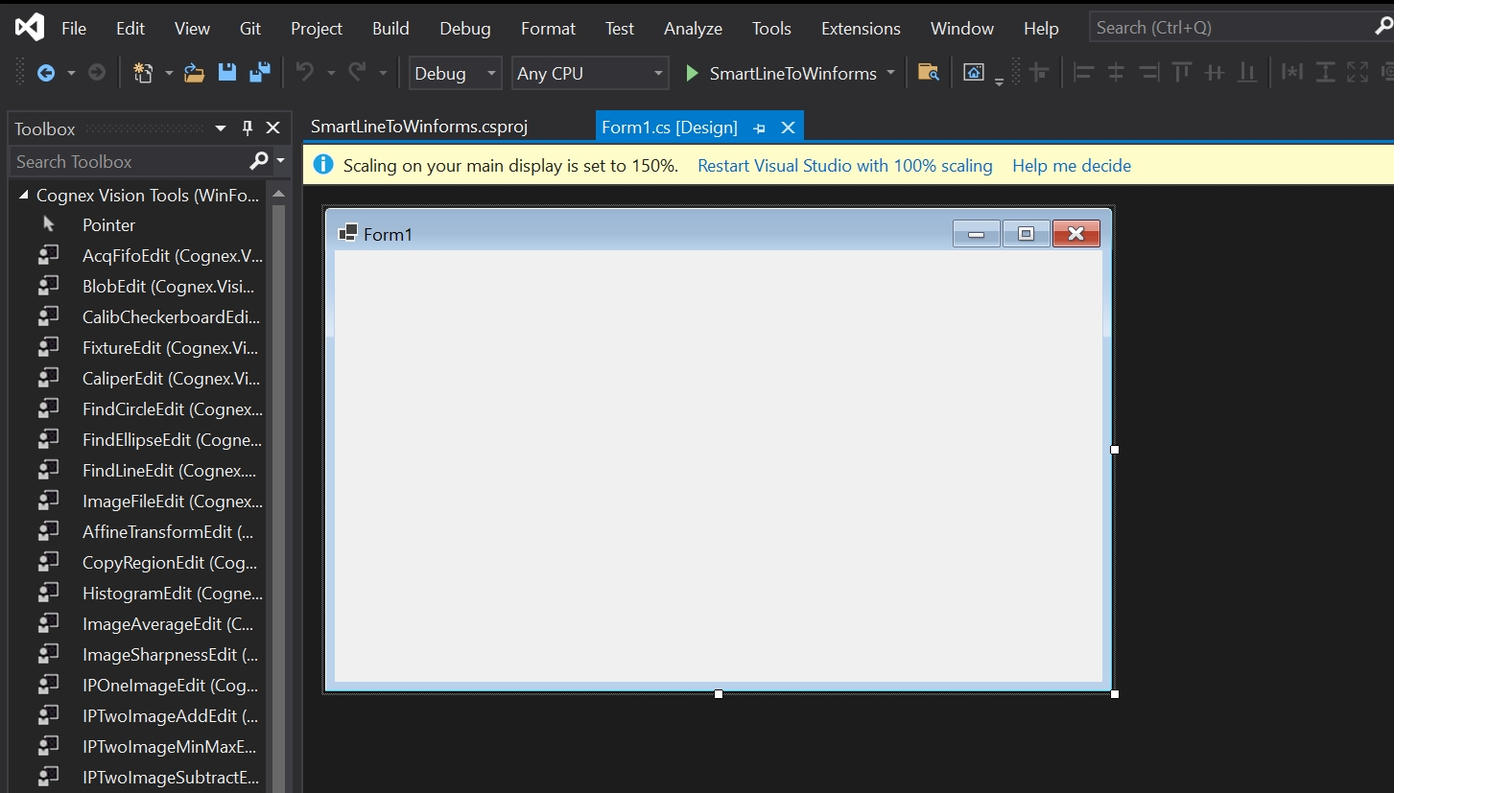

   When it completes, double-click on Form1.cs to open the form:

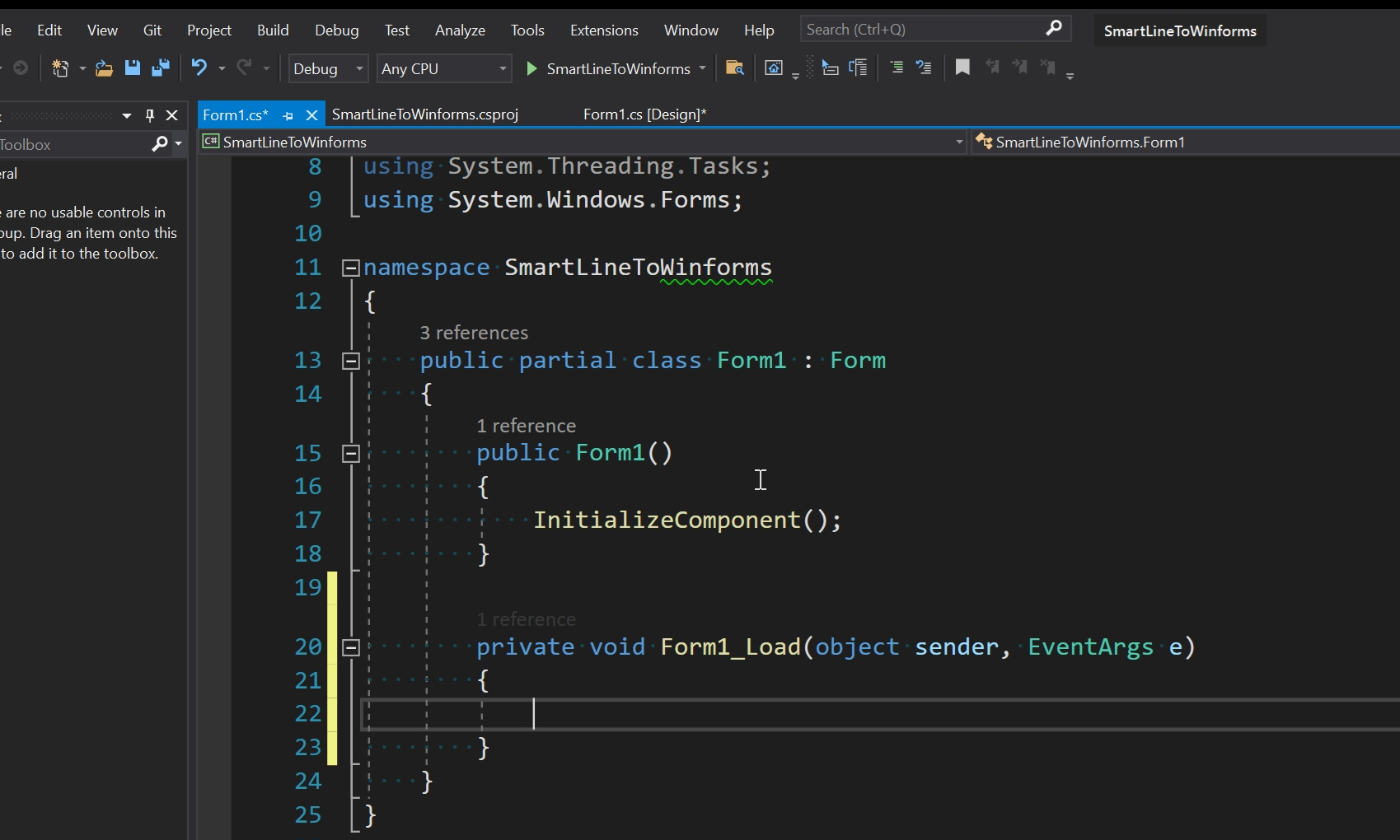

6. Double-click on the form to create the Form1_Load event:

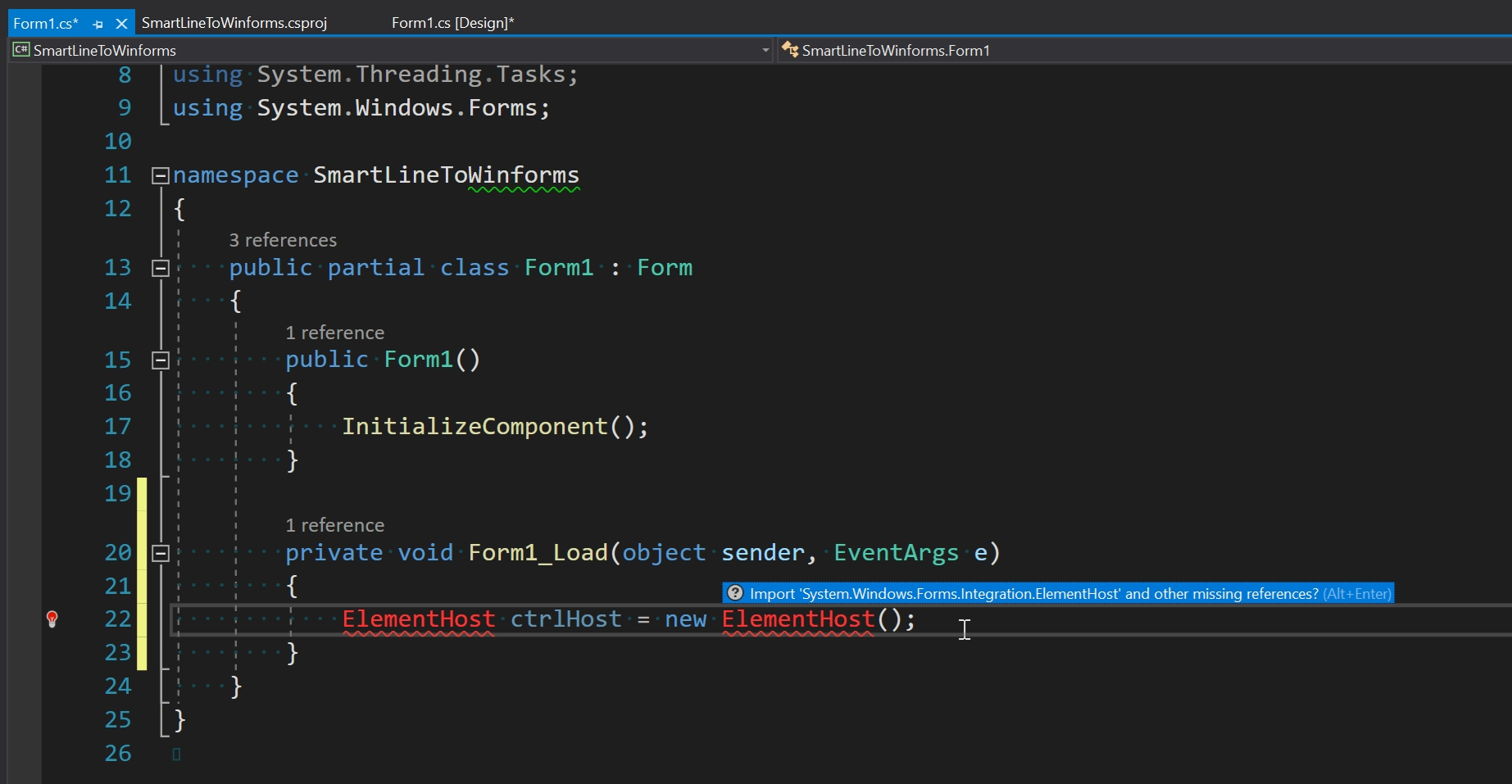

7. Add the line "ElementHost ctrlHost = new ElementHost()" and click on the import message to add System.Windows.Forms.Integration to the using statements:

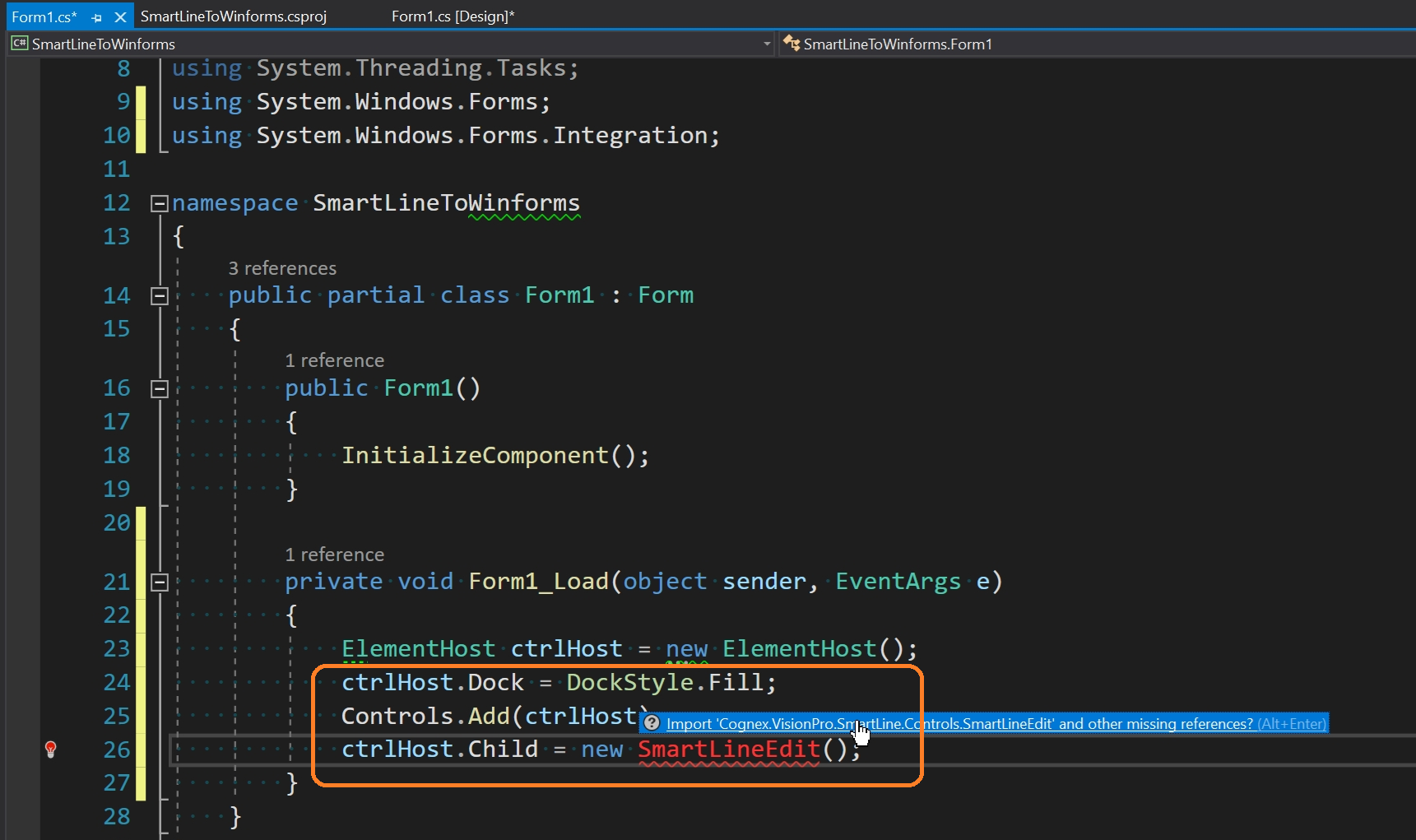

8. Add the following lines to the Form1_Load event:

   • ctrlHost.Dock = DockStyle.Fill;
   • Controls.Add(ctrlHost);
   • ctrlHost.Child = new SmartLineEdit();

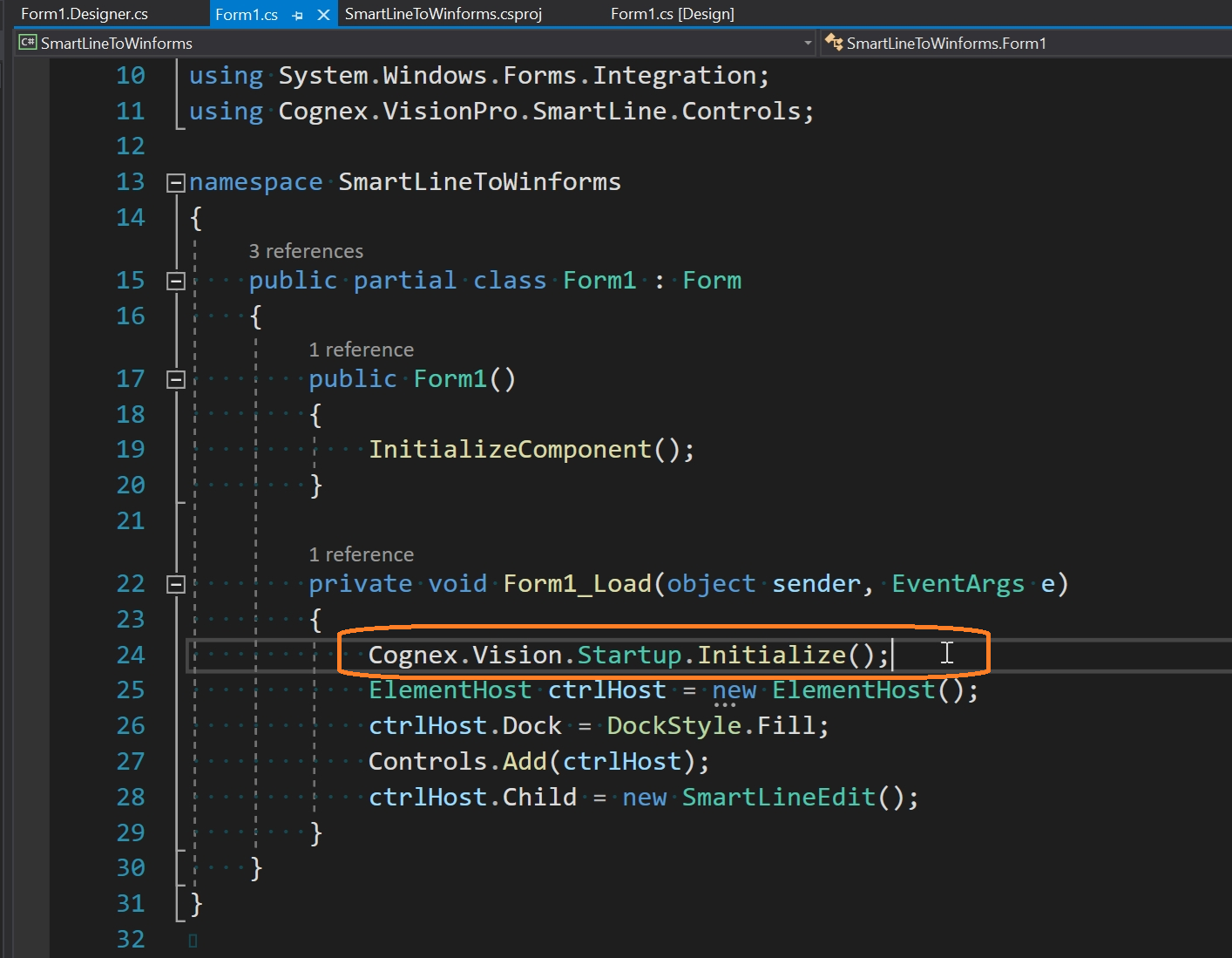

9. Click on the import message to add Cognex.VisionPro.SmartLine.Controls to the using statements, and add the line Cognex.Vision.Startup.Initialize() to the load event:



10. Build the project again and start the application.

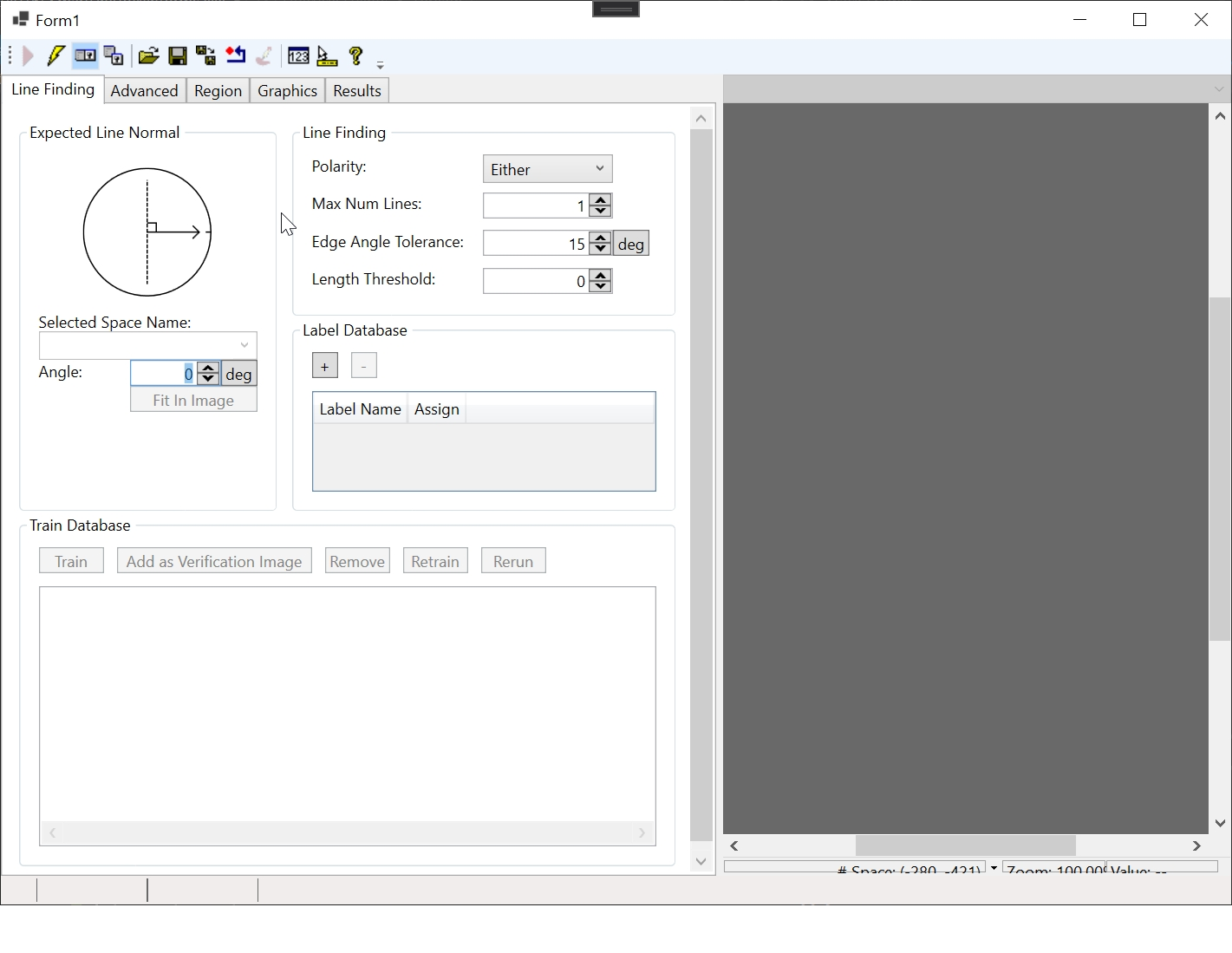

    The SmartLine edit control should appear as shown:
