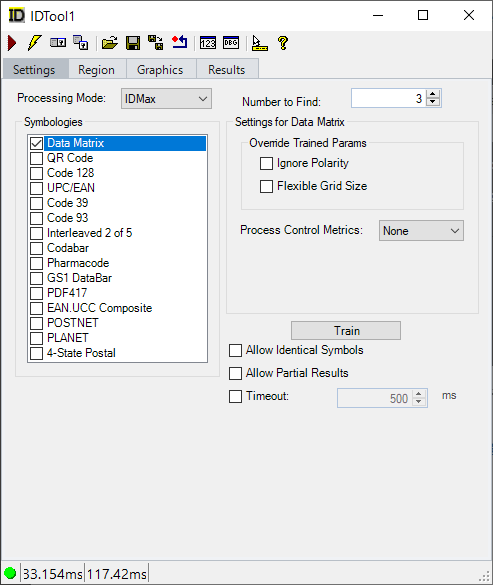

Data Matrix

Choose an optional Process Control Metrics to measure the quality of data matrix symbols.

• AIMDPM
• ISO15415
• SEMIT10

See the section on Processing Modes for more information.

See the following parameters for decoding IDDataMatrix symbols:

• Ignore Polarity: Overrides any trained polarity setting

• Flexible Grid Size: Overrides any trained grid size

• Train: Train the ID tool with 2D symbol parameters based on the current image and the region specified. Training the tool can improve its performance when all the symbols the application will decode share the same characteristics.
