Point Results

Use the Point Results tab to view information about each edge point the calipers found.

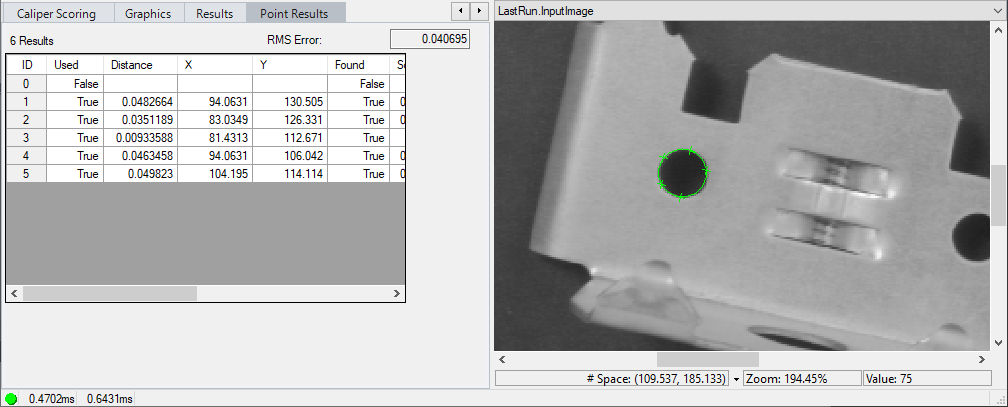

The tab shows the RMS Error of the fitting operation, while the points grid gives the following information about each point result:

Result	Description
ID	Unique ID for this result in the collection
Used	Indicates whether the point was used to perform the circle fit
Distance	The distance from the point to the circle
X	The x-coordinate of the edge point
Y	The y-coordinate of the edge point
Found	Indicates whether the caliper found an edge point or not
Score	The overall score of this result in the range 0.0 - 1.0
Edge 0	The first edge that contributed to this result. In Edge Pair mode, there is a similar column for Edge 1.
Width	The width of the result when using Edge Pair mode
Position	A signed measurement along the search direction relative to the center of the input region.
Contributing Scores	The remaining columns list the individual results of the enabled scoring functions within the list created on the Scoring tab. Functions are identified by both the function name and their index within the collection of scoring functions.
