Displaying 1D Caliper ImagesCognex VisionPro

This topic contains the following sections.

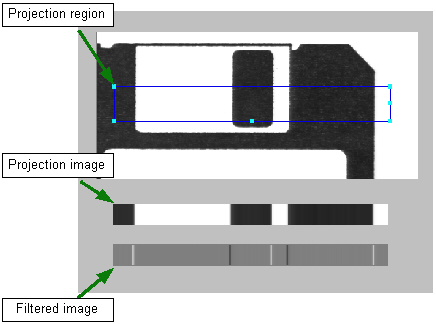

Each CogCaliperResults object includes two 1-dimensional images, the GetProjectionValues and the GetFilteredValues.

This topic shows you how to create displayable versions of these images.

Measurement Caliper Walkthrough Display 1DImages Howto Display 1D Images splash

Construct a Synthetic Image of the Projection Values Array

Because the GetProjectionValues method returns an array of type Double, you must convert the elements into Byte values. To display the values, you must set the pixels in a CogImage8Grey to the values in the array by following the steps shown below.

Copy to ClipboardPrint
// Create and allocate pixels for display image
CogImage8Grey coDispImage = new CogImage8Grey(coCal.Results.GetProjectionValues().Length, 40);

// Populate the image's pixels from the projection image
for (int i = 0; i < 39; ++i)
    for (int j = 0; j < coCal.Results.GetProjectionValues().Length -1; ++j)
        coDispImage.SetPixel(j, i, (Byte) coCal.Results.GetProjectionValues()[j]);
Construct a Synthetic Image of the Filtered Values Array

The GetFilteredValues method also returns an array of type Double, but unlike the projection image, it has values in the range from -255 through +255. In addition to converting these values to Byte, you must also adjust the range of values to be from 0 through 255.

Copy to ClipboardPrint
// Create and allocate pixels for display image
CogImage8Grey coSynImage = new CogImage8Grey(coCal.Results.GetFilteredValues().Length, 40);

// Populate the image's pixels from the filtered image
for (int i = 0; i < 39; ++i)
    for (int j = 0; j < coCal.Results.GetFilteredValues().Length - 1; ++j)
        coSynImage.SetPixel(j, i, (Byte)((coCal.Results.GetFilteredValues()[j] + 255) / 2));
