Adding Edit Controls to Visual StudioCognex VisionPro 9.21 SR1

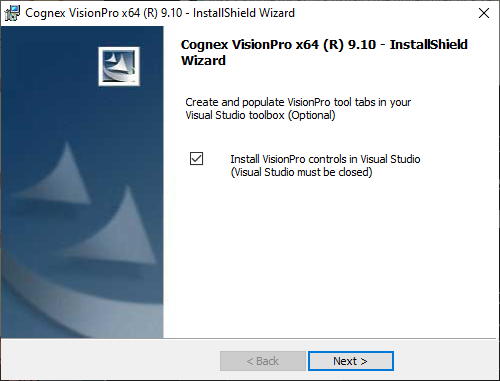

During a typical VisionPro installation, the installer launches an optional VisionPro Edit Control extension to populate the tool palette in Microsoft Visual Studio with the latest set of VisionPro edit controls:

Programming_General_Theory_VS2008_ExtensionWizard

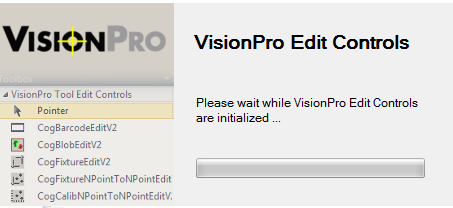

The extension finishes populating the tool palette the next time you launch Visual Studio:

Programming_General_Theory_VS2008_VSDone

  • Be aware that automated installation of VisionPro edit controls is not supported for Visual Studio Express.
  • If you did not allow the VisionPro Edit Control extension to run during the installation, you can launch it anytime later by running the extension package [VPRO32_ROOT]\bin\VisionProEditControl.vsix.
