CCB-PWRIO-05
The Power and I/O Breakout cable provides access to trigger and high-speed outputs.

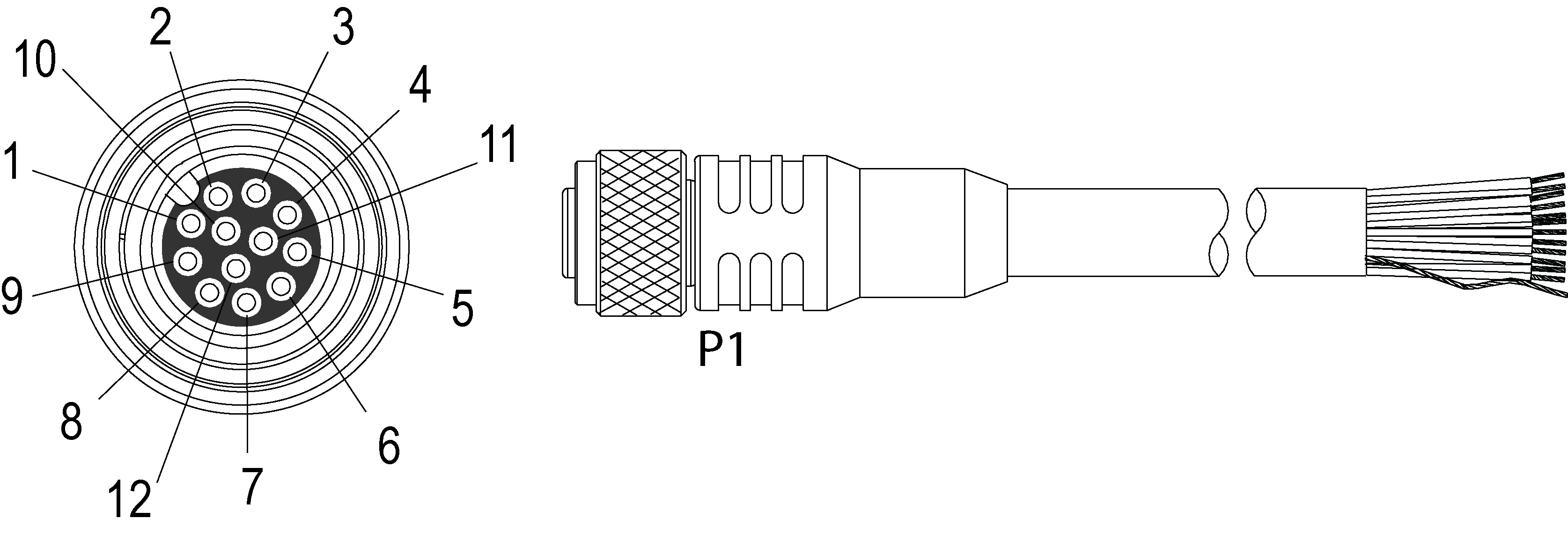

The figure on the left shows the plug on the device.
|
||
|---|---|---|
| Pin# | Signal Names | Wire Color |
| 1 | Out 2 | Yellow |
|
2 |
TxD Note: Not supported.
|
White/Yellow |
|
3 |
RxD Note: Not supported.
|
Brown |
| 4 | Out 3 | White/Brown |
| 5 | In 1 | Violet |
| 6 | Common In | White/Violet |
| 7 | +24 VDC | Red |
| 8 | GND | Black |
| 9 | Common Out | Green |
| 10 | In 0 | Orange |
| 11 | Out 0 | Blue |
| 12 | Out 1 | Grey |
Note:
- Cables are sold separately.
- Perform wiring or adjustments to I/O devices when the vision sensor is not receiving power.
- You can cut exposed wires short or trim wire ends. You also can tie the wires back if you use a tie made of non-conductive material. Keep bare wires separated from the +24 V DC wire.
