Mounting the Vision Sensor
The vision sensor provides mounting holes for attachment to a mounting surface.
CAUTION: The vision sensor has to be grounded, either by mounting the vision sensor to a fixture that is electrically grounded or by attaching a wire from the vision sensor’s mounting fixture to frame ground or Earth ground. If a ground wire is used, it has to be attached to one of the mounting points on the bottom plate of the vision sensor and not to the mounting points on the front of the vision sensor.

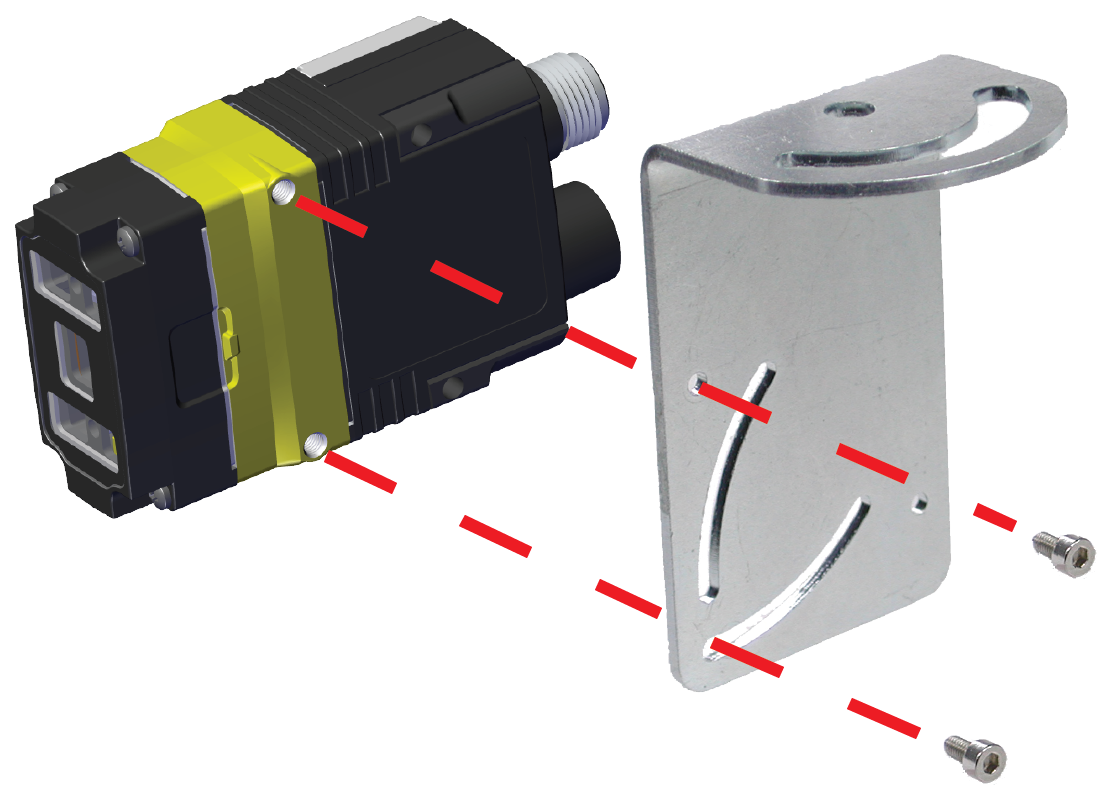

Align the holes on the mounting surface with the mounting holes on the vision sensor. Insert the M3X3.5 screws into the mounting holes.
Note:

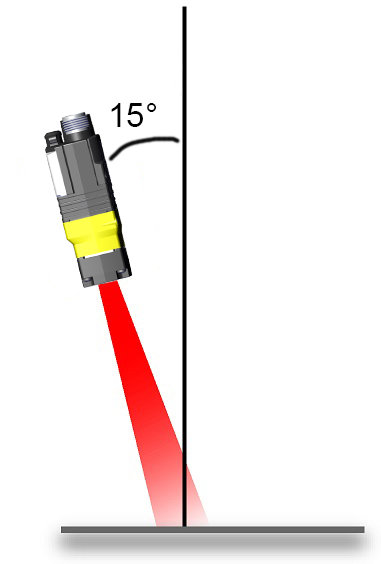

Mounting the vision sensor at a slight angle (15°) reduces reflections and improves performance.
