In-Sight 3916 and 3925 Lenses

The following table shows the lenses compatible with the In-Sight 3916 and 3925 vision systems:

Accessory	Product Number	Illustration	IS3916 (8 MP mode)	IS3916 (12 MP mode)	IS3916	IS3925	Compatible Lens Covers

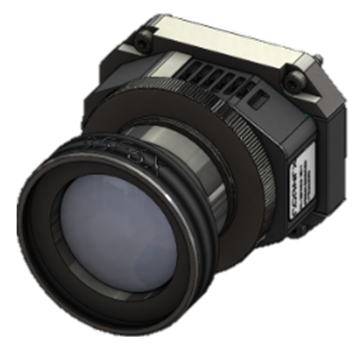

16 mm HSLL - high resolution	CLN-C16F65-HSLL-HR		✓	✓			60, 75 mm lens covers
25 mm HSLL - high resolution	CLN-C25F65-HSLL-HR		✓	✓
35 mm HSLL - high resolution	CLN-C35F06-HSLL-HR		✓	✓

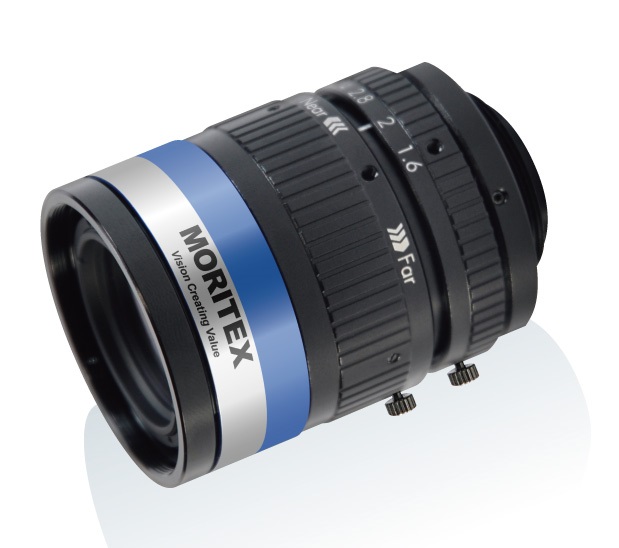

6 mm Moritex SR series lens	ML-U0618SR-18C		✓	✓	✓		N/A, Cognex recommends using connector covers (380-CON-PLUGS)
8 mm Moritex SR series lens	ML-U0817SR-18C		✓	✓	✓
12 mm Moritex SR series lens	ML-U1217SR-18C		✓	✓	✓		75 mm lens cover
16 mm Moritex SR series lens	ML-U1615SR-18C		✓	✓	✓
25 mm Moritex SR series lens	ML-U2515SR-18C		✓	✓	✓
35 mm Moritex SR series lens	ML-U3518SR-18C		✓	✓	✓		60, 75 mm lens covers
50 mm Moritex SR series lens	ML-U5022SR-18C		✓	✓	✓

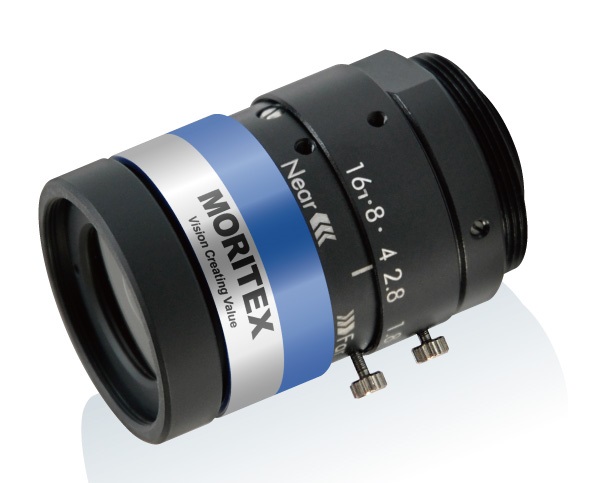

100 mm Moritex UR series lens (supporting 2.5-micron pixels)	ML-U10028UR-18C		✓	✓	✓		75 mm lens cover

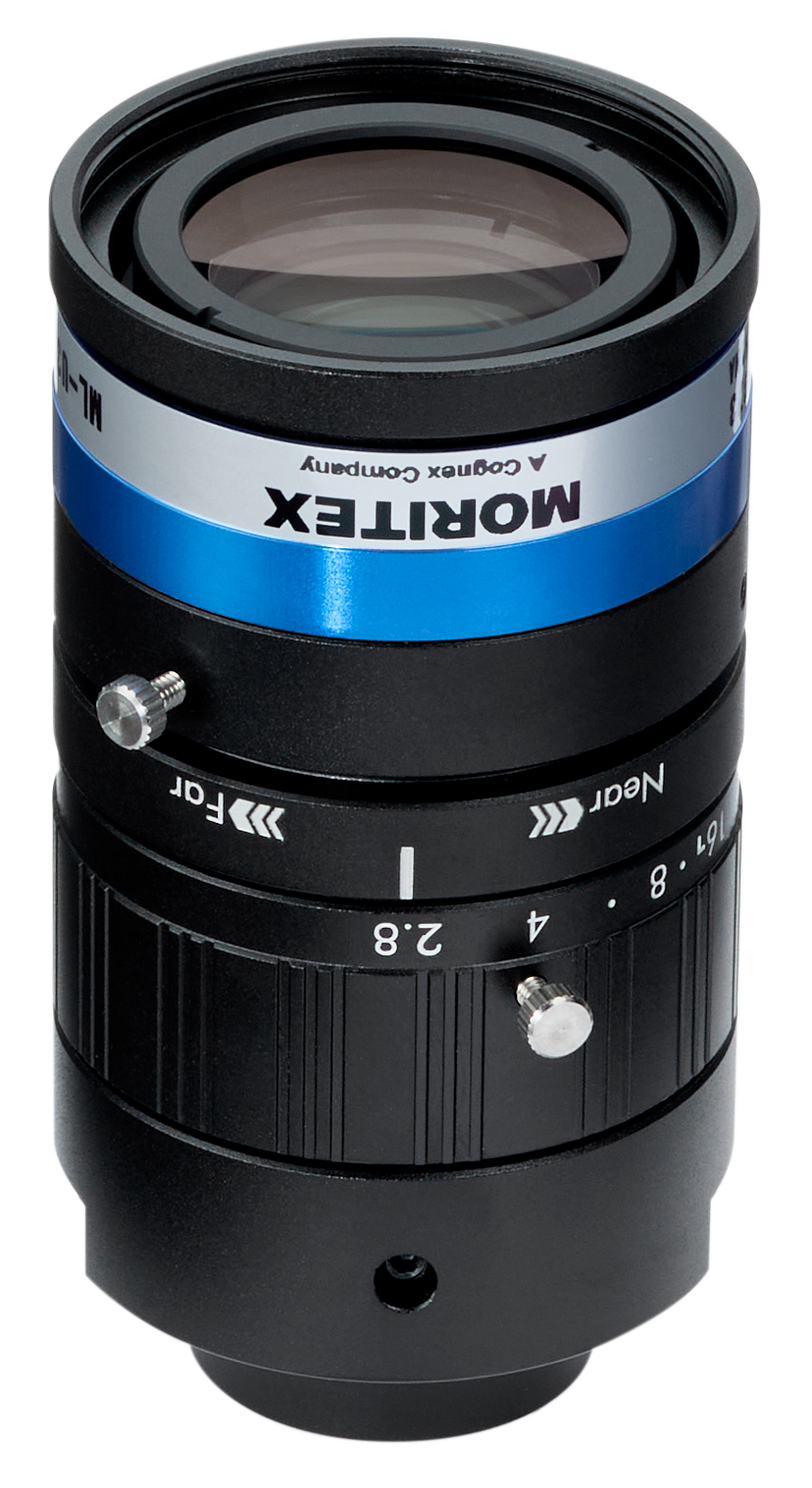

8 mm Moritex ZR series lens	ML-U0828ZR-19C		✓	✓	✓	✓	N/A, Cognex recommends using connector covers (380-CON-PLUGS)
12 mm Moritex ZR series lens	ML-U1228ZR-19C		✓	✓	✓	✓	75 mm lens cover
16 mm Moritex ZR series lens	ML-U1628ZR-19C		✓	✓	✓	✓
25 mm Moritex ZR series lens	ML-U2528ZR-19C		✓	✓	✓	✓
35 mm Moritex ZR series lens	ML-U3528ZR-19C		✓	✓	✓	✓
50 mm Moritex ZR series lens	ML-U5028ZR-19C		✓	✓	✓	✓
