Write Job

Sends a job A job is a user-configured program in In-Sight EasyBuilder consisting of functions and designed for specific applications. You can create and edit jobs using the In-Sight EasyBuilder interface, and load them on a vision system for deployment in a live environment. to the specified In-Sight job slot in flash memory on the In-Sight vision system.

Write Job Inputs

Syntax: WJ<ID><Filename><Size><Data><Checksum>

The command and ID are sent on a separate line, followed by the lines of job data, which must be an exact copy of the data received from a Read Job command.

Parameter	Description
ID	The job ID number (0 to 999).

The lines of job data are:

Parameter	Description
Filename	The first line contains the job name.
Size	The second line contains an integer value in bytes for the size of the job.
Data	The actual job data is encoded as ASCII hexadecimal values formatted to 80 characters per line. Each line ends with a terminating character.
Checksum	The last line contains four ASCII hexadecimal bytes that are a checksum of the job data.

Write Job Outputs

Returns a status code, followed by a line terminator. The status codes are:

Status Codes	Description
1	The command was executed successfully.
0	Unrecognized command.
-1	The job ID number is outside the allowed range (0 to 999).
-2	The job could not be written, or the job data is invalid.
-3	The checksum failed. The checksum does not match the job data.
-4	The In-Sight vision system is out of memory.
-6	User does not have Full Access to execute the command.

Write Job Example

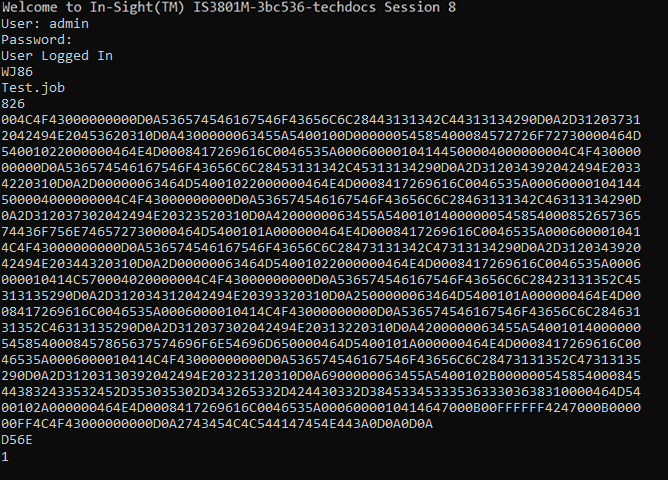

To write job data to the job named 86Test.jobx, issue the following command: WJ86

After issuing the command, input the job name (Test.jobx), followed by the size (826) in bytes. Next, input each ASCII hexadecimal byte of the job file. Finally, input the four ASCII hexadecimal checksum bytes on the last line (D56E).

The In-Sight vision system responds with 1, indicating that the job was successfully sent to the flash memory of the vision system.
