Store File
Saves the current job A job is a user-configured program in In-Sight EasyBuilder consisting of functions and designed for specific applications. You can create and edit jobs using the In-Sight EasyBuilder interface, and load them on a vision system for deployment in a live environment.
in the flash memory on the In-Sight vision system
-
The Store File command only works if you have not saved the current job yet.
- To save the current job file to the RAMDisk folder of the In-Sight vision system with the specified filename, the syntax is: TFRAMDisk/[Filename]. For example, to save the file Test.jobx to the RAMDisk folder of the vision system, issue the following command: TFRAMDisk/Test.jobx.
- To save the current job file to the SD card folder of the vision system with the specified filename, the syntax is TFSDCARD/[Filename]. For example, to save the file Test.jobx stored to the SD card folder of the vision system, perform the following command: TFSDCARD/Test.jobx.
Store File Inputs
Syntax: TF<Filename>
|
Parameter |
Description |
|---|---|
|
Filename |
The name of the job. The command executes with or without the .JOBX extension. |
Store File Outputs
Returns a status code, followed by a line terminator. The status codes are:
| Status Codes | Description |
|---|---|
| 1 |
The command executes successfully. |
| 0 |
Unrecognized command. |
| -1 |
The filename is missing. |
| -2 |
The job fails to save, the file is not found and therefore the command cannot execute. |
| -6 |
User does not have Full Access to execute the command. |
Store File Example

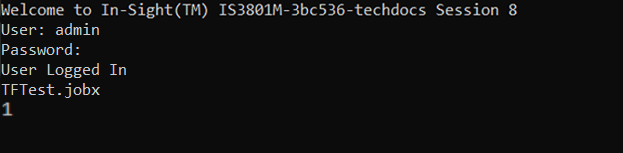

To name the current job Test and save it in flash memory on the In-Sight vision system, issue the following command:
TFTest.jobx
The In-Sight vision system responds with 1, indicating that the save operation of the current job is successful.
