Set Job
Loads a job A job is a user-configured program in In-Sight EasyBuilder consisting of functions and designed for specific applications. You can create and edit jobs using the In-Sight EasyBuilder interface, and load them on a vision system for deployment in a live environment. from one of the job slots in flash memory on the In-Sight vision system, making it the active job.
- The In-Sight vision system must be Offline.
- To use the job ID number, the job must be saved with a numerical prefix of a positive value (from 0 to 2147483647).
Set Job Inputs
Syntax: SJ<ID>
| Parameter | Description |
|---|---|
| ID | The ID number of the job to load (0 to 2147483647). |
Set Job Outputs
Returns a status code. The status codes are:
| Status Codes | Description |
|---|---|
| 1 |
The command was executed successfully. |
| 0 |
Unrecognized command. |
| -1 |
The ID is less than 0, or is not an integer. |
| -2 |
The job failed to load, the vision system is Online or the file was not found, therefore the command could not be executed. |
| -4 | The In-Sight vision system is out of memory. |
| -6 |
User does not have Full Access to execute the command. |
Set Job Example

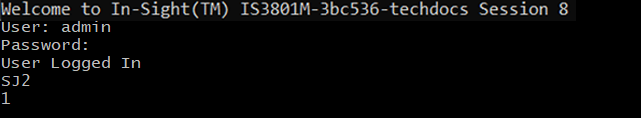

To load 2Test.jobx as the active job on the In-Sight vision system, issue the following command: SJ2
The In-Sight vision system responds with 1, indicating that the job was successfully loaded and made active.
