Delete Job
Deletes the job A job is a user-configured program in In-Sight EasyBuilder consisting of functions and designed for specific applications. You can create and edit jobs using the In-Sight EasyBuilder interface, and load them on a vision system for deployment in a live environment. from the specified slot in flash memory on the In-Sight vision system.
- The In-Sight vision system must be Offline.
Delete Job Inputs
Syntax: DJ<ID>
| Parameter | Description |
|---|---|
|
ID |
The job ID number (0 to 999). |
Delete Job Outputs
Returns a status code. The status codes are:
| Status Codes | Description |
|---|---|
|
1 |
The command was executed successfully. |
|
0 |
Unrecognized command. |
|
-1 |
The job ID number is outside the allowable range (0 to 999). |
|
-2 |
The job could not be deleted, the vision system is Online, or the job slot is empty, therefore the command could not be executed. |
|
-6 |
User does not have Full Access to execute the command. |
Delete Job Example

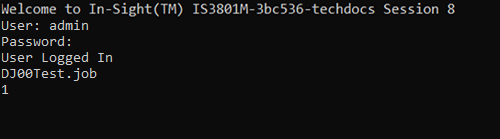

To delete the job Test.job from slot 0 on the In-Sight vision system, issue the following command: DJ00Test.job
The In-Sight vision system responds on the following line with the status code of 1, indicating that the job was deleted successfully.
