Illumination Options for In-Sight 2800

The following illumination options are available for In-Sight 2800 vision systems:

  • Multi Torch:

    The Multi Torch is a high-powered integrated multi-color light module. The Multi Torch is available with RED, GREEN, BLUE, and WHITE colors in a single package, or as an IR variant that also features an IR bandpass filter built into the lens. The Multi Torch is compatible with vision system using 8, 12, or 16 mm lens.

  • High-Powered Illumination Accessory (HPIA):

    The High-Powered Illumination Accessory is a wide-angle light available in WHITE color option with polarization screen and power Y-cable included. The HPIA is compatible with the In-Sight 2800 vision system using 6.2 or 16 mm lens.

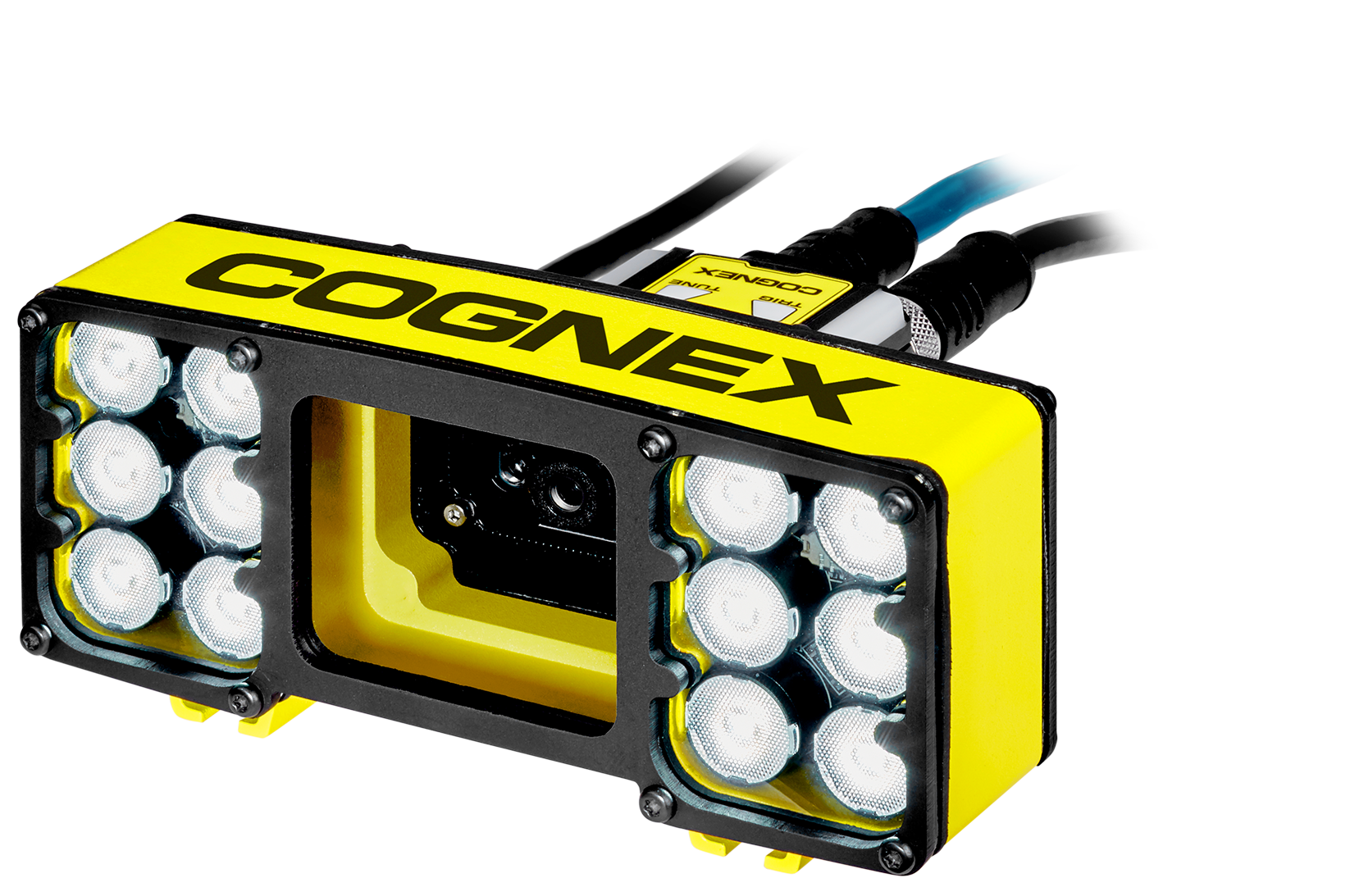

    The image shows the High-Powered Illumination Accessory for the In-Sight 2800 vision system.

  • High Powered Illumination for 16 mm lens:

    High-powered integrated light attachments are available in RED or WHITE color options for In-Sight 2800 Mini vision systems using a 16 mm lens.

  • Standard Illumination for 6.2 mm lens:

    Integrated light attachments are available in RED, WHITE, BLUE, or IR options for In-Sight 2800 Mini vision systems using a 6.2 mm lens. The IR option also features an IR bandpass filter built into the lens.
