Cables

Note: Cables are sold separately.
Accessory Product Number Illustration

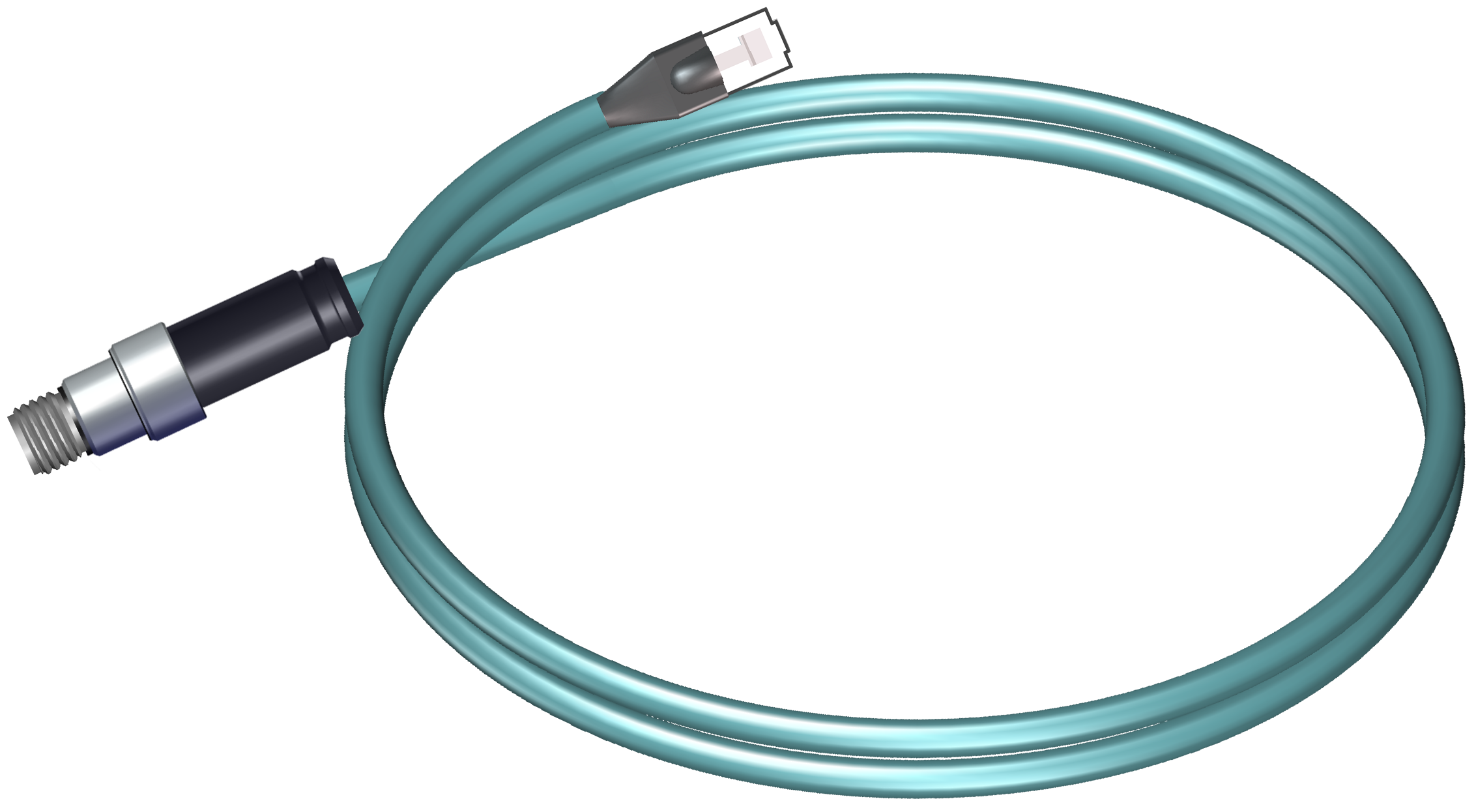

Ethernet Cable, X-coded M12-8 to RJ-45 CCB-84901-2001-xx (straight, xx specifies length: 2m, 5m, 10m, 15m, 30m)

Ethernet Cable, X-coded M12-8 to RJ-45 CCB-84901-2002-xx (right-angled, xx specifies length: 2m, 5m, 10m)

Ethernet Cable, Robotic X-Coded M12-8 to RJ-45 CCB-84901-2RBT-xx (straight, xx specifies length: 2m, 5m, 10m)

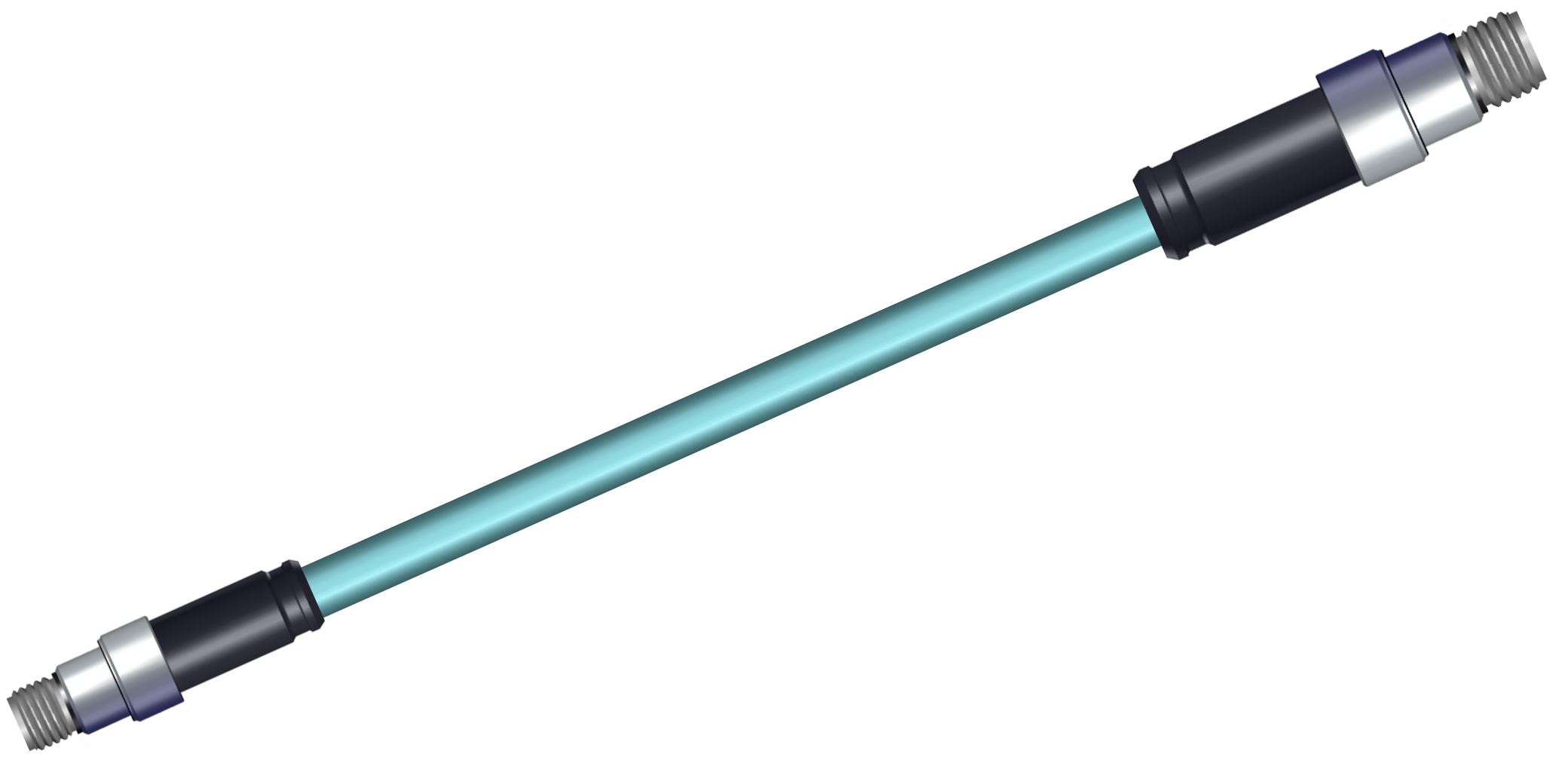

X-Coded to A-Coded Ethernet cable adapter, 0.5 m CCB-M12X8MS-XCAC

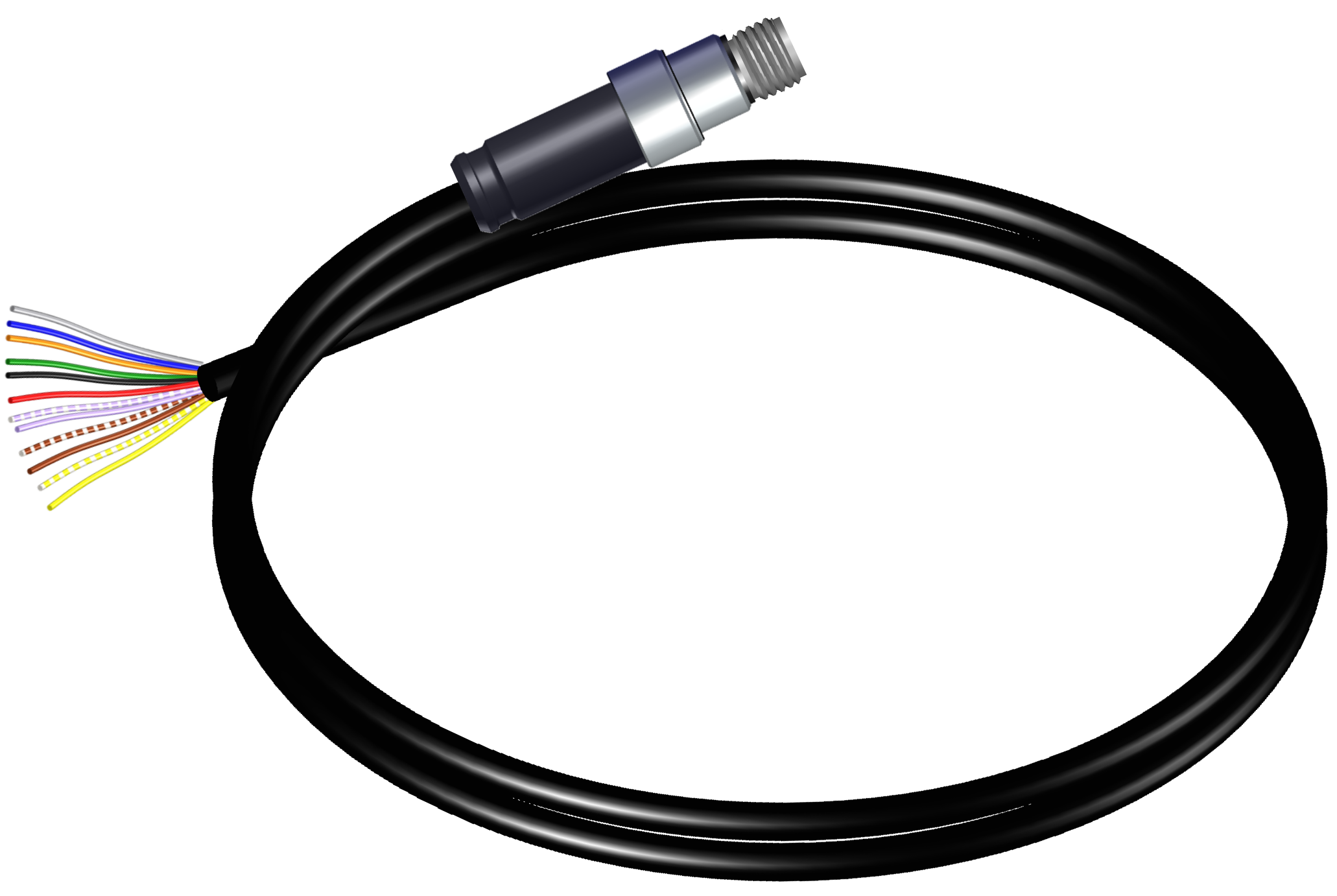

Power and I/O Breakout Cable, M12-12 to Flying Lead CCB-PWRIO- xx (straight, xx specifies length: 5m, 10m, 15m)

Power and I/O Breakout Cable, M12-12 to Flying Lead CCB-PWRIO-xxR (right-angled, xx specifies length: 5m, 10m, 15m)

I/O Module Cable CCB-PWRIO-MOD-xx (xx specifies length: 2m, 5m)

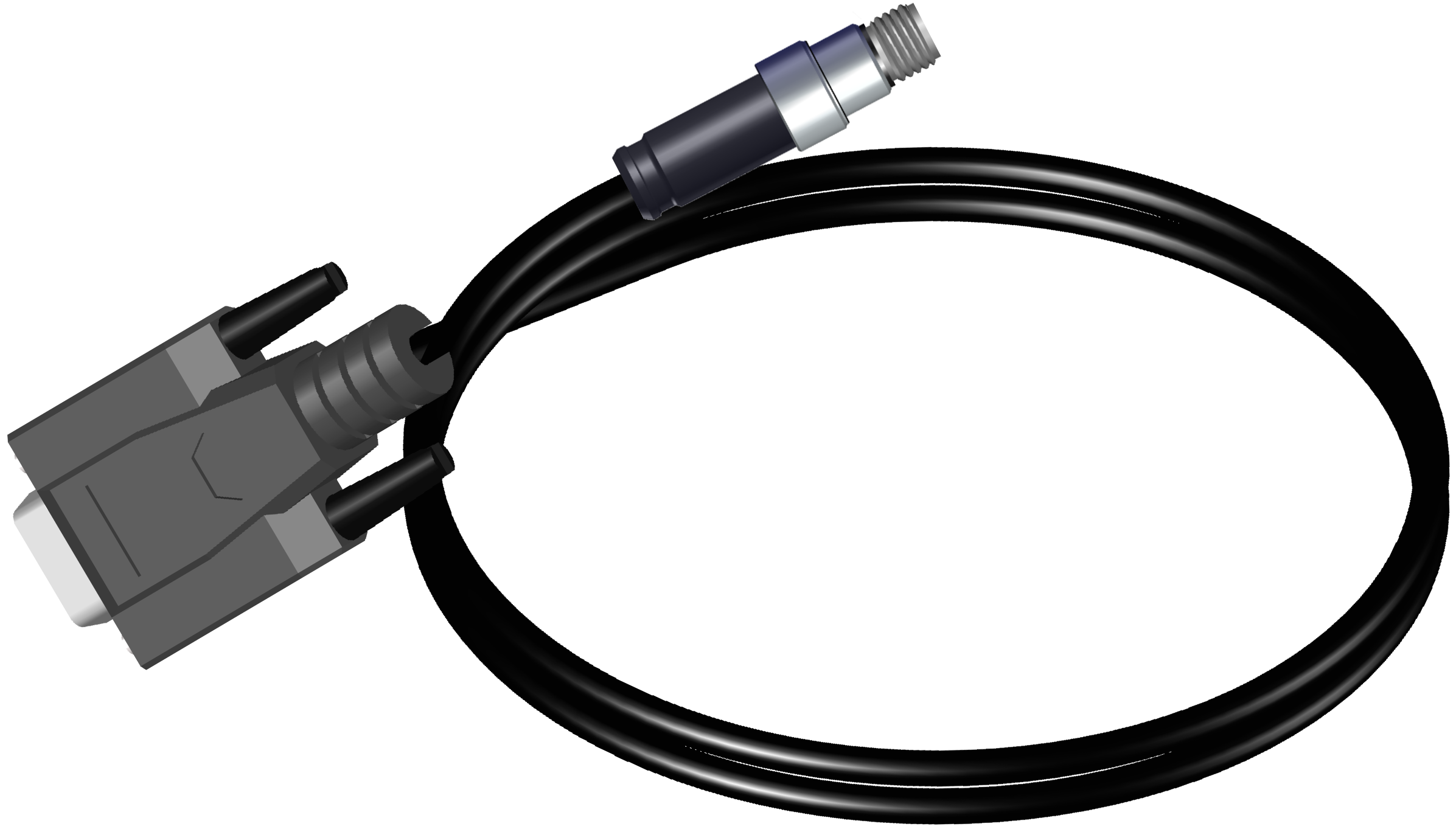

RS-232 Connection Cable CCB-M12xDB9Y-05

I/O Extension Cable CKR‑200‑CBL‑EXT

Lighting Cable, Y Split of Power/IO CCB-M12-IVSL-Y The image shows the Lighting Cable with Y Split of Power/IO.
