Encoder Wiring

If your vision system is configured for encoder input, you can connect both differential and single-ended encoders. Using an encoder allows you to specify input and output delay values in pulse counts instead of real-time units.

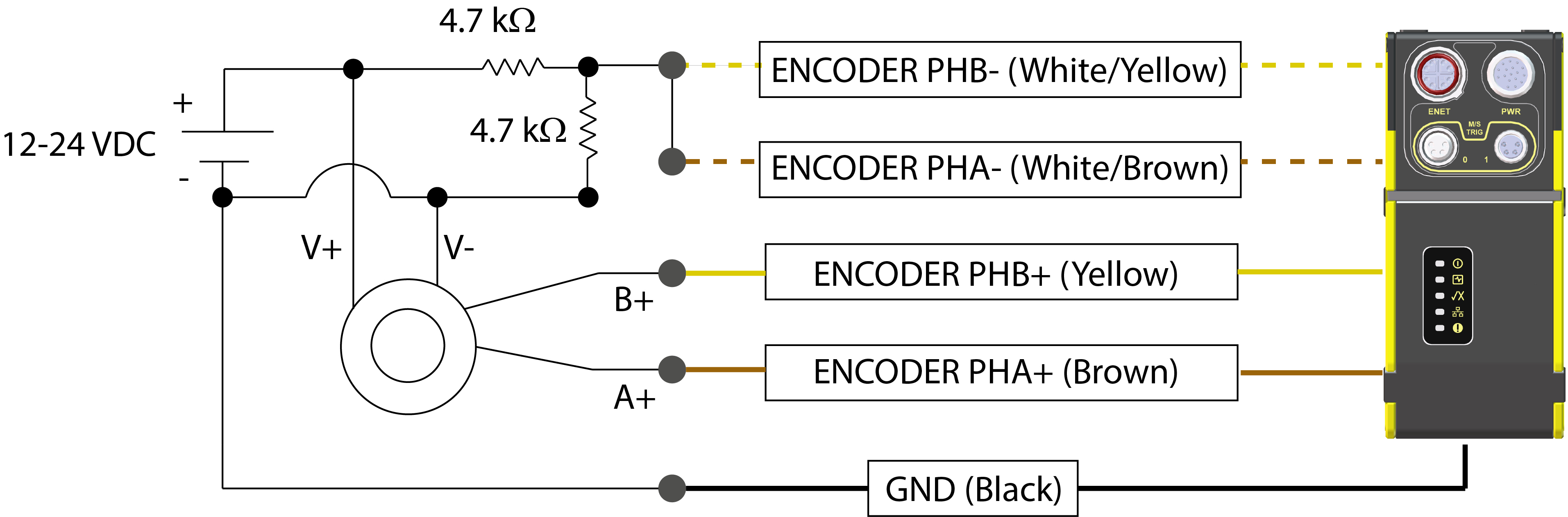

• Single-ended encoder wiring:



• Differential encoder wiring:

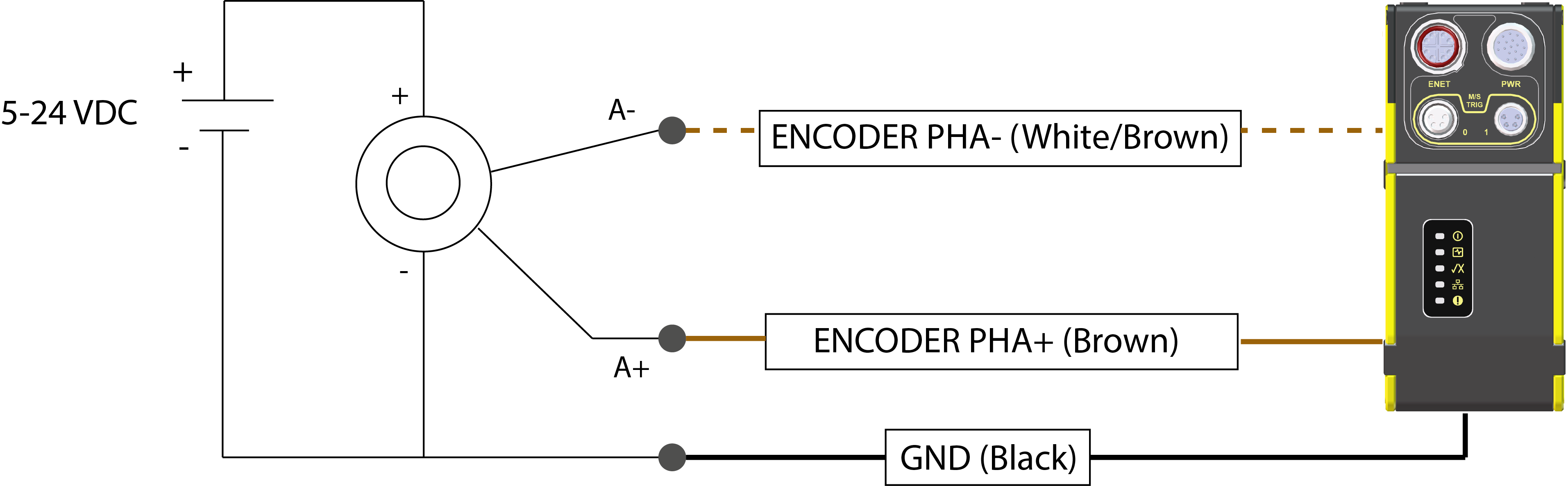

• Single channel encoder wiring:
