Results Queue

The Results Queue is a filmstrip where you can see retained results from all inspections in four groups of images, based on the settings:

  • Pass and Fail Results
  • Pass Results
  • Fail Results
  • Separate Pass and Fail Results

To turn on and set this function Functions are tools that are available in Spreadsheet for processing and analyzing acquisitions or other results. You can add functions to your Spreadsheet job to create tool chains and produce results for specific applications., see Result Queue Settings in Menu Bar – Sensor.

Note: You can only enable or disable the Results Queue while the vision system is in offline mode. For more information on modes, see Online and Offline. You can add images and results to the Result Queue while the vision system is Online.

After enabling, the Results Queue appears in the WebHMI The operator interface through which the operator interacts with the vision system. screen when configured correctly. In order to view the Results Queue in the WebHMI, make sure that the vision system is Online, and you are disconnected from the vision system in the In-Sight Vision Suite.

With the Results Queue, you can:

  • Display spreadsheet contents and tool results or graphics for the selected Results Queue entry in the WebHMI.
  • Configure Pass/Fail conditions as an Inspection sheet cell reference, where 0 means fail, any other value means pass.
Note: As the filmstrip shows an earlier inspection, the settings cannot be changed in the Results Queue.

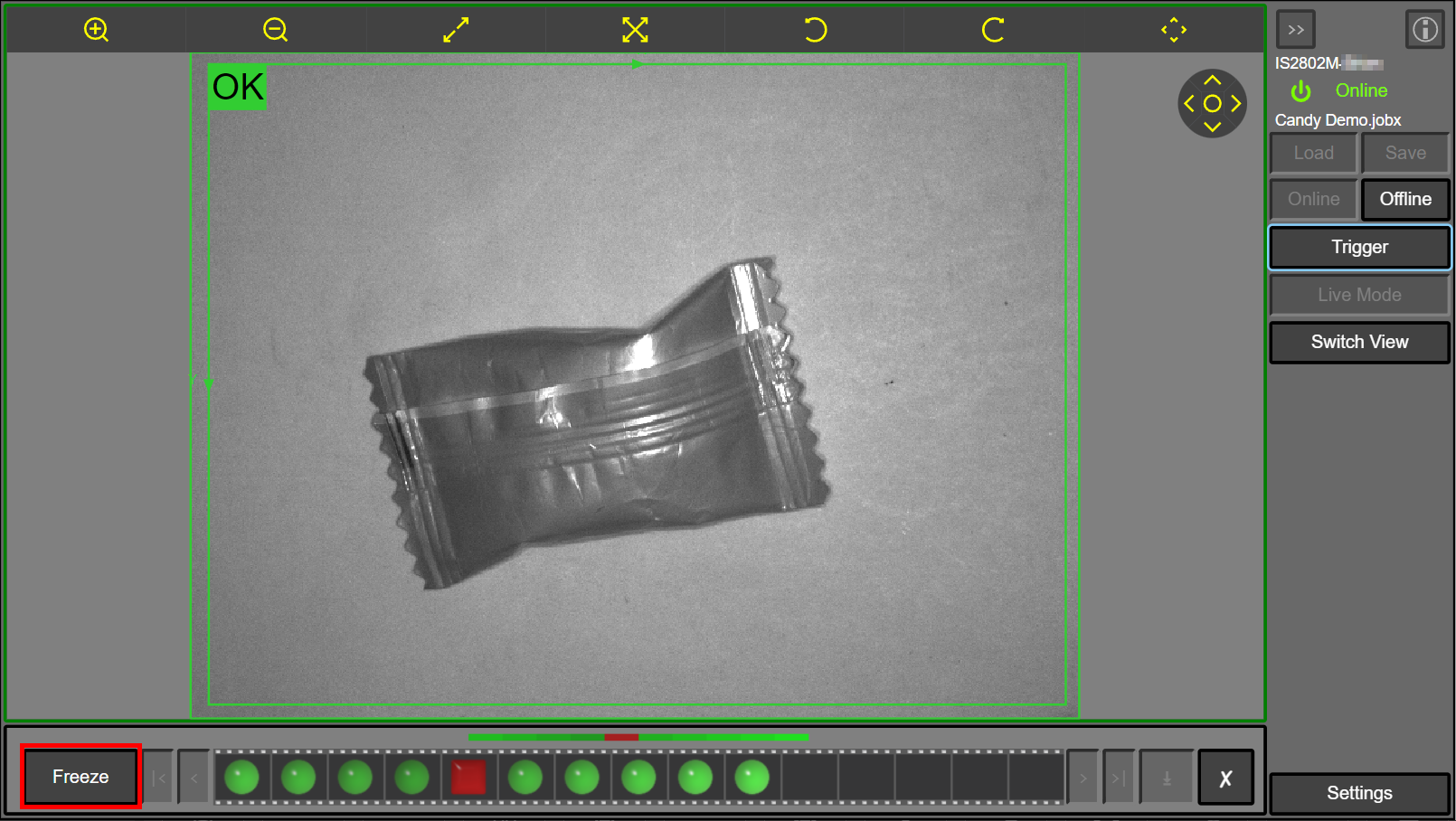

To stop the Results Queue entries from updating, but keep the job A job is a user-configured program in In-Sight EasyBuilder consisting of functions and designed for specific applications. You can create and edit jobs using the In-Sight EasyBuilder interface, and load them on a vision system for deployment in a live environment. running, click Freeze.

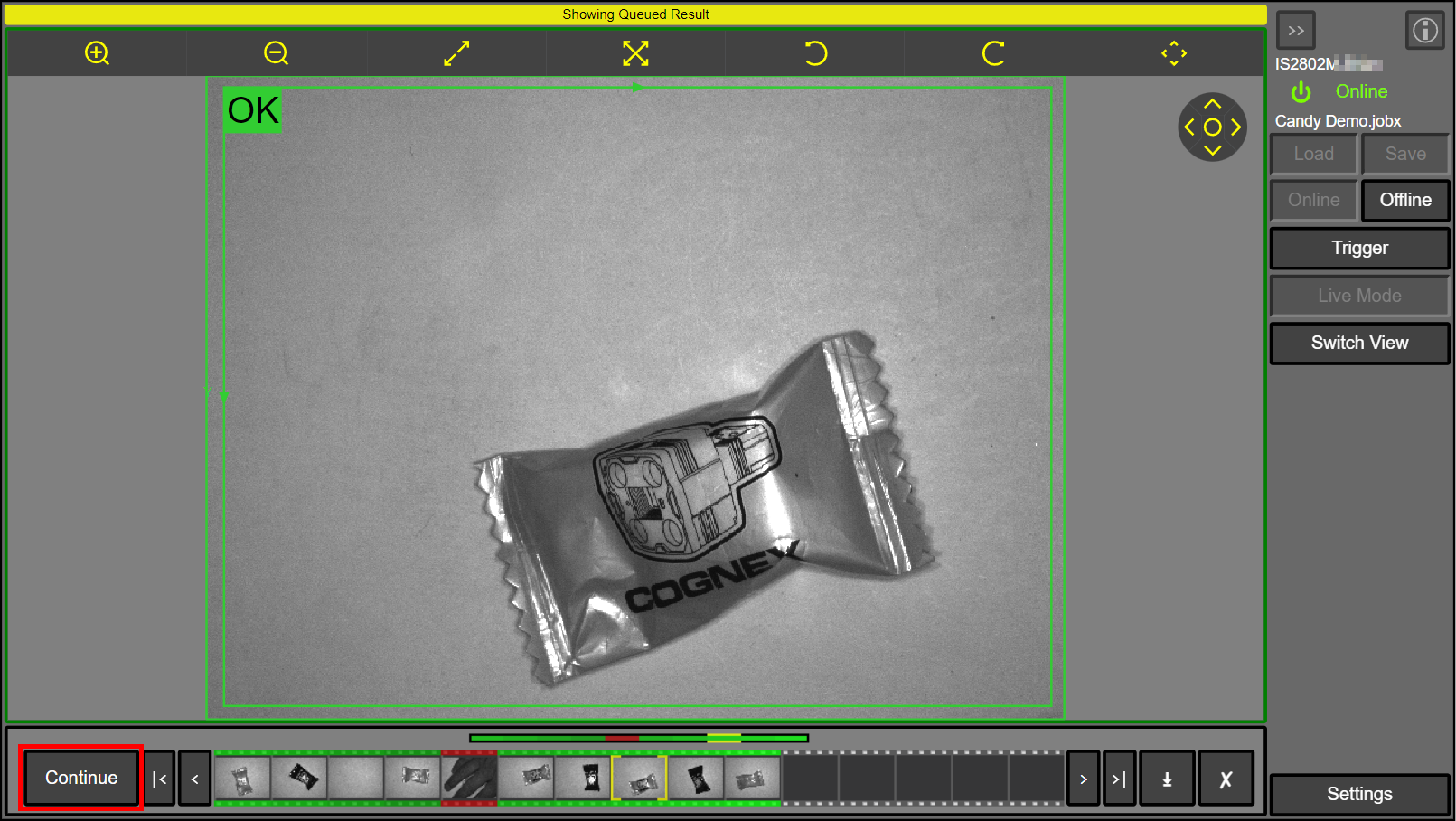

To resume updating the Results Queue entries, click on Continue.

When you select an image, a yellow frame around the thumbnail picture indicates your selection. To navigate between the selected input images, save the filmstrip images, or clear the filmstrip, use the buttons in the filmstrip next to the Freeze/Continue button.
Icon Action

Select First Input Image

Select Previous Input Image

Select Next Input Image

Select Last Input Image

Save Filmstrip Images

Clear Filmstrip

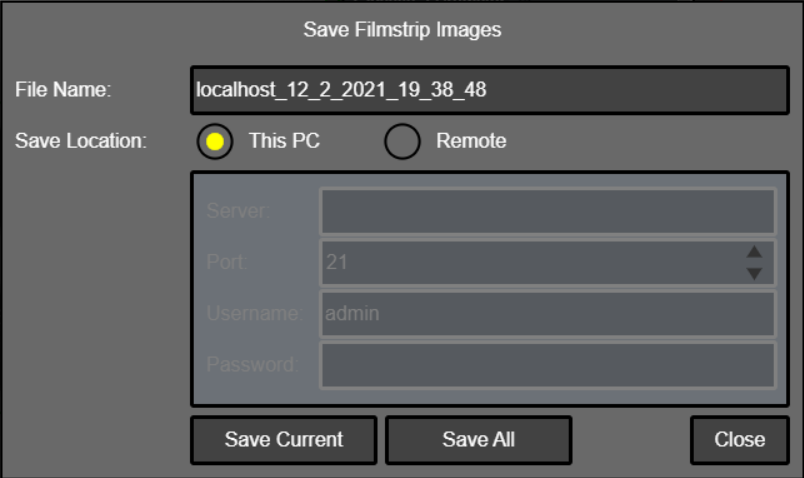

After clicking the Save Filmstrip Images button, select the location where you want to save the images in the pop-up window.

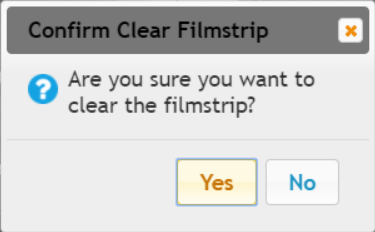

To clear the filmstrip images, click on the Clear Filmstrip button, and then click on Yes when the confirmation pop-up window appears. To cancel clearing, click on No or close the pop-up window using the X in the top right corner of the window.
