Train TrainPatMaxRedLine function function

The TrainPatMaxRedLine function function extracts and trains a pattern from a greyscale image using PatMax RedLine algorithms.

This is a sample process. For all available options, see TrainPatMaxRedLine.

Note: Set the system to Offline state before training or re-training the TrainPatMaxRedLine function function.
  1. Open your part on which you wish to train the TrainPatMaxRedLine function function.

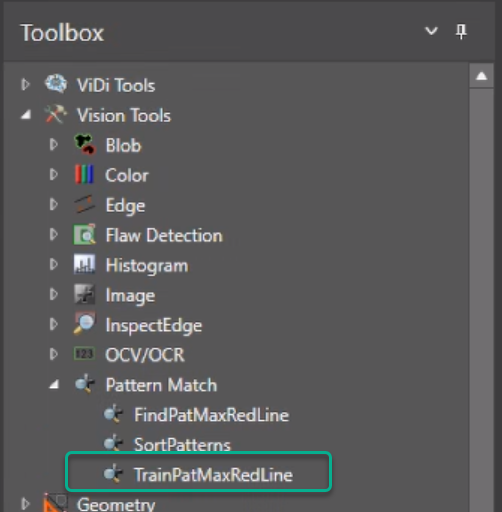

  2. Select TrainPatMaxRedLine function from Vision Tools in the Toolbox, on the right side of the screen.

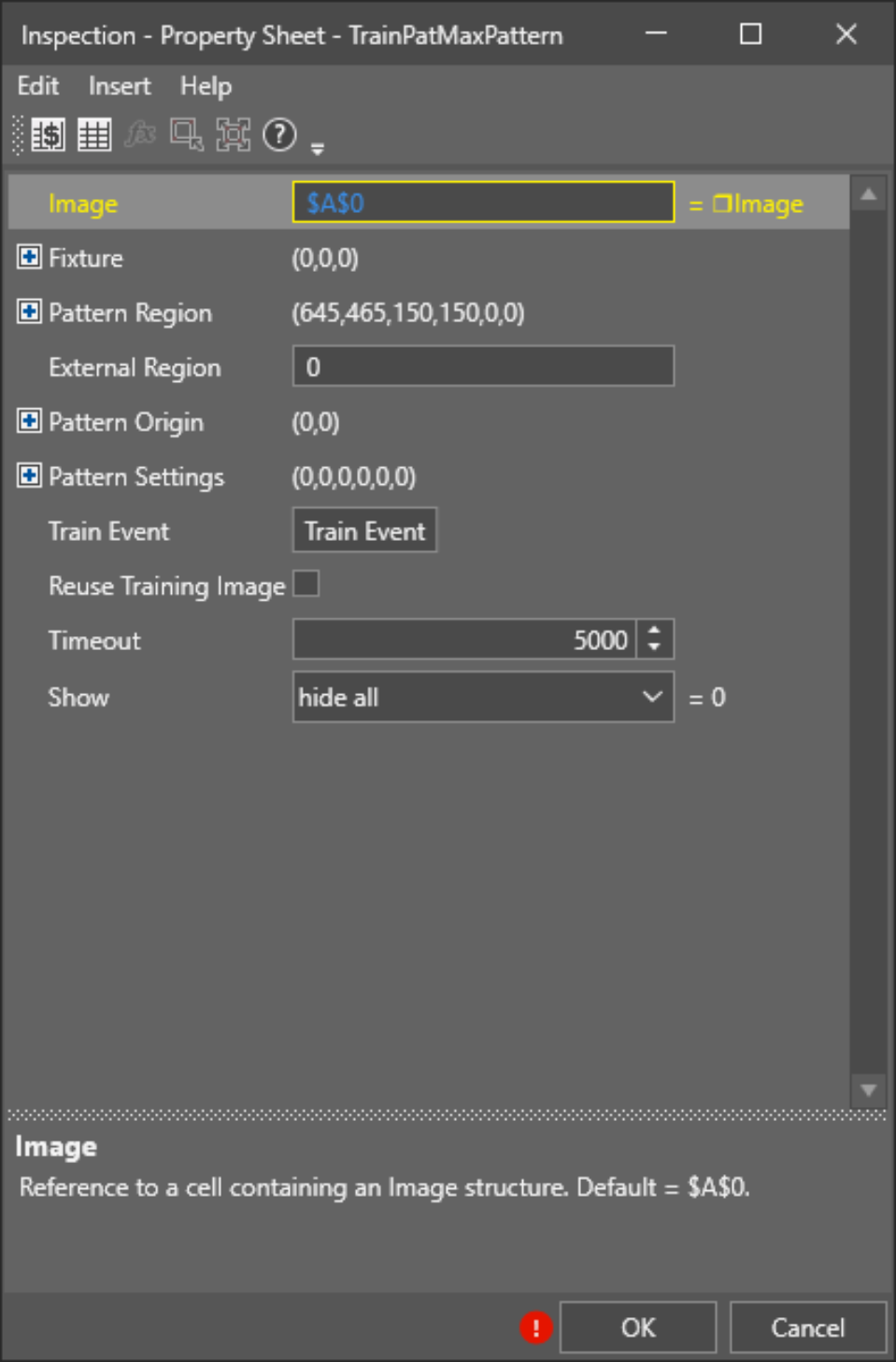

  3. Drag and drop the function to the selected cell of the Spreadsheet. The Property Sheet opens up.

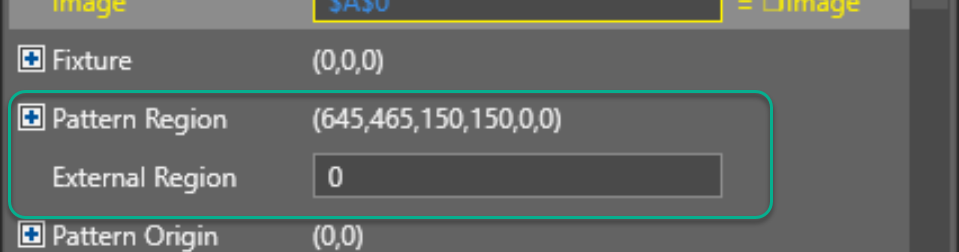

  4. Double-click the Pattern Region option.

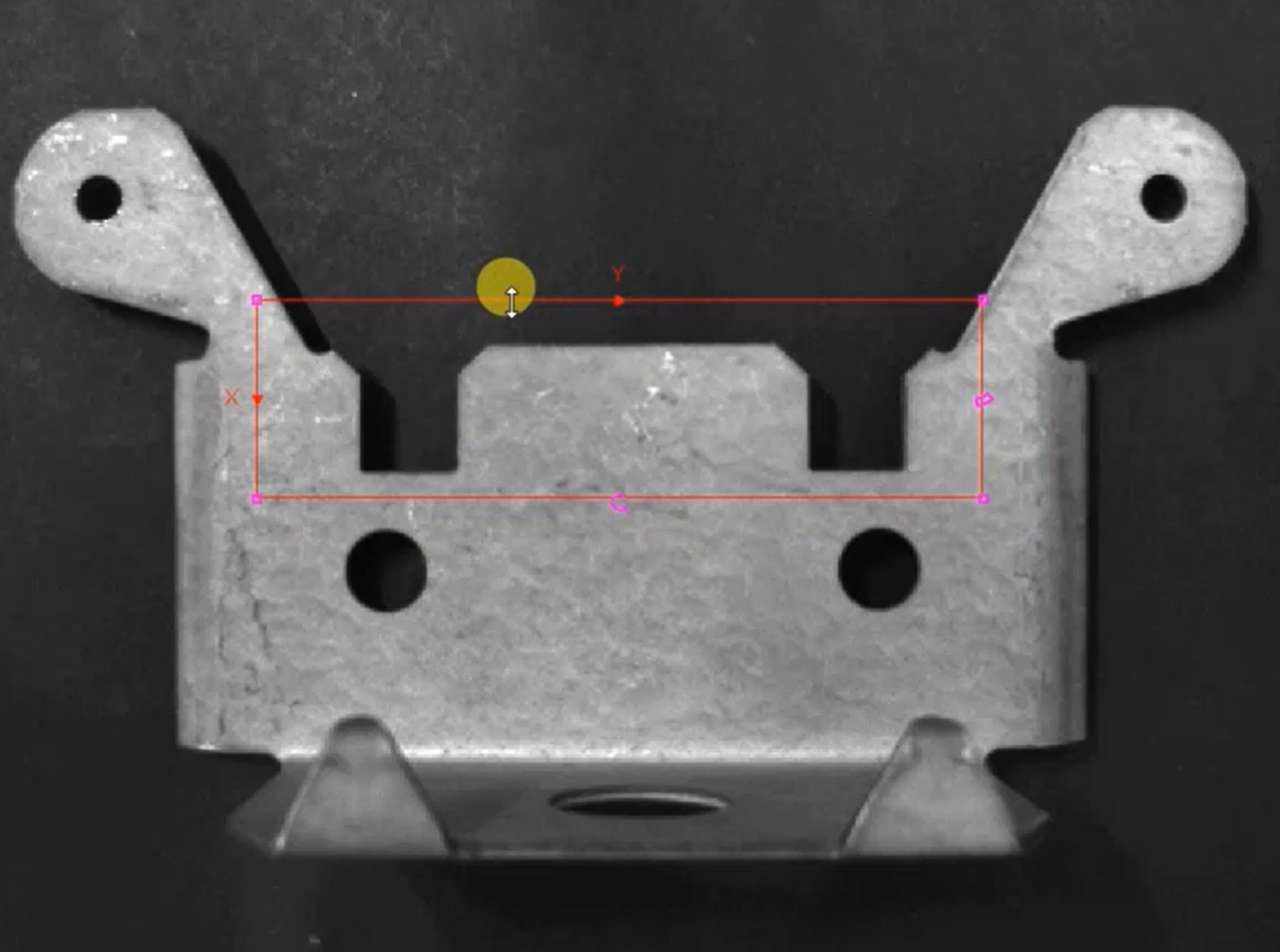

  5. Select the unique section of the part which you would like to train.

    Note: The software indicates the trained part with a green outline.
  6. Click OK.
  7. To re-train the TrainPatMaxRedLine function, set the system to Offline state and repeat Steps 4-6.
