External Lights
External lights can be connected to the vision system's LIGHT connector using the External Light cable.
- The vision system supports connecting an integrated illumination accessory to the vision system's faceplate and connecting an external light to the vision system's LIGHT connector, but does not support using both lighting devices simultaneously.
- If daisy-chaining multiple Cognex IVSL-YLW2X-xxx or IVSL-YLW300-xxx external lights:
- The lights must be powered externally by a separate power supply.
- A Cognex control cable (CCB-FOV25-MAL-012) can be used to connect the vision system’s LIGHT connector to the external light and a Cognex power cable (IVSL-5PM12-5) can be used to connect the light to the separate power supply. Only the power and ground wires from the Cognex power cable (IVSL-5PM12-5) should be connected to the remote power supply.
- If using a Cognex IVSL-LX520-xxx external light:
- The lights must be powered externally by a separate power supply.
- A Cognex control cable (CCB-FOV25-MAL-012) can be used to connect the vision system’s LIGHT connector to the external light and a Cognex power cable (IVSL-5PM12-5) can be used to connect the light to the separate power supply. Only the power and ground wires from the Cognex power cable (IVSL-5PM12-5) should be connected to the remote power supply.
- The following cables must not be used with IVSL-LX520-xxx external lights: IVSL-5PM12-J300, IVSL-5PM12-J500 and IVS‑5PM12‑J1000, IVSL‑5PM12‑J2000.
- The vision system supports Cognex IVSL-YL300-xx external lights with the following External Light cables: IVSL-M12-NSB-300, IVSL-M12-NSB-1000 and IVSL-M12-NSB-2000.
| Accessory | Part Number | Supported External Light Cables | Accessory Image |
|---|---|---|---|
| Brick light, narrow blue | IVSL‑ODDM‑S75‑470 |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Brick light, narrow red | IVSL‑ODDM‑S75‑625 |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|

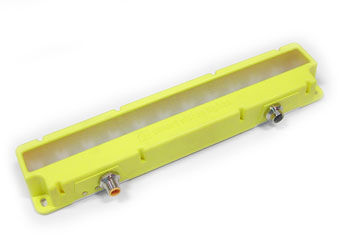

| Bar light, wide red | IVSL‑YLW2X‑625 |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, narrow red, linear polarizer | IVSL‑YLW2X‑625P |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, narrow infrared | IVSL‑YLW2X‑850 |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, narrow blue | IVSL‑YLW300‑470 |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, wide blue | IVSL‑YLW300‑470 W |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, narrow red | IVSL‑YLW300‑625 |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, wide red | IVSL‑YLW300‑625 W |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, narrow white | IVSL‑YLW300‑WHI |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, wide white | IVSL‑YLW300‑WHI W |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, blue | IVSL‑LX520‑470 |
CCB-FOV25-MAL-012 for intensity and strobe control. IVSL-5PM12-5 for power. |
|
| Bar light, red | IVSL‑LX520‑625 |
CCB-FOV25-MAL-012 for intensity and strobe control. IVSL-5PM12-5 for power. |
