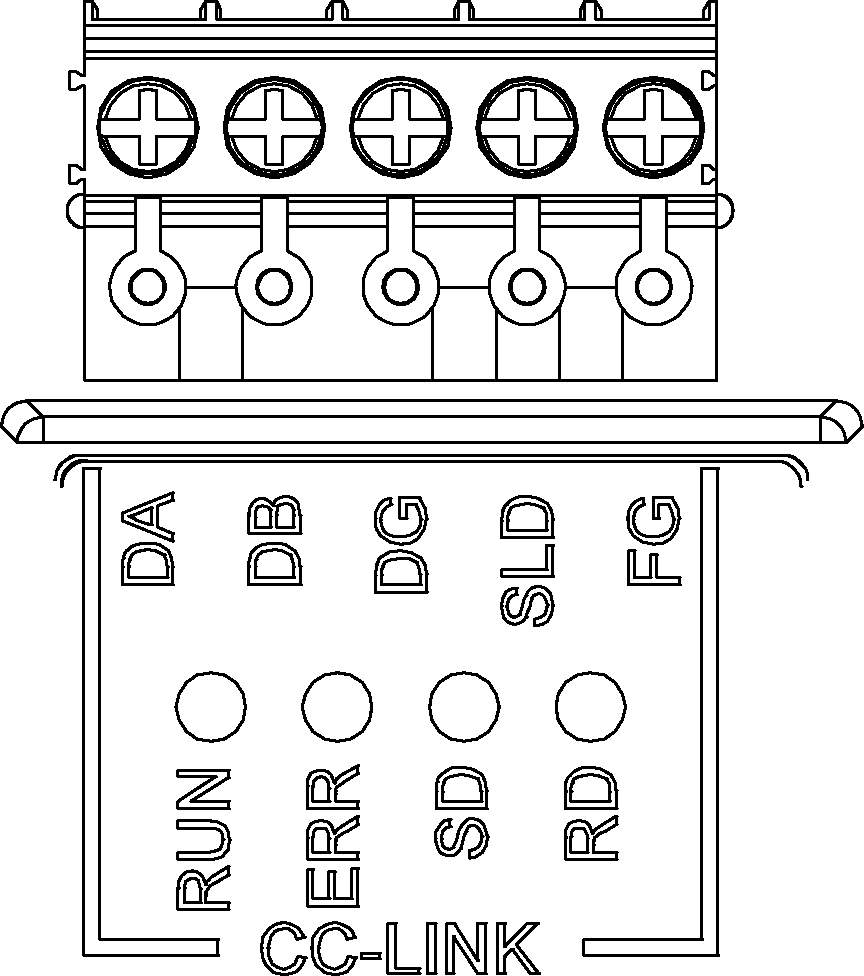

CC-Link Terminal Block Assignments
Note: The CC-Link terminals are only available on the CIO-MICRO-CC I/O module.

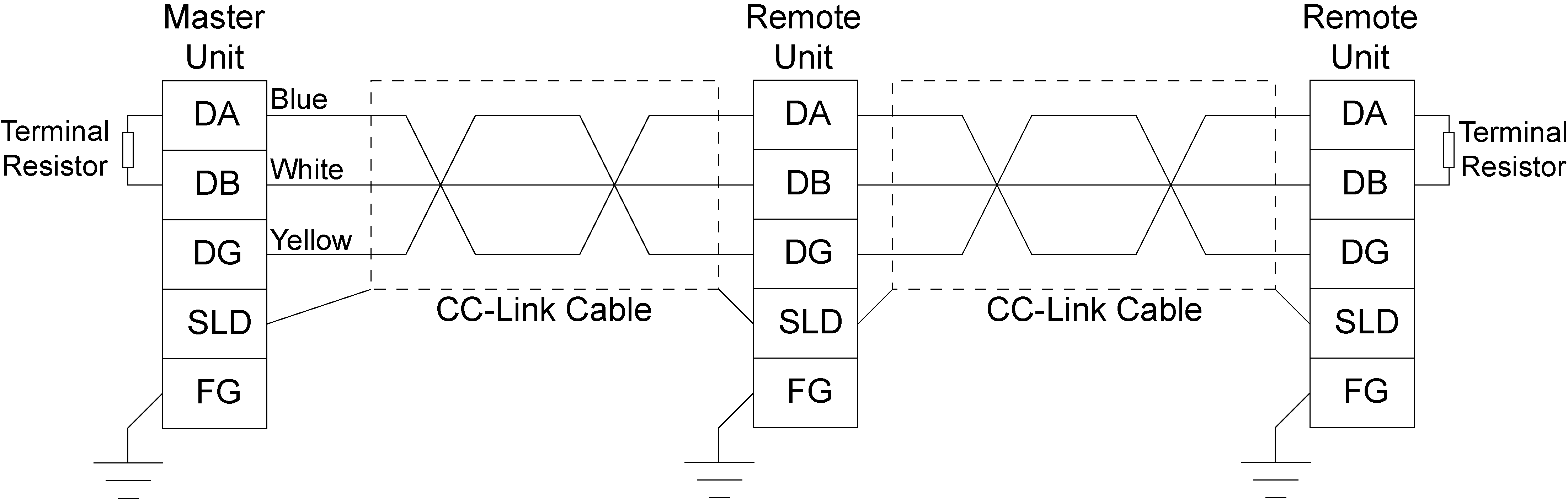

The CC-Link terminal block connectors conform to the CC-Link specifications. Refer to the CC-Link web site for more information and specification details. Recommended wiring is 16 - 22 AWG, solid or stranded wire.
CAUTION: The maximum torque that can be applied to the terminal block connectors is 0.1921 Nm (1.7 in-lb). Applying torque above this limit can damage the connectors.
|
|||
|---|---|---|---|
| Pin Label | Signal Name | LED | Indicates |
| DA | Communication Data | RUN | Normal |
| DB | Communication Data | ERR | Error |
| DG | Ground | SD | Send |
| SLD | Shield | RD | Receive |
| FG | Earth | ||
