Put /resultQueue/frozen
Freezes or unfreezes the Sensor filmstrip. For more information, see Sensor Filmstrip: Spreadsheet View.
Put /resultQueue/frozen Inputs
Syntax: Put /resultQueue/frozen [parameter]
| Parameter | Description |
|---|---|
| true | Freezes the Sensor filmstrip. |
| false | Unfreezes the Sensor filmstrip. |
Put /resultQueue/frozen Outputs
Returns a status code. The status codes are:
| Status Codes | Description |
|---|---|
| 1 | The command was executed successfully. |
| 0 | Unrecognized command. |
| -2 | The command could not be executed. |
| -6 | User does not have Full
Access to execute the command. |
Put /resultQueue/frozen Examples
Freeze Sensor Filmstrip

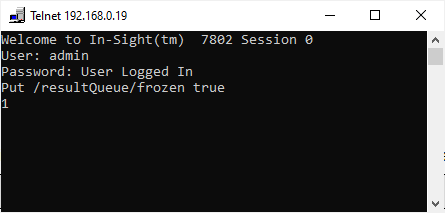

To freeze the Sensor filmstrip, issue the following command: Put /resultQueue/frozen true
The vision system responds with a status code (1), indicating the command was successfully executed.
Unfreeze Sensor Filmstrip

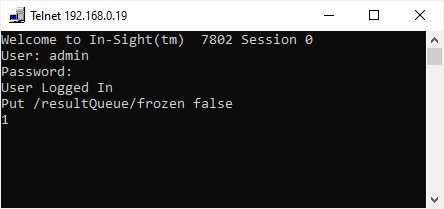

To unfreeze the Sensor filmstrip, issue the following command: Put /resultQueue/frozen false
The vision system responds with a status code (1), indicating the command was successfully executed.
