SetFTPSettings

Configures settings that are found in the FTP Settings dialog. For more information, see FTP Settings Dialog.

Note: Use the Store Settings (TS) native mode command to save changes to the proc.set file. If not saved to the proc.set file, the changes will be lost after power-cycling the In-Sight vision system. For more information, see Store Settings.

SetFTPSettings Inputs

Syntax: EV SetFTPSettings(IdleTimeout,ReadTimeout,ConnectionRetry,LocalPort,RemotePort,Passive)

Parameter	Description
IdleTimeout	(0 to 10000), 120*
ReadTimeout	(0 to 10000), 120*
ConnectionRetry	(1 to 10), 1*
LocalPort	(1 to 65535), 21*
RemotePort	(1 to 65535), 21*
Passive	0 = Disabled* 1 = Enabled
* denotes default value

SetFTPSettings Outputs

Returns a status code, followed by the number of characters (in bytes) for the results, then the results in XML format. The status codes are:

Status Codes	Description
1	The command was executed successfully.
0	Unrecognized command.
-2	The command could not be executed.
-6	User does not have Full Access to execute the command. For more information, see User Access Settings Dialog.

SetFTPSettings Example

To configure the following settings:

IdleTimeout: 180
ReadTimeout: 180
ConnectionRetry: 1
LocalPort: 21
RemotePort: 21
Passive: 0

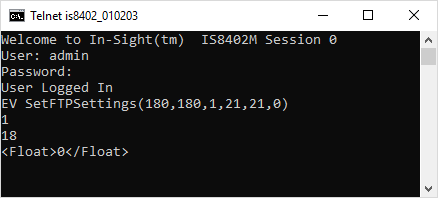

Issue the following command: EV SetFTPSettings(180,180,1,21,21,0)

The In-Sight sensor responds with a status code (1), followed by the number of characters, in bytes (18). Finally, the results are returned in XML format.
