GetFTPSettings

Returns information that is configured in the FTP Settings dialog. For more information, see FTP Settings Dialog.

GetFTPSettings Inputs

Syntax: EV GetFTPSettings()

GetFTPSettings Outputs

Returns a status code, followed by the number of characters (in bytes) for the results, then the results in XML format. The status codes are:

Status Codes	Description
1	The command was executed successfully.
0	Unrecognized command.
-2	The command could not be executed.
-6	User does not have Full Access to execute the command. For more information, see User Access Settings Dialog.

GetFTPSettings Example

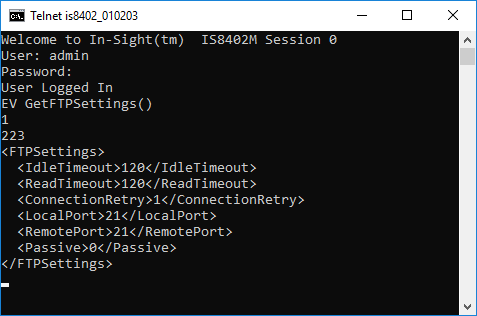

To retrieve the information configured in the FTP Settings dialog, issue the following command: EV GetFTPSettings()

The In-Sight sensor responds with a status code (1), followed by the number of characters, in bytes (223). Finally, the information configured in the FTP Settings dialog is returned.
