GetDeEnergizeOutputs

Returns the De-Energize Outputs While Offline setting configured in the Discrete I/O Settings dialog. For more information, see Configure Discrete I/O Lines.

GetDeEnergizeOutputs Inputs

Syntax: EV GetDeEnergizeOutputs()

GetDeEnergizeOutputs Outputs

Returns a status code, followed by the number of characters (in bytes) for the results, then the results in XML format. The status codes are:

Status Codes	Description
1	The command was executed successfully.
0	Unrecognized command.
-2	The command could not be executed.
-6	User does not have Full Access to execute the command. For more information, see User Access Settings Dialog.

GetDeEnergizeOutputs Example

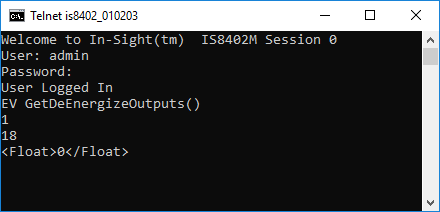

To retrieve the De-Energize Outputs While Offline setting, issue the following command: EV GetDeEnergizeOutputs()

The In-Sight sensor responds with a status code (1), followed by the number of characters, in bytes (18). Finally, the De-Energize Outputs While Offline setting is returned.
