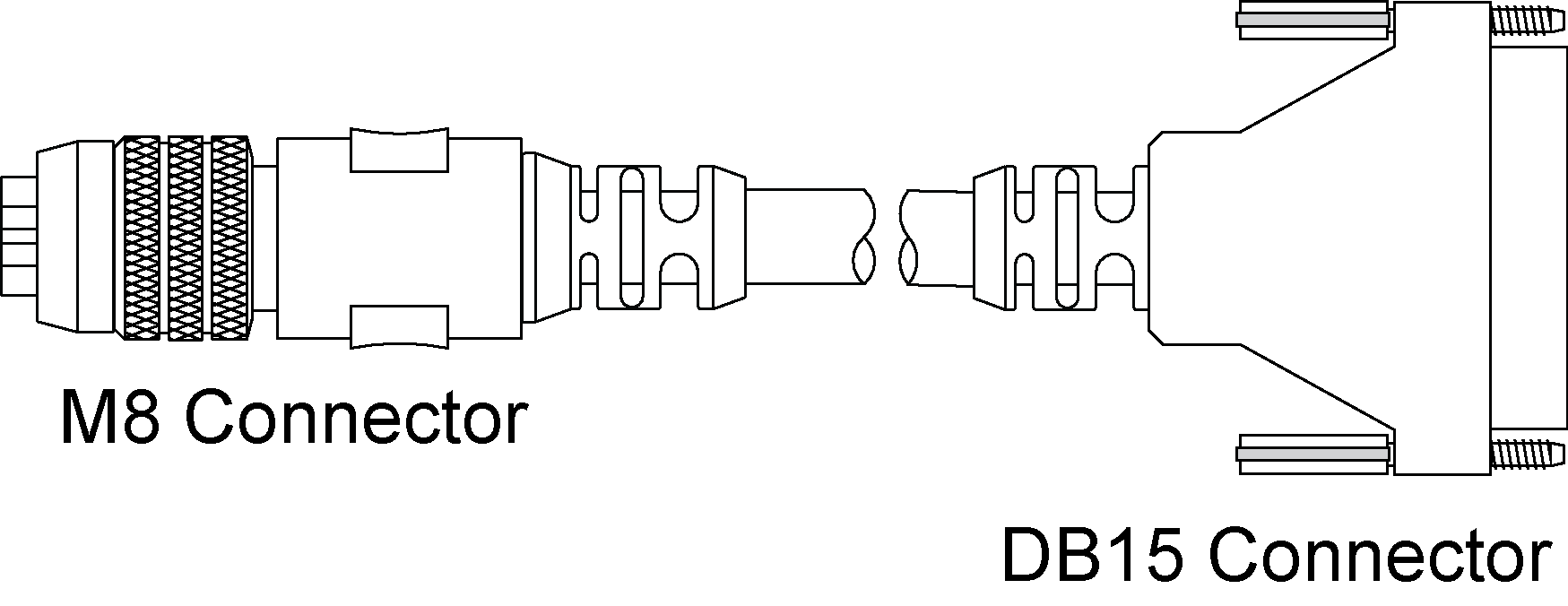

I/O Module Cable (In-Sight Micro Series Vision System)
The I/O Module cable provides access to the In-Sight Micro vision system’s trigger and high-speed outputs This cable is available in the lengths listed below.
Note: The In-Sight Micro vision system uses only the TRIGGER+, TRIGGER‑, HS OUT 0, HS OUT 1 and HS COMMON signals. It does not use the power that is available from the I/O module's I/O (DB15) connector.
|
|
|
|---|---|
| Length | Part # |
| 0.7 m | CCB-M8DSIO-00 |
| 2 m | CCB-M8DSIO-02 |
| 5 m | CCB-M8DSIO-05 |
| 10 m | CCB-M8DSIO-10 |
| 15 m | CCB-M8DSIO-15 |
