S-Mount/M12 Autofocus Accessories
- The vision system supports connecting an integrated illumination accessory to the vision system's faceplate and connecting an external light to the vision system's LIGHT connector, but does not support using both lighting devices simultaneously.
- For the In-Sight 7905, the S-Mount/M12 lens image circle size is smaller than the vision system’s image sensor size, resulting in mechanical vignetting in the image when using any S-Mount/M12 lens. Therefore, S-Mount/M12 lenses are not recommended. For more information, see Mechanical Vignetting.
| Accessory | Part Number | Accessory Image | ||
|---|---|---|---|---|

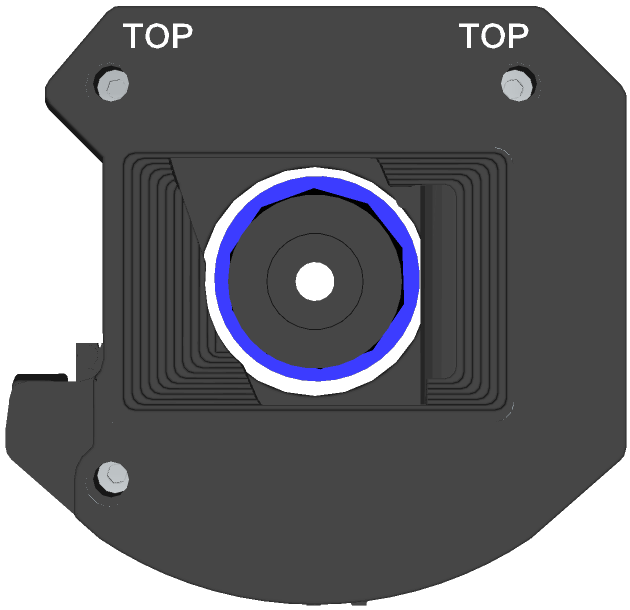

| Autofocus module with 8mm S-Mount/M12 lens | ISAF‑7000‑8mm |
|
||
| Lens removal tool with replacement lens nuts | ISAF‑7000‑TOOL |
|
||
|

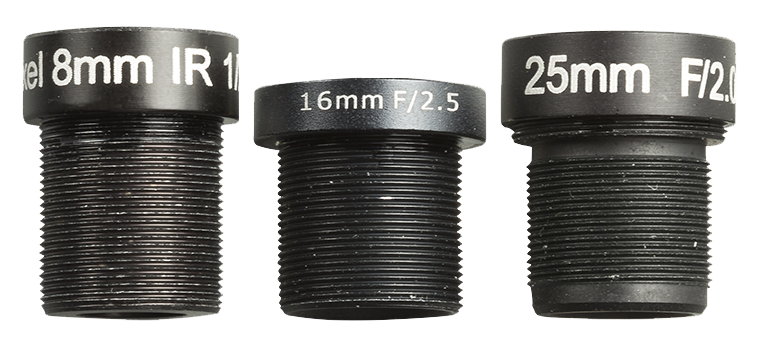

6mm M12 lens |
LM12‑06‑01 |
|
||
|
8mm M12 lens |
LM12‑08‑01‑F2.2 | |||
|
12mm M12 lens |
LM12‑12-01‑F2.3 | |||
|
16mm M12 lens |
LM12‑16‑01 | |||
| 25mm M12 lens | LM12‑25‑01 | |||

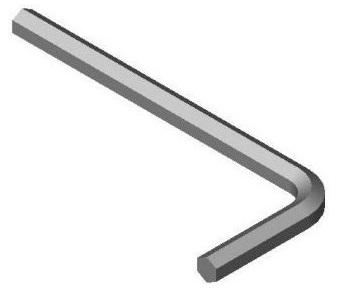

| Illumination accessory with white LED ring light, cover and hex wrench | ISLM‑7000‑WHI |
|
||
| Illumination accessory with cover and hex wrench. Does not include an LED ring light. | ISLM‑7000‑00 |
|
||
| Diffuse cover | COV‑7000‑DF |
|
||
| Clear cover | COV‑7000‑CLR |
|
||
|

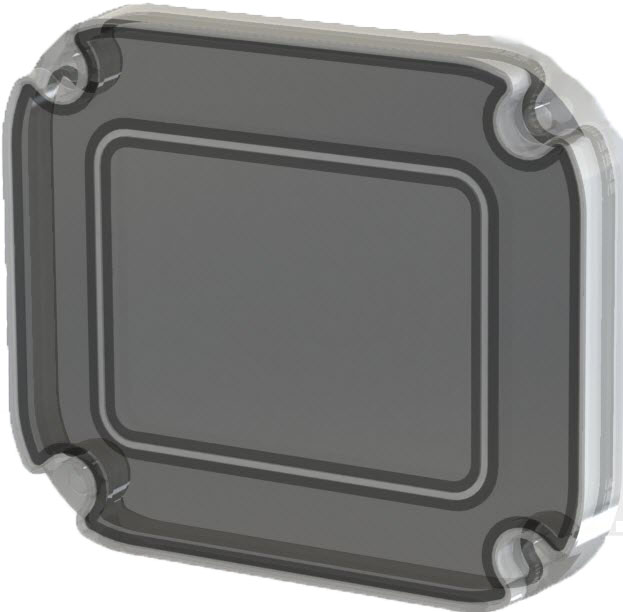

Polarized cover Note: When installing the cover, pull the red tab to remove the protective film.
|
COV‑7000‑PL‑FULL |
|
||
| Red LED ring light | ISL‑7000‑RD |
|
||
| IR LED ring light | ISL‑7000‑IR | |||
| Blue LED ring light | ISL‑7000‑BL | |||
| White LED ring light Note: For color vision systems, the white LED ring light should be used. |
ISL‑7000‑WHI | |||
| Red bandpass filter used with the ISL‑7000‑RD LED ring light | ISF‑7000‑RDBP605 |
|
||
| IR bandpass filter used with the ISL‑7000‑IR LED ring light | ISF‑7000‑IRBP815 | |||
| Blue bandpass filter used with the ISL‑7000‑BL LED ring light | ISF‑7000‑BLBP435 |
