C-Mount Illumination Accessories

Note:
  • The vision system supports connecting an integrated illumination accessory to the vision system's faceplate and connecting an external light to the vision system's LIGHT connector, but does not support using both lighting devices simultaneously.

  • When using a C-Mount lens, the following restrictions apply:

    • Maximum thread length is 5.25mm.
    • The C-Mount lens threads and body cannot protrude more than 6.5mm in length into the vision system when screwed in unless the diameter of the back lens is smaller than 14.75mm. If the C-Mount lens threads and body protrude more than 6.5mm, you can add a spacer between the lens and vision system. However, the spacer decreases the working distance.
CAUTION:  The following C-Mount lenses are supported with vision systems when using the illumination accessory (ISLM-7000-xxx). If using a different C-Mount lens with the illumination accessory, it must be 29.5mm in diameter or smaller. Maximum lens length is 38.5mm without a bandpass filter and 36mm with a bandpass filter. Larger lenses will irreparably damage the vision system.
  Accessory Part Number Accessory Image

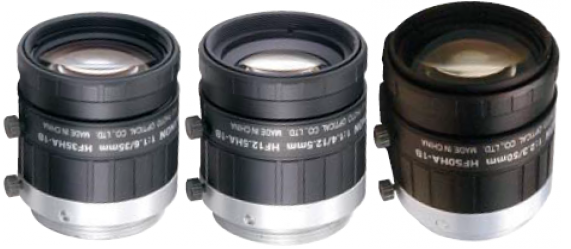

Lenses supported with vision systems with 2.3 mega-pixel resolution and below. 9mm f/1.4 - f/16 aperture lens LFC‑9F1B

12.5mm f/1.4 - close aperture lens LFC‑12.5F
16mm f/1.4 - f/16 aperture lens LFC‑16F1
25mm f/1.4 - f/22 aperture lens LFC-25F1
35mm f/1.6 - f/22 aperture lens LFC-35F1

50mm f/2.3 - f/22 aperture lens

 LFC-50F1
Lenses supported with vision systems with 5 mega-pixel resolution. 8mm f/2.4 - f/16 aperture lens LMC-ML-M0824-MP5

12.5mm f/2.4 - f/16 aperture lens LMC-ML-M1224-MP5
16mm f/1.6 - f/16 aperture lens LMC-ML-M1616UR
25mm f/1.6 - f/16 aperture lens LMC-ML-M2516UR
35mm f/2.0 - f/16 aperture lens LMC-ML-M3520UR
Illumination accessory with white LED ring light, cover and hex wrench ISLM‑7000‑WHI
Illumination accessory with cover and hex wrench. Does not include an LED ring light. ISLM‑7000‑00
Diffuse cover COV‑7000‑DF

Clear cover COV‑7000‑CLR

Polarized cover
Note: When installing the cover, pull the red tab to remove the protective film.
 COV‑7000‑PL‑FULL

Red LED ring light ISL‑7000‑RD






IR LED ring light ISL‑7000‑IR
Blue LED ring light ISL‑7000‑BL

White LED ring light

Note: For color vision systems, the white LED ring light should be used.
 ISL‑7000‑WHI
Red bandpass filter used with the ISL‑7000‑RD LED ring light ISF‑7000‑RDBP605

IR bandpass filter used with the ISL‑7000‑IR LED ring light ISF‑7000‑IRBP815
Blue bandpass filter used with the ISL‑7000‑BL LED ring light ISF‑7000‑BLBP435
