DataMan Lenses, Lights and Covers
The following DataMan accessories are also supported with the In-Sight vision system for S-Mount/M12 manual focus lens configurations. DataMan lenses are only supported with DataMan lights and covers.
- The following S-Mount/M12 lenses are supported. If a different lens is used, the following restrictions apply:
- At infinity focus, the back focal length must be greater than 5.5 mm.
- Close up, the back focal length of the lens cannot be greater than 10 mm.
- For the In-Sight 7905, the S-Mount/M12 lens image circle size is smaller than the vision system’s image sensor size, resulting in mechanical vignetting in the image when using any S-Mount/M12 lens. Therefore, S-Mount/M12 lenses are not recommended. For more information, see Mechanical Vignetting.
| Accessory | Part Number | Accessory Image |
|---|---|---|
| 10.3mm M12 lens with locking (DM300-LENS-10) and 10.3 mm IR M12 lens with locking | DM300‑LENS‑10‑IR |
|
| 16mm M12 lens with locking | DM300‑LENS‑16 |
|

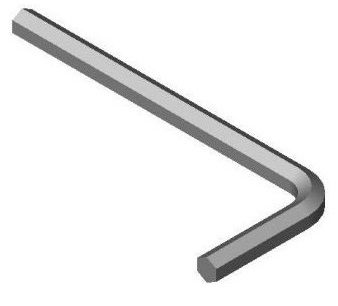

| 25mm M12 lens with lens spacer and hex wrench (also requires Extension kit) | DM300‑LENS‑25 |
|

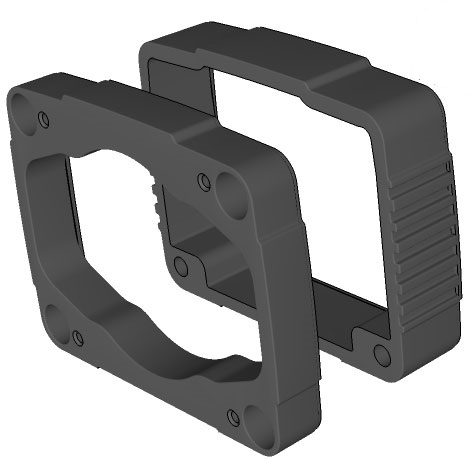

| Extension kit | DM300‑EXT |
|

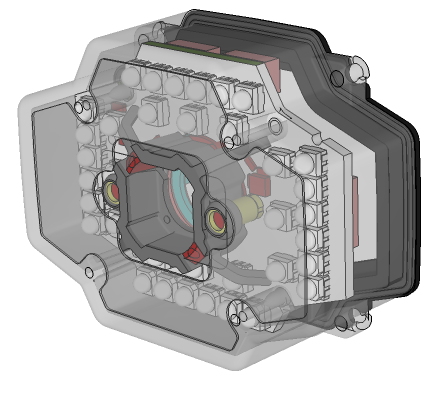

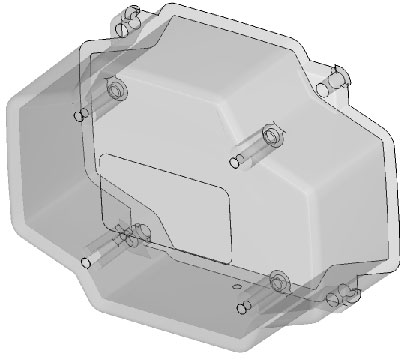

| Clear cover | DM300‑CLCOV |
|
| Clear cover with white LED illumination | DM300‑CLCOV‑WHI |
|
| Diffuse cover with red LED illumination | DM300‑DLCOV‑RE | |
| Diffuse cover with blue LED illumination | DM300‑DLCOV‑BL | |
| Diffuse cover with IR LED illumination | DM300‑DLCOV‑IR | |
| Polarized cover with red LED illumination | DM300‑PLCOV‑RE | |

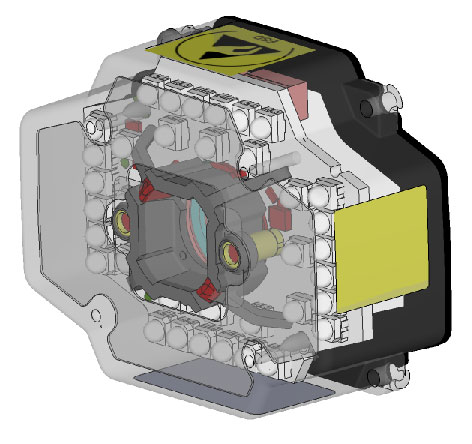

| Diffuse cover, red illumination (assembled), ESD safe | DM300‑DLCOV‑RE‑ESD |
|

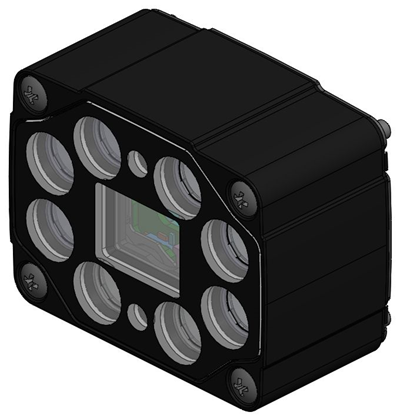

| Polarized red LED high-powered integrated light, ESD safe | DM360‑HPIL‑RE‑P |
|
| Non-polarized red LED high-powered integrated light | DM360‑HPIL‑RE |
