External Lights
External lights can be connected to the vision system's LIGHT connector using the External Light cable.
- External lights are not supported for the In-Sight 9902L line scan vision system.
-

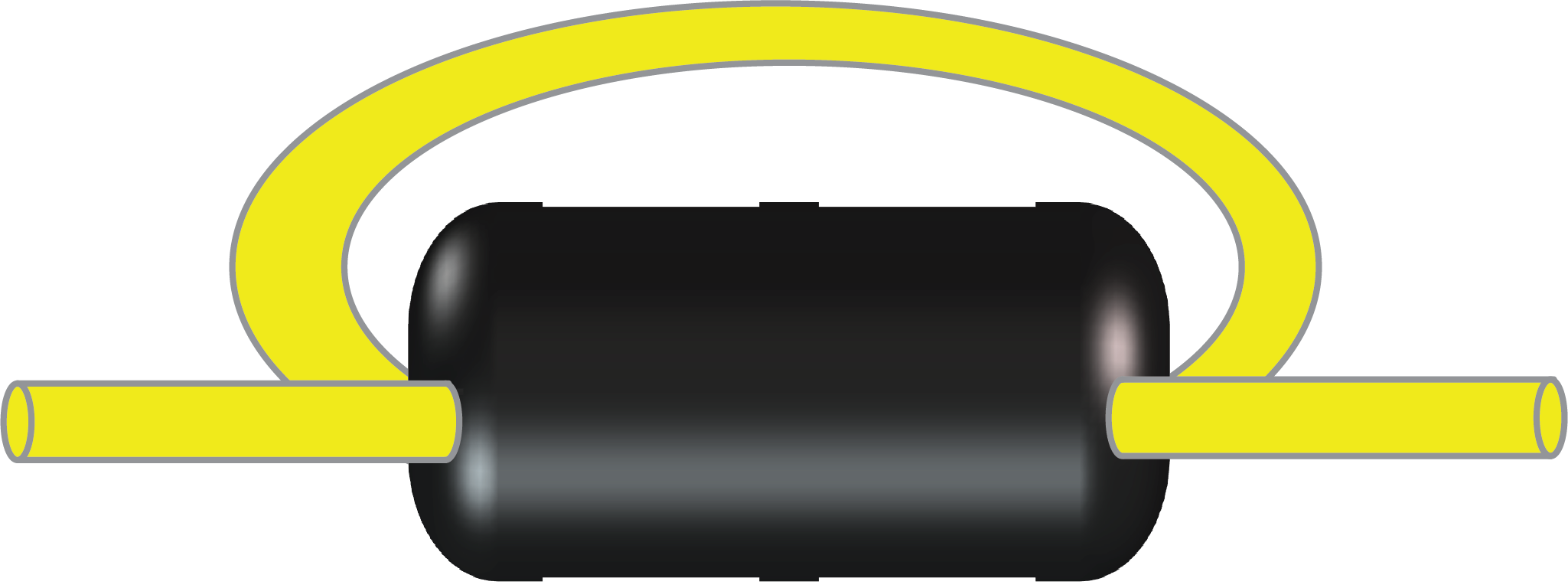

If interference from Electrical Fast Transient (EFT) is experienced under extreme factory conditions, a Fair-Rite ferrite (part number 0431176451) should be added as close to the vision system as practical, with the External Light cable looped through it. For example:
- If daisy-chaining multiple Cognex IVSL-YLW2X-xxx or IVSL-YLW300-xxx external lights:
- The lights must be powered externally by a separate power supply.
- A Cognex control cable (CCB-FOV25-MAL-012) can be used to connect the vision system’s LIGHT connector to the external light and a Cognex power cable (IVSL-5PM12-5) can be used to connect the light to the separate power supply. Only the power and ground wires from the Cognex power cable (IVSL-5PM12-5) should be connected to the remote power supply.
- If using a Cognex IVSL-LX520-xxx external light:
- The lights must be powered externally by a separate power supply.
- A Cognex control cable (CCB-FOV25-MAL-012) can be used to connect the vision system’s LIGHT connector to the external light and a Cognex power cable (IVSL-5PM12-5) can be used to connect the light to the separate power supply. Only the power and ground wires from the Cognex power cable (IVSL-5PM12-5) should be connected to the remote power supply.
- The following cables must not be used with IVSL-LX520-xxx external lights: IVSL-5PM12-J300, IVSL-5PM12-J500 and IVS‑5PM12‑J1000, IVSL‑5PM12‑J2000.
- The In-Sight 9912 vision systems supports Cognex IVSL-YL300-xx external lights with the following External Light cables: IVSL-M12-NSB-300, IVSL-M12-NSB-1000 and IVSL-M12-NSB-2000.

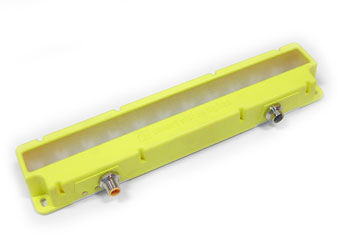

| Accessory | Part Number | Supported External Light Cables | Accessory Image |
|---|---|---|---|
| Brick light, narrow blue | IVSL‑ODDM‑S75‑470 |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Brick light, narrow red | IVSL‑ODDM‑S75‑625 |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, wide red | IVSL‑YLW2X‑625 |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, narrow red, linear polarizer | IVSL‑YLW2X‑625P |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, narrow infrared | IVSL‑YLW2X‑850 |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, narrow blue | IVSL‑YLW300‑470 |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, wide blue | IVSL‑YLW300‑470 W |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, narrow red | IVSL‑YLW300‑625 |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, wide red | IVSL‑YLW300‑625 W |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, narrow white | IVSL‑YLW300‑WHI |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, wide white | IVSL‑YLW300‑WHI W |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| Bar light, blue | IVSL‑LX520‑470 |
CCB-FOV25-MAL-012 for intensity and strobe control. IVSL-5PM12-5 for power. |
|
| Bar light, red | IVSL‑LX520‑625 |
CCB-FOV25-MAL-012 for intensity and strobe control. IVSL-5PM12-5 for power. |
