Cables

Note: Cables are sold separately.
CAUTION:  All cable connectors are keyed to fit the connectors on the vision system. Do not force the connections or damage may occur.
Accessory Part Number Accessory Image

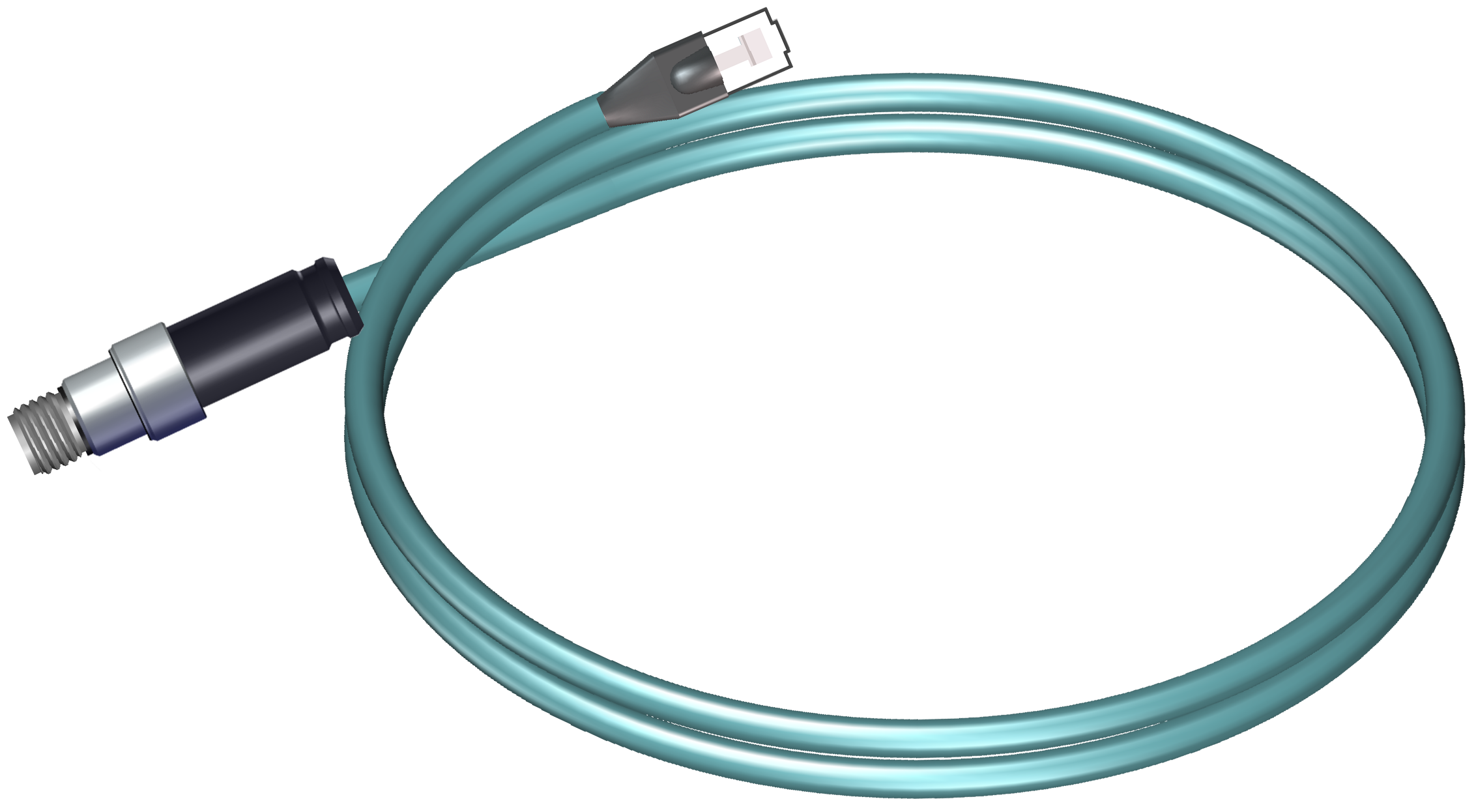

Ethernet Cable, X-coded M12-8 to RJ-45 CCB-84901-2001-xx (straight, xx specifies length: 2m, 5m, 10m, 15m, 30m)

Ethernet Cable, X-coded M12-8 to RJ-45 CCB-84901-2002-xx (right-angled, xx specifies length: 2m, 5m, 10m)
Ethernet Cable, Robotic X-Coded M12-8 to RJ-45 CCB-84901-2RBT-xx (straight, xx specifies length: 2m, 5m, 10m)

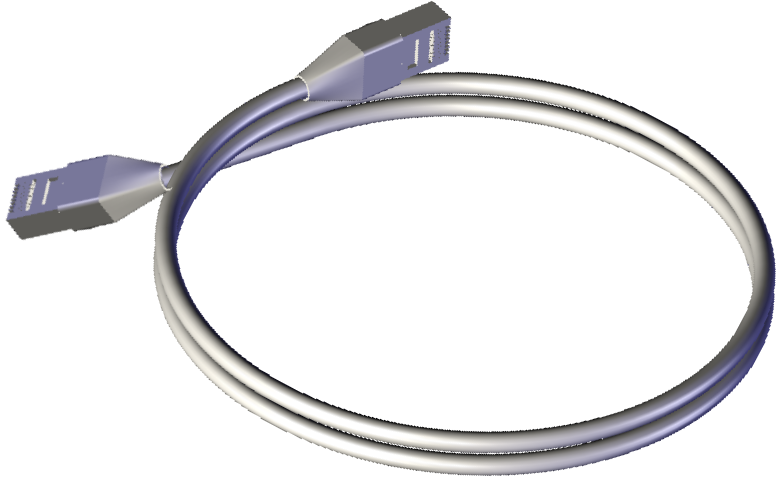

Ethernet Cable, RJ-45 to RJ-45

Note: This cable is only supported with the In‑Sight 8405 vision system.
 CGE-CBL-SHLD-xM (x specifies length: 5m, 10m, 20m)

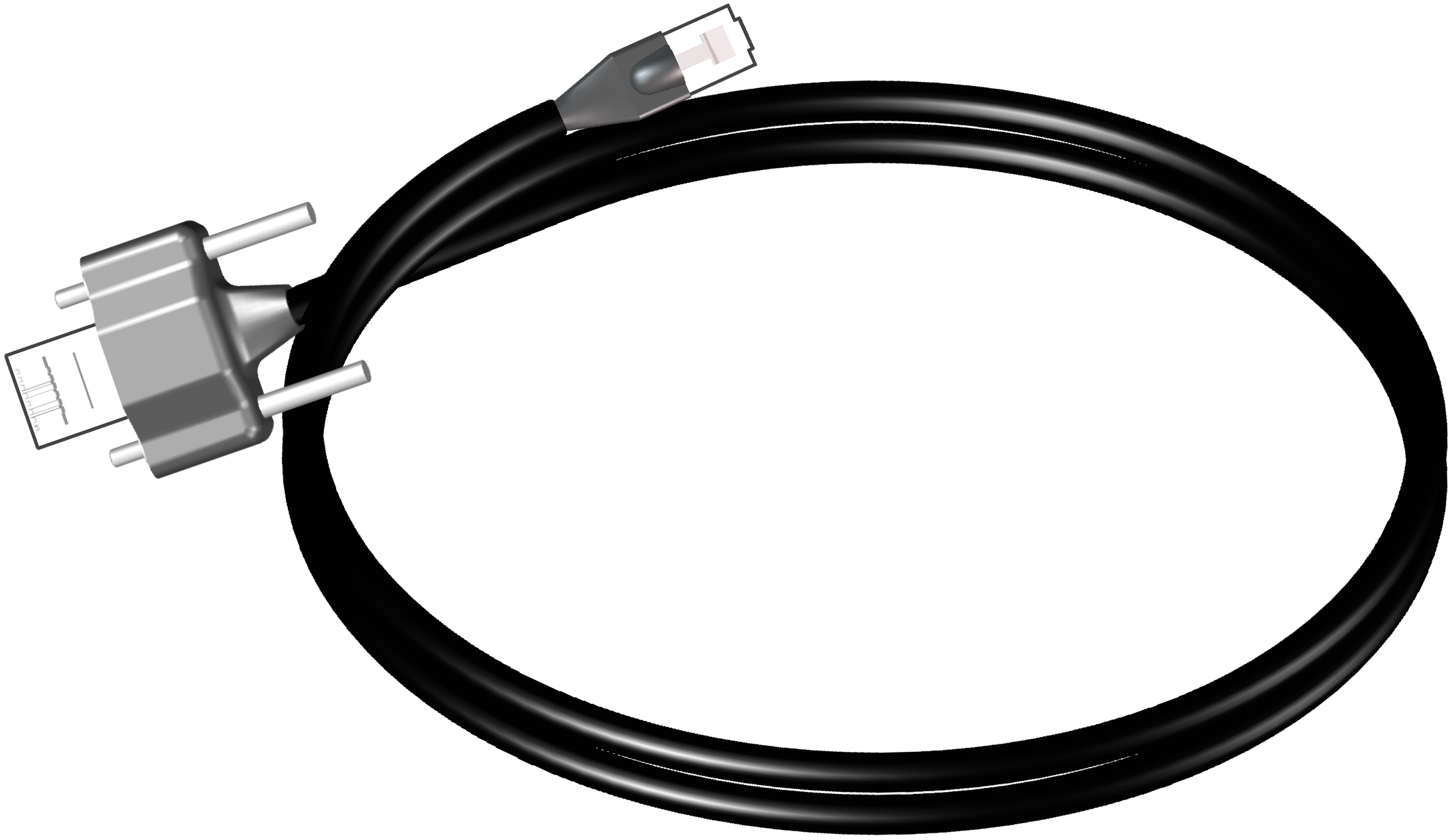

Ethernet Cable, RJ-45 to Horizontal Screw-Locking RJ-45

Note: This cable is only supported with the In‑Sight 8405 vision system.
 CGE-CBL-FLEX-H-xM (x specifies length: 5m, 10m, 20m)

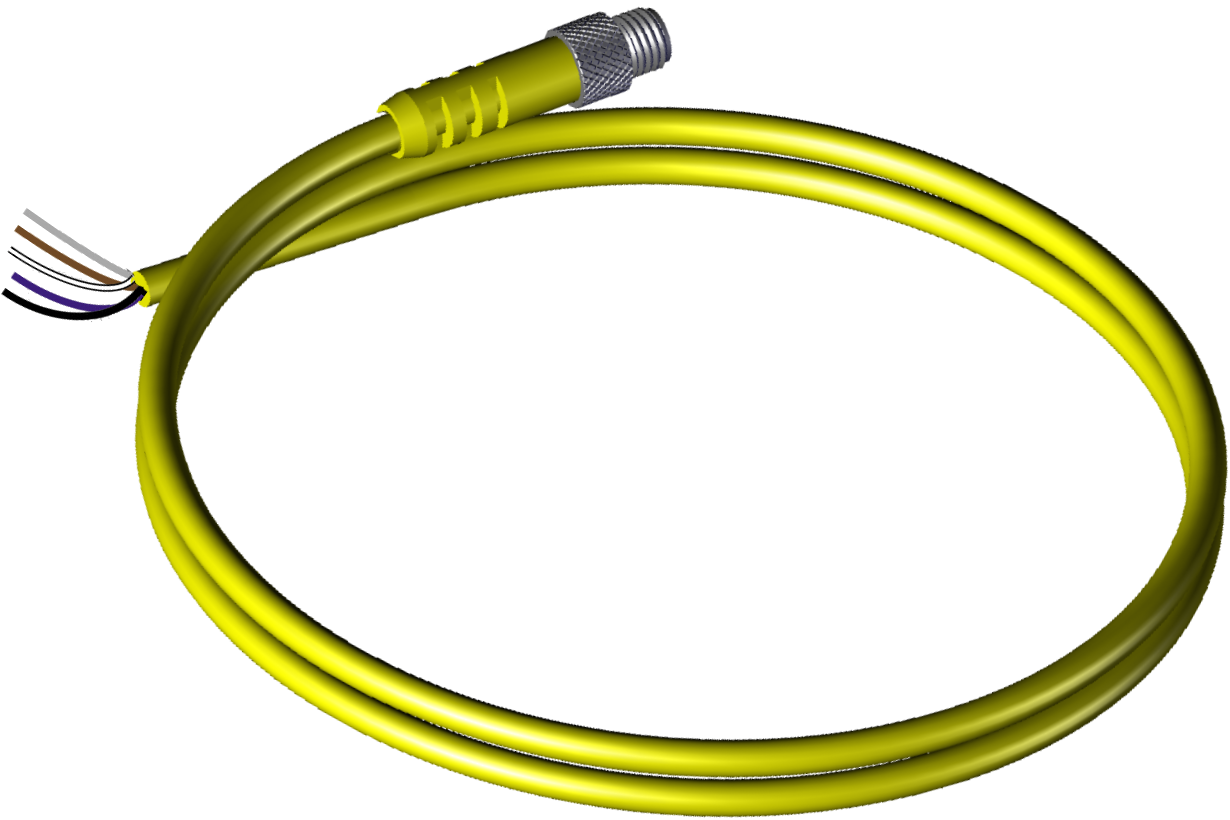

Breakout Cable, M8 to Flying Lead

CCB-M8IO-xx (xx specifies length: 0.6m, 2m, 5m, 10m, 15m)

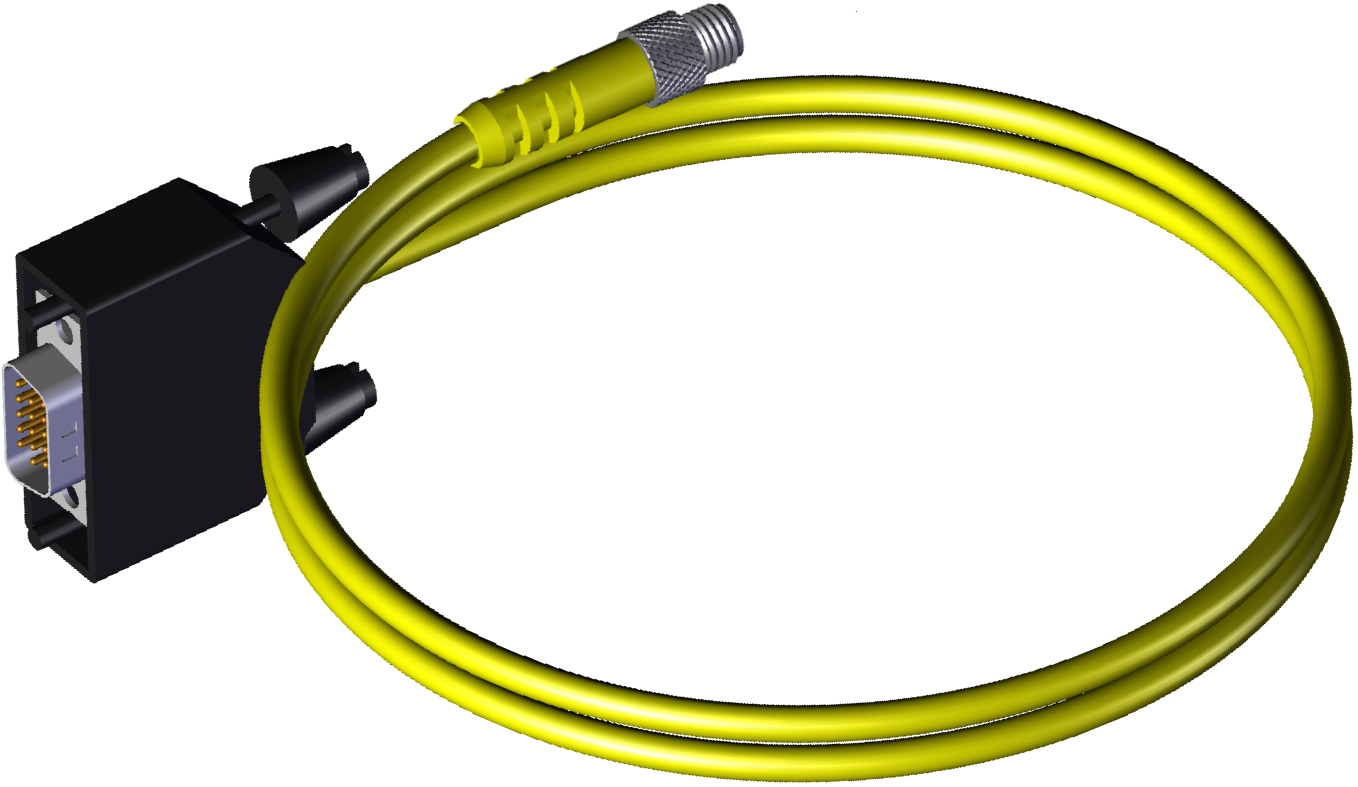

I/O Module Cable M12-8 to DB15

 CCB-M8DSIO-xx (xx specifies length: 0.7m, 2m, 5m, 10m, 15m)
