C-Mount Standard and Extended Covers
Note:
-
When using a C-Mount lens, the following restrictions apply:
- Maximum thread length is 5.25mm.
- The C-Mount lens threads and body cannot protrude more than 6.5mm in length into the vision system when screwed in unless the diameter of the back lens is smaller than 14.75mm. If the C-Mount lens threads and body protrude more than 6.5mm, you can add a spacer between the lens and vision system. However, the spacer decreases the working distance.
- Refer to C-Mount Lens Clearance Dimensions for more information.
CAUTION: If installing a C-Mount cover, the illumination accessory (ISLM-7000-xxx) PCB should not be installed to the vision system. Refer to Remove the Illumination Accessory PCB for steps to safely remove the PCB and avoid damage to the vision system.
| Accessory | Part Number | Accessory Image | ||
|---|---|---|---|---|
|

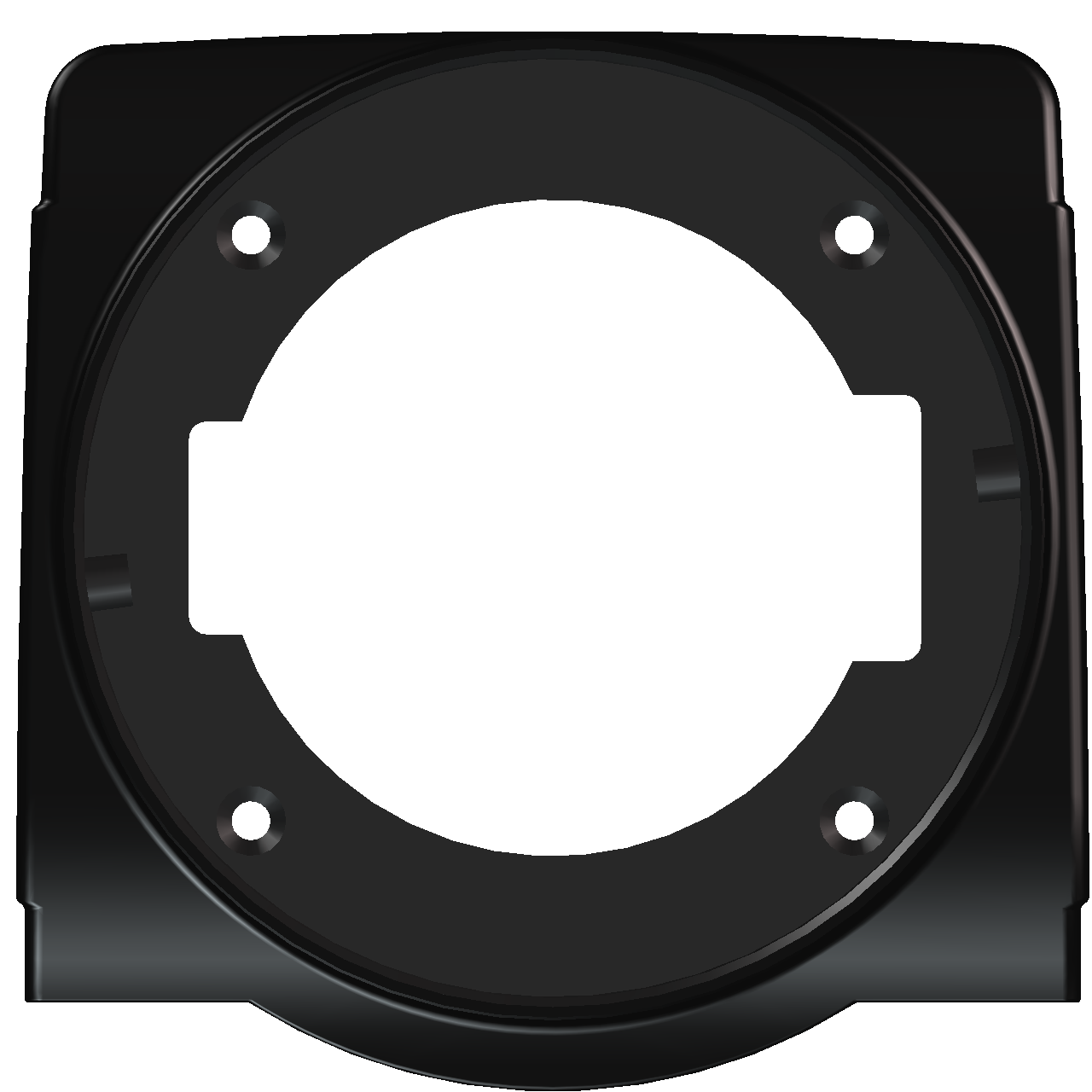

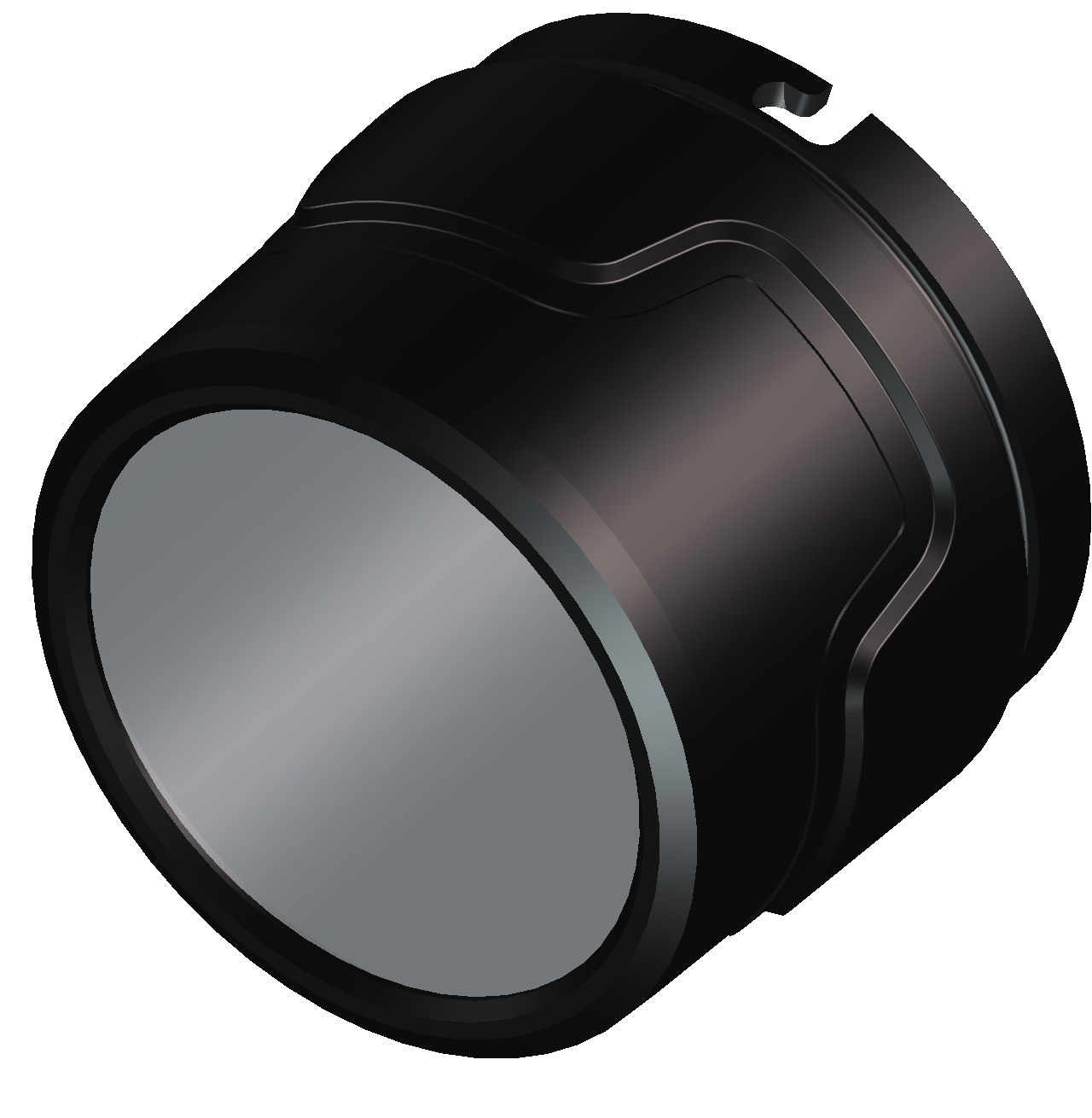

Standard plastic C-Mount cover and lens cover adapter. Note: If using the COV-7000-CMNT cover, the maximum lens length is 41mm, the maximum lens body diameter is 36.5mm and the maximum diameter including locking screws is 47mm.
|
COV‑7000‑CMNT |
|
||
|
Standard extended plastic C-Mount cover and lens cover adapter. Note: If using the COV-7000-CMNT-EX cover, the maximum lens length is 62mm, the maximum lens body diameter is 36.5mm and the maximum diameter including locking screws is 46.5mm.
|
COV‑7000‑CMNT‑EX |
|
||
|

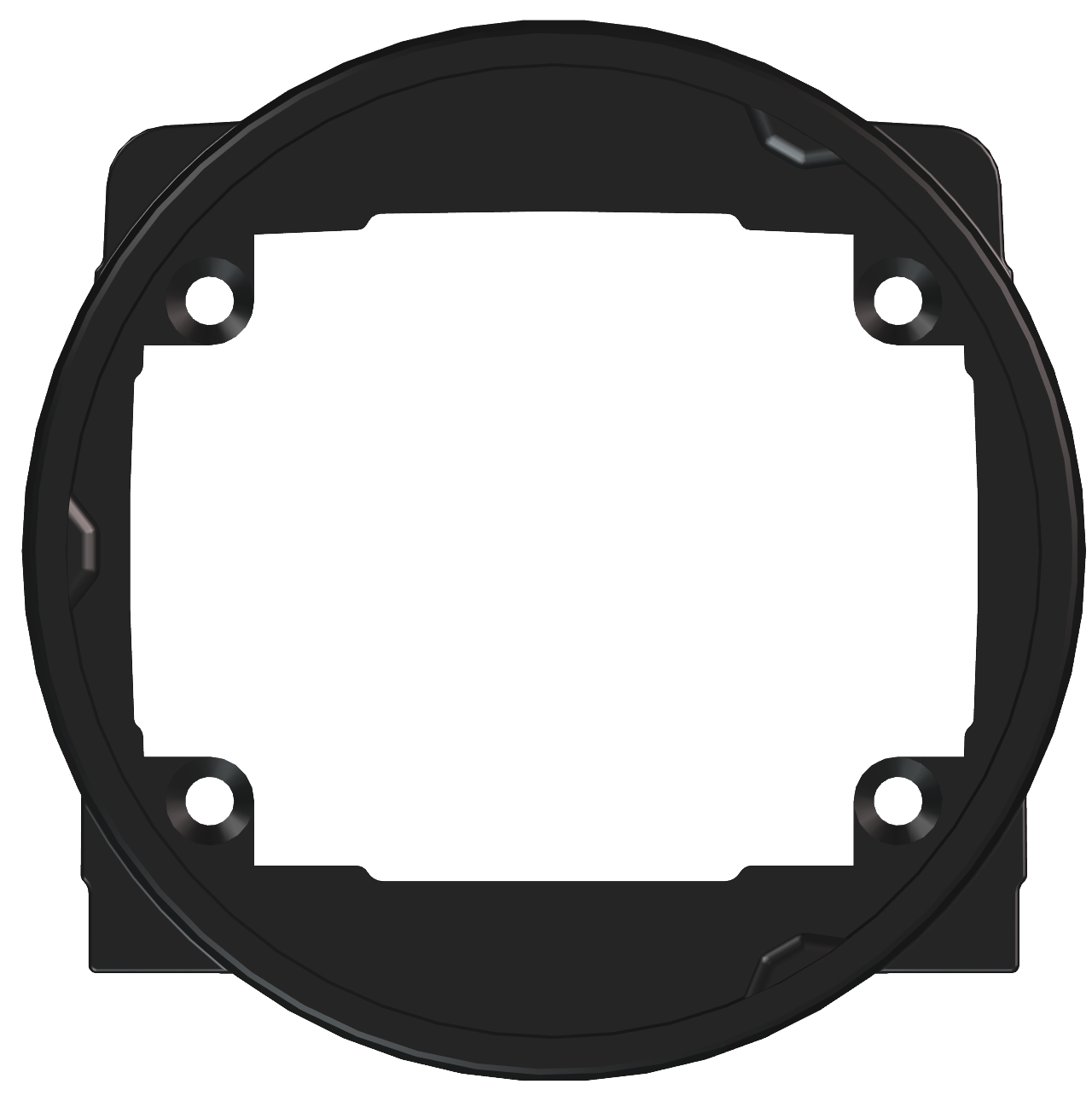

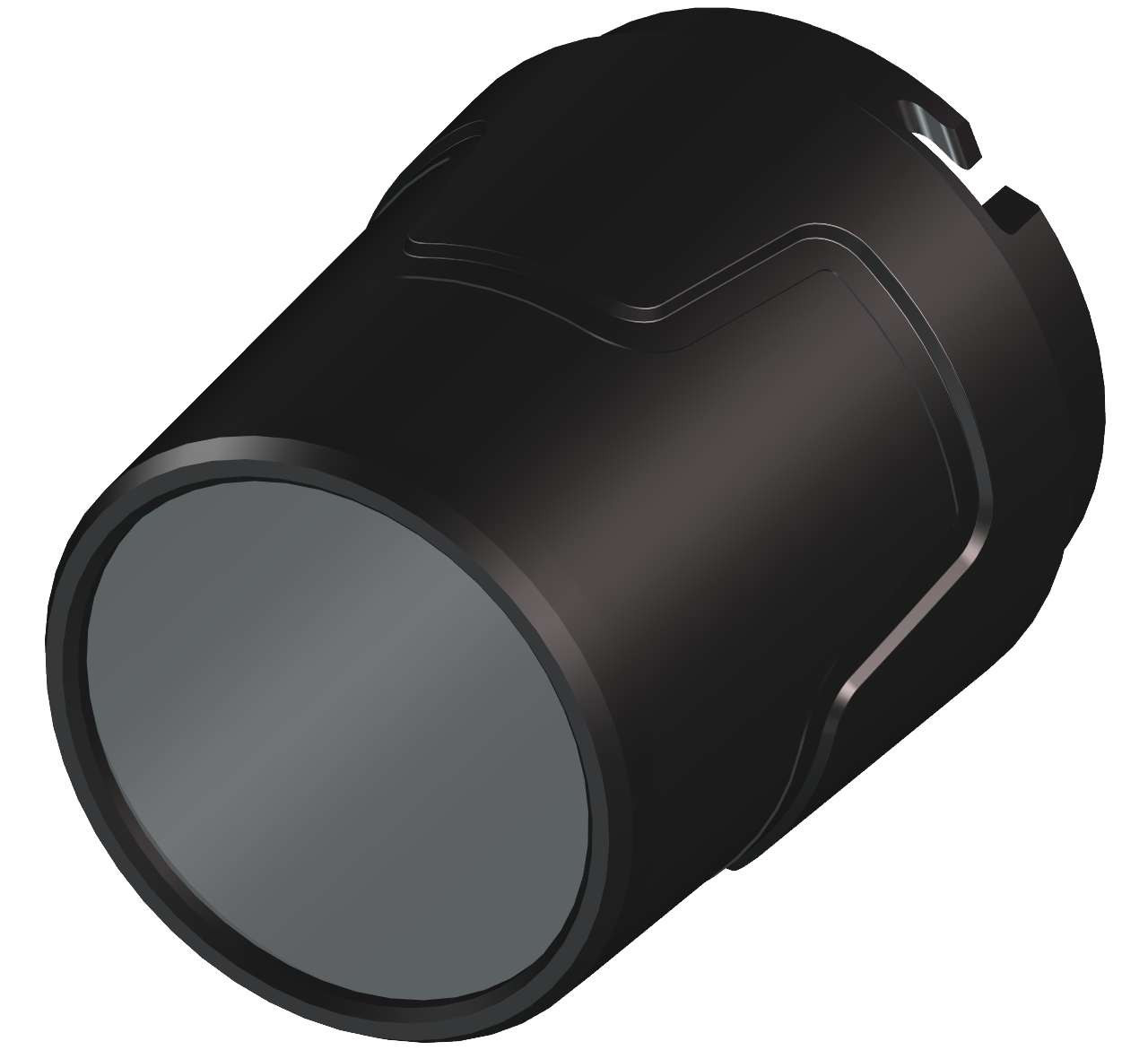

Wide plastic C-Mount cover and lens cover adapter. This accessory is only supported with the In-Sight 7802P, 7902P and 7905 vision system. Note: If using the COV-7000-CMNT-LG cover, the maximum lens length is 77mm, the maximum lens body diameter is 55mm and the maximum diameter including locking screws is 55mm.
|
COV‑7000‑CMNT‑LG |
|
||
|

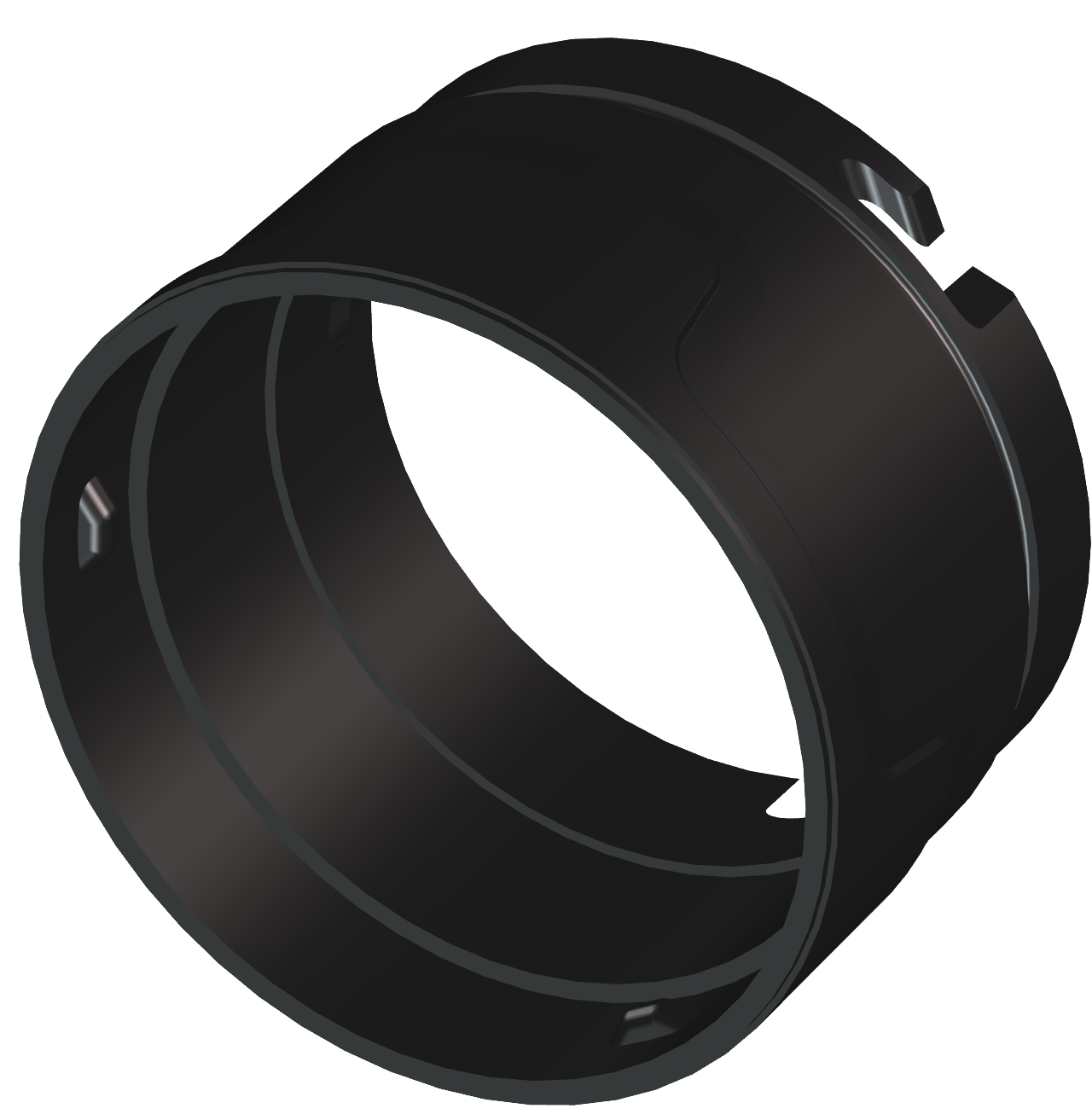

Wide plastic 30mm C-Mount extender, compatible with the COV‑7000‑CMNT‑LG cover. This accessory is only supported with the In-Sight 7802P, 7902P and 7905 vision system. |
COV‑7000‑CMNT‑LGX |
|
||
|

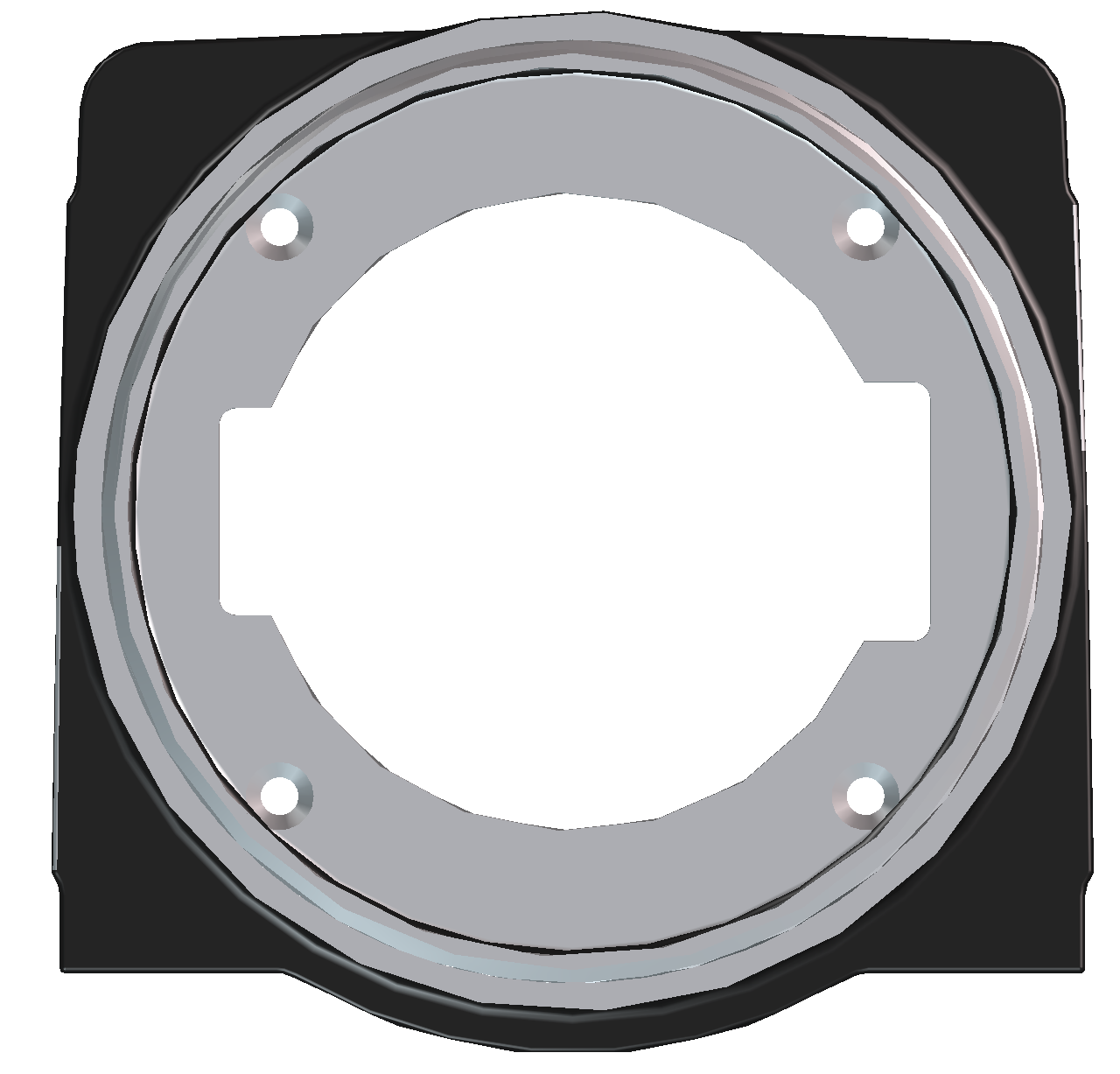

Metal C-Mount lens cover adapter. Compatible with the following In‑Sight 5000 series metal C-Mount lens covers:
Note: If using the ADPT-MTL-M55 lens cover adapter, the maximum lens diameter is 36.5mm. Locking screws cannot protrude more than 7.0mm at the 36.5mm diameter. If they do, the lens diameter must be reduced, so the maximum diameter including locking screws is less than 50.5mm.
|
ADPT-MTL-M55 |
|
