Breakout Cable Specifications

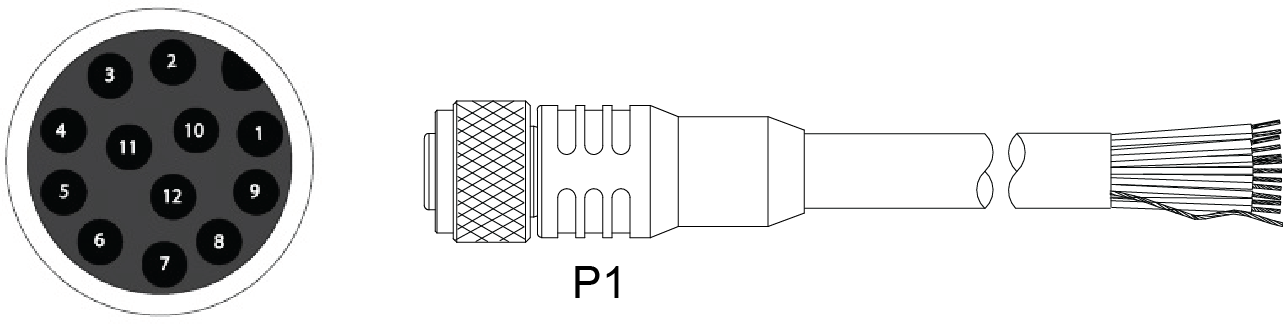

The Breakout cable provides connections to an external power supply1, the acquisition trigger input, a general-purpose input, high-speed outputs, and RS-232 serial communications. The Breakout cable is not terminated.
|
|
|||
|---|---|---|---|
| Pin# | Signal Name: 24VDC Model | Signal Name: PoE Model | Wire Color |
| 1 | HSOUT 2 | HSOUT 2 | Yellow |
| 2 | RS-232 Tx2 | RS-232 Tx2 | White/Yellow |
| 3 | RS-232 Rx2 | RS-232 Rx2 | Brown |
| 4 | HSOUT 3 | HSOUT 3 | White/Brown |
| 5 | IN 0 | IN 0 | Violet |
| 6 | INPUT COMMON | INPUT COMMON | White/Violet |
| 7 | +24VDC | N.C. | Red |
| 8 | GND | RS-232 GND | Black |
| 9 | OUTPUT COMMON | OUTPUT COMMON | Green |
| 10 | TRIGGER | TRIGGER | Orange |
| 11 | HSOUT 0 | HSOUT 0 | Blue |
| 12 | HSOUT 1 | HSOUT 1 | Grey |
Note:
- For RS-232, use the Power Supply return path for ground.
- Cables are sold separately.
- You can clip unused wires short or use a tie made of non-conductive material to tie them back. Keep bare wires separated from the +24VDC wire.
