C-Mount Illumination Accessories
- The vision system supports connecting an integrated illumination accessory to the vision system's faceplate and connecting an external light to the vision system's LIGHT connector, but does not support using both lighting devices simultaneously.
-
When using a C-Mount lens, the following restrictions apply:
- Maximum thread length is 5.25mm.
- The C-Mount lens threads and body cannot protrude more than 6.5mm in length into the vision system when screwed in unless the diameter of the back lens is smaller than 14.75mm. If the C-Mount lens threads and body protrude more than 6.5mm, you can add a spacer between the lens and vision system. However, the spacer decreases the working distance.
| Accessory | Part Number | Accessory Image | ||
|---|---|---|---|---|

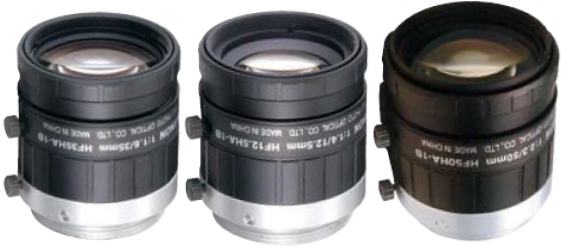

| 9mm F1.4 aperture lens | LFC‑9F1B |
|
||
| 12.5mm F1.4 aperture lens | LFC‑12.5F | |||
| 16mm F1.4 aperture lens | LFC‑16F1 | |||
| 25mm F1.4 aperture lens | LFC-25F1 | |||
| 35mm F1.6 aperture lens | LFC-35F1 | |||
|
50mm F1.4 aperture lens |
LFC-50F1 | |||

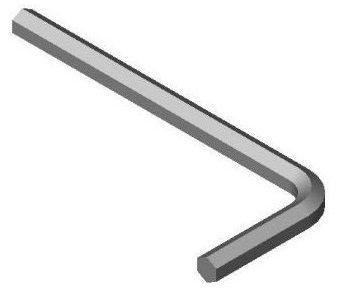

| Illumination accessory with white LED ring light, cover and hex wrench | ISLM‑7000‑WHI |
|
||
| Illumination accessory with cover and hex wrench. Does not include an LED ring light. | ISLM‑7000‑00 |
|
||
| Diffuse cover | COV‑7000‑DF |
|
||
| Clear cover | COV‑7000‑CLR |
|
||
|

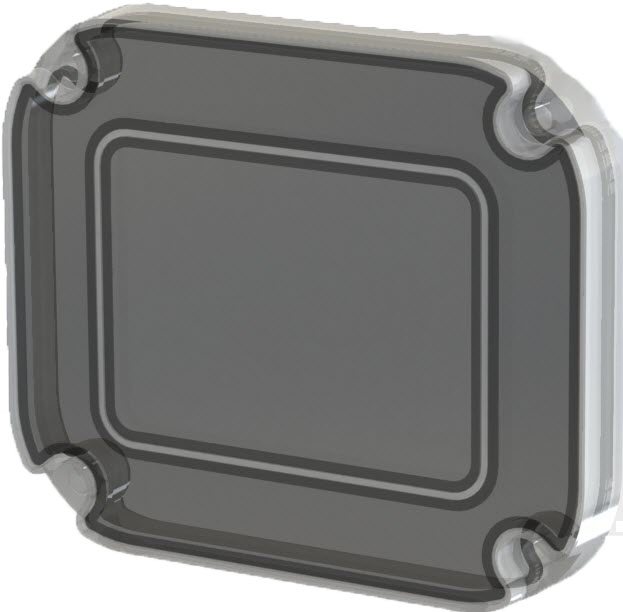

Polarized cover Note: When installing the cover, pull the red tab to remove the protective film.
|
COV‑7000‑PL‑FULL |
|
||
| Red LED ring light | ISL‑7000‑RD |
|
||
| IR LED ring light | ISL‑7000‑IR | |||
| Blue LED ring light | ISL‑7000‑BL | |||
| White LED ring light Note: For color vision systems, the white LED ring light should be used. |
ISL‑7000‑WHI | |||
| Red bandpass filter used with the ISL‑7000‑RD LED ring light | ISF‑7000‑RDBP605 |
|
||
| IR bandpass filter used with the ISL‑7000‑IR LED ring light | ISF‑7000‑IRBP815 | |||
| Blue bandpass filter used with the ISL‑7000‑BL LED ring light | ISF‑7000‑BLBP435 |
