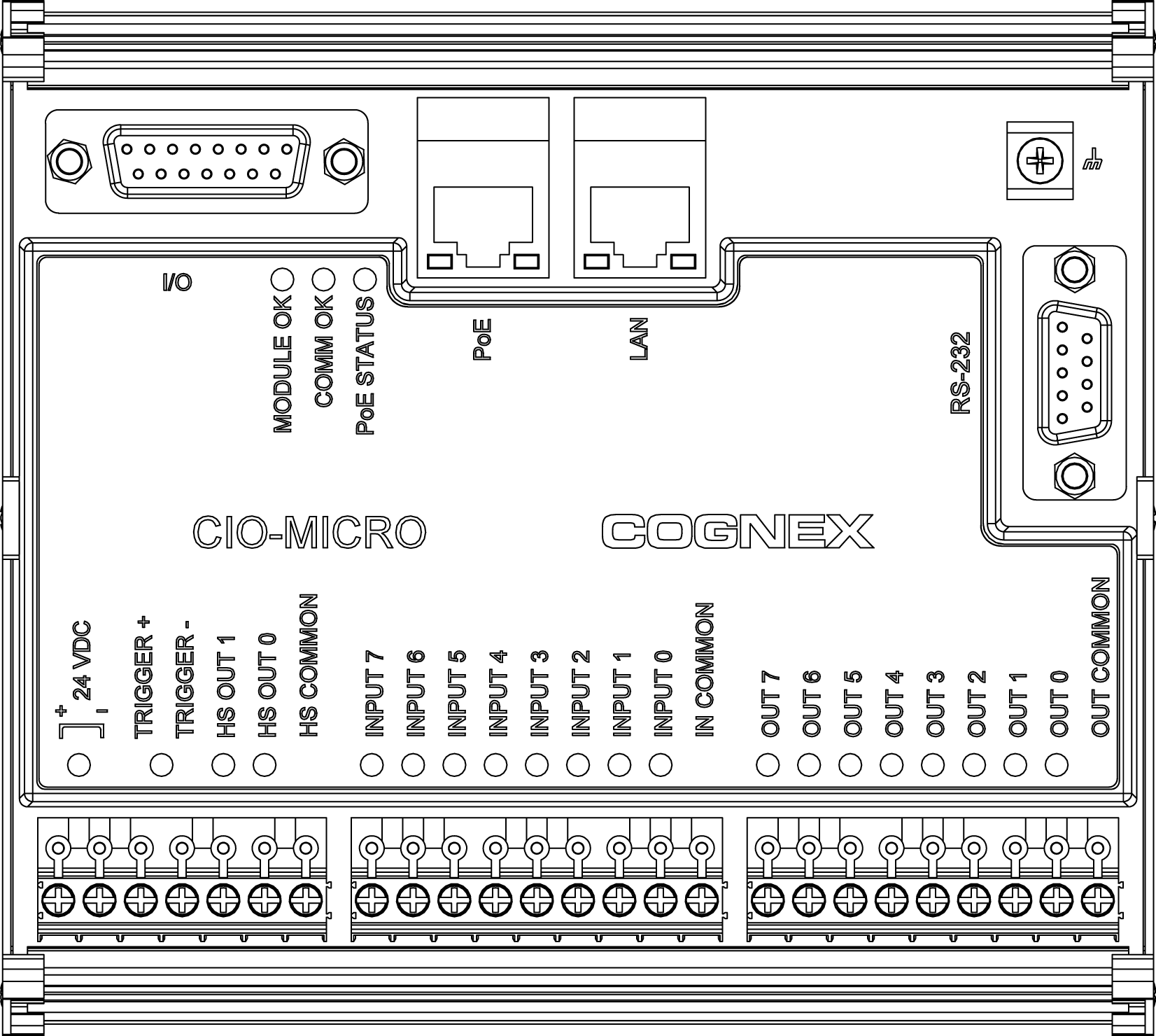

CIO-MICRO I/O Module
The CIO-MICRO I/O module provides access to power, serial, trigger, high-speed outputs and additional discrete inputs and discrete outputs.
|
|
|---|---|
| Description | Part Number |
| CIO-MICRO I/O Module | CIO-MICRO-00 |
Note:
-
The CIO-MICRO I/O module supports In-Sight 8000 series vision systems with firmware version 5.3.0 and higher.
- The CIO-MICRO I/O module does not support 1000 BaseT pass-through operation. If 1000 BaseT operation is required, you must connect an RJ-45 LAN cable from a Gigabit PoE switch to the I/O module’s LAN port and connect the vision system’s Ethernet cable to the Gigabit PoE switch.
