In-Sight 7000 Series: I/O Module Sources Current

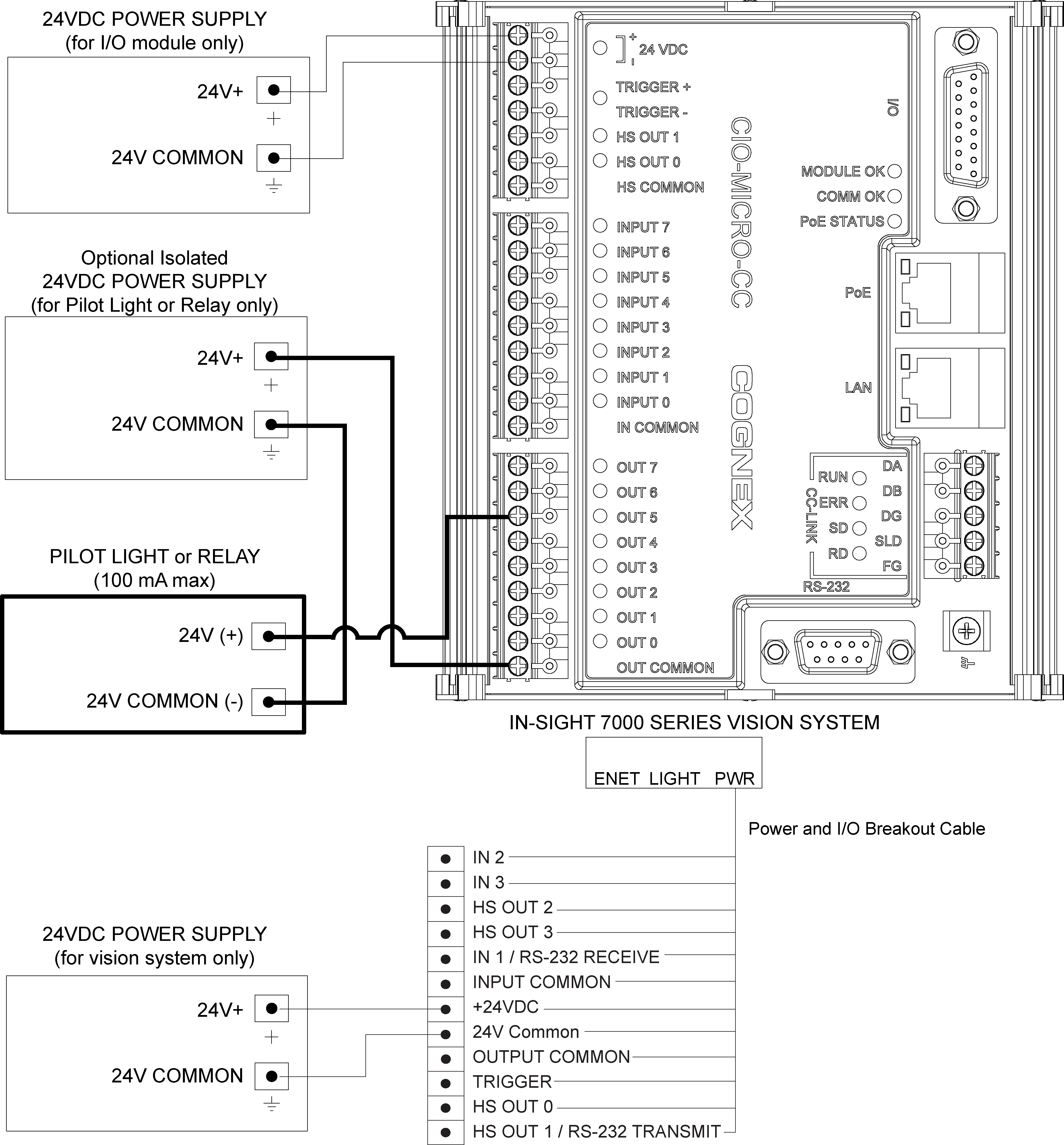

The pilot light or relay is energized by a 24VDC control signal switched by the I/O module.
Note:
- The power supplies for the vision system and I/O module can be combined into a single power supply, provided the single power supply meets the capacity requirements of the two devices.
- The vision system must be Online for the discrete inputs and outputs to function.
