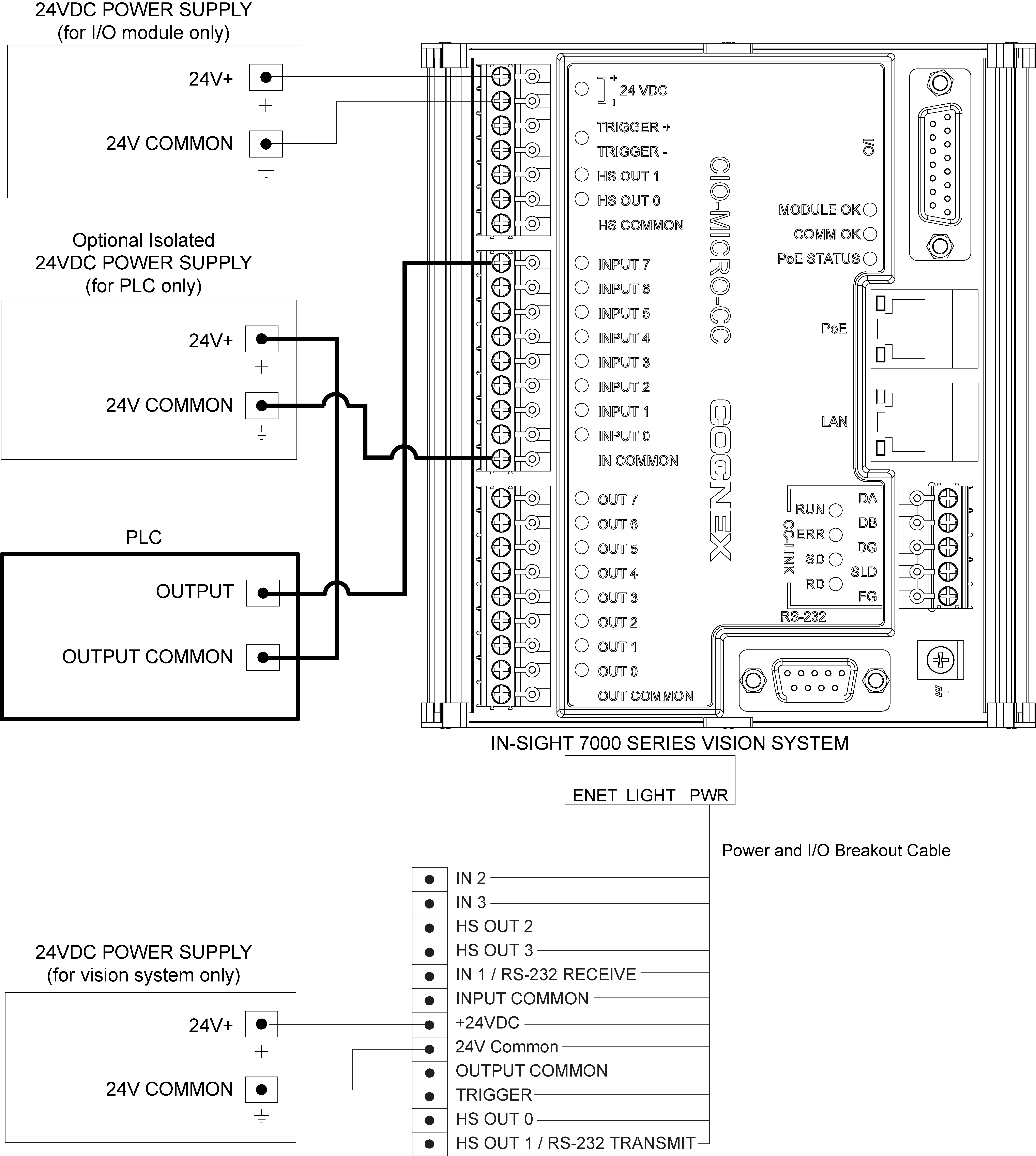

In-Sight 7000 Series: PLC Sources Current
The In-Sight 7000 series vision system's I/O input is energized by a 24VDC control signal from a PLC.
Note:
- The power supplies for the vision system and I/O module can be combined into a single power supply, provided the single power supply meets the capacity requirements of the two devices.
- The vision system must be Online for the discrete inputs and outputs to function.
